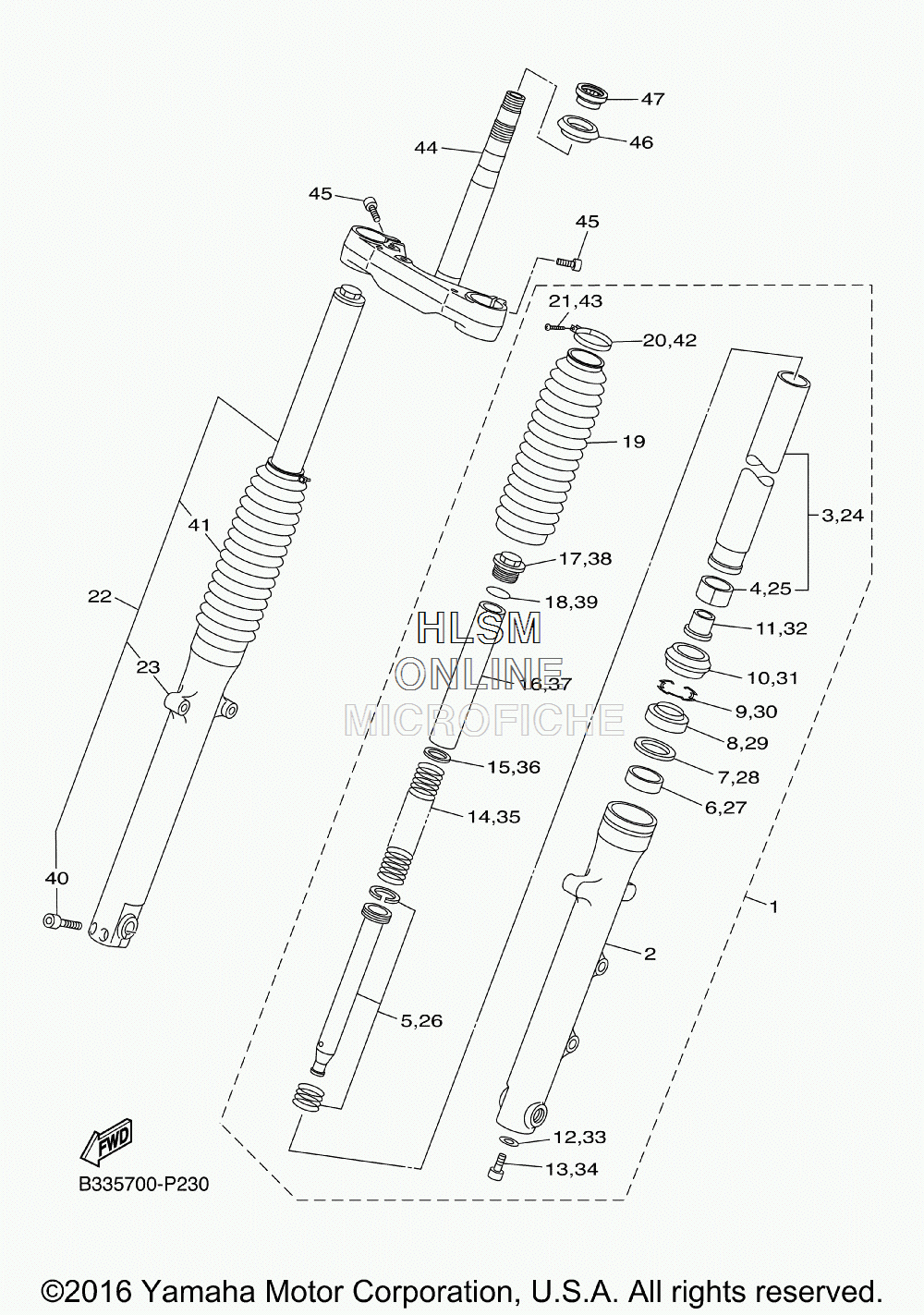

SUSPENSION - FRONT FORK для Yamaha SCR950 - 2017 года выпуска`
-
№АртикулНазвание
-
1BL3-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
2B33-23126-00-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
3BL3-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
45BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
5BL3-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
64FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
84EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
926H-23156-00-00 ...RING, SNAP...RING, SNAP
-
104EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
114YR-23173-00-00 ...SPINDLE, TAPER (KYB)...SPINDLE, TAPER (KYB)
-
12509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
13278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
14B33-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
154DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
1622B-23118-20-00 ...SPACER...SPACER
-
171D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
181TP-23188-00-00 ...O-RING...O-RING
-
19B33-23191-00-00 ...BOOT...BOOT
-
2043M-23192-L0-00 ...BAND...BAND
-
2198507-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
22BL3-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
23B33-23136-00-00 ...TUBE, OUTER 2...TUBE, OUTER 2
-
24BL3-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
255BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
26BL3-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
274FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2836Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
294EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
3026H-23156-00-00 ...RING, SNAP...RING, SNAP
-
314EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
324YR-23173-00-00 ...SPINDLE, TAPER (KYB)...SPINDLE, TAPER (KYB)
-
33509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
34278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
35B33-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
364DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
3722B-23118-20-00 ...SPACER...SPACER
-
381D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
391TP-23188-00-00 ...O-RING...O-RING
-
4091314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
41B33-23191-00-00 ...BOOT...BOOT
-
4243M-23192-L0-00 ...BAND...BAND
-
4398507-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
441TP-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4591314-10020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
463FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
4793399-99932-00 BEARINGBEARING
