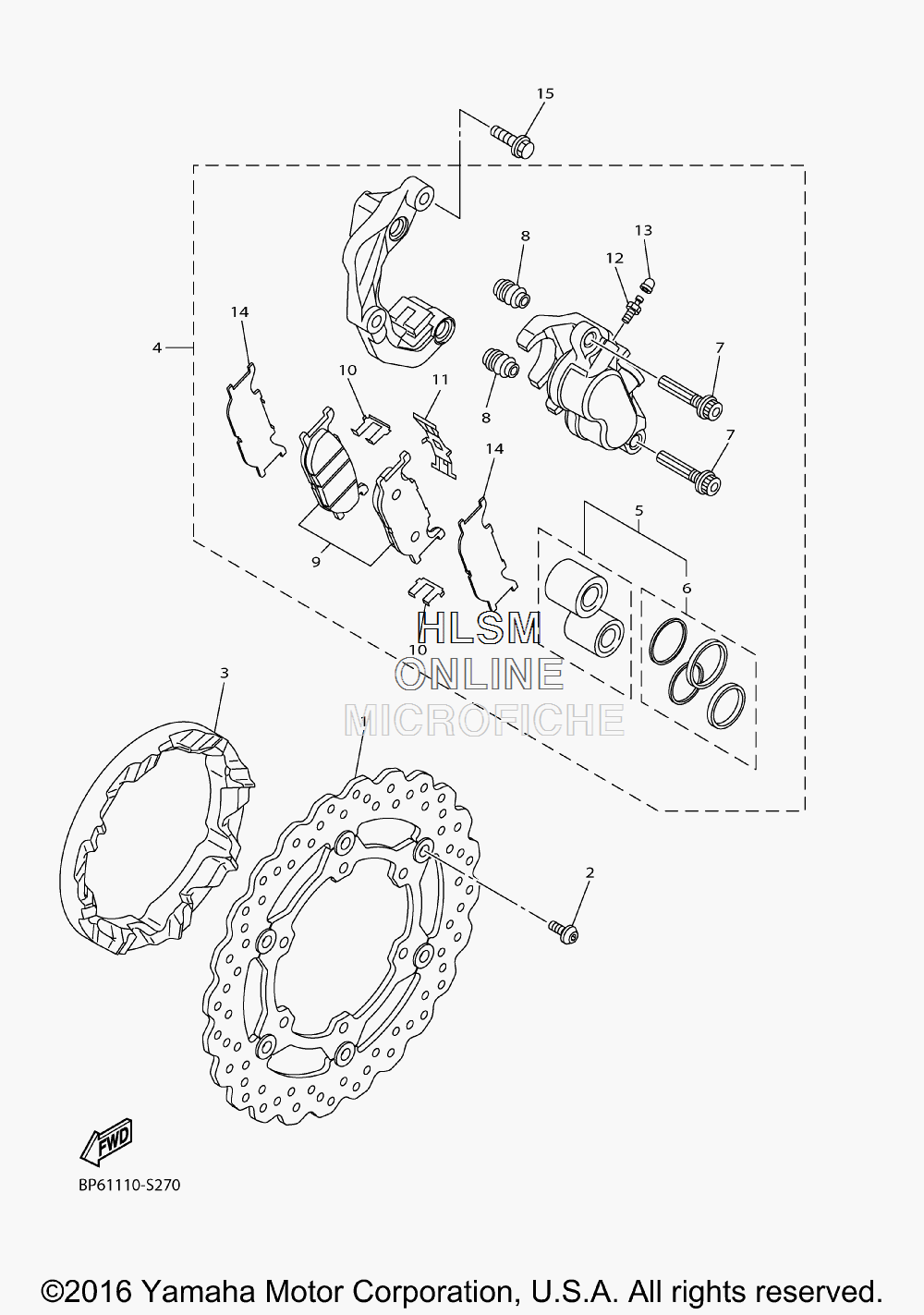

BRAKE - FRONT CALIPER для Yamaha SCR950 - 2017 года выпуска`
-
№АртикулНазвание
-
11TP-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-081F0-00 BOLTBOLT
-
3BP6-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
427D-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
53YX-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
63JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
75JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
84TT-25937-00-00 ...BOOT 2...BOOT 2
-
95S7-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
104BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
113YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1247X-25824-01-00 ...SCREW, BLEED...SCREW, BLEED
-
131D7-25825-00-00 ...CAP...CAP
-
144DN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1590105-10638-00 BOLT, FLANGEBOLT, FLANGE
