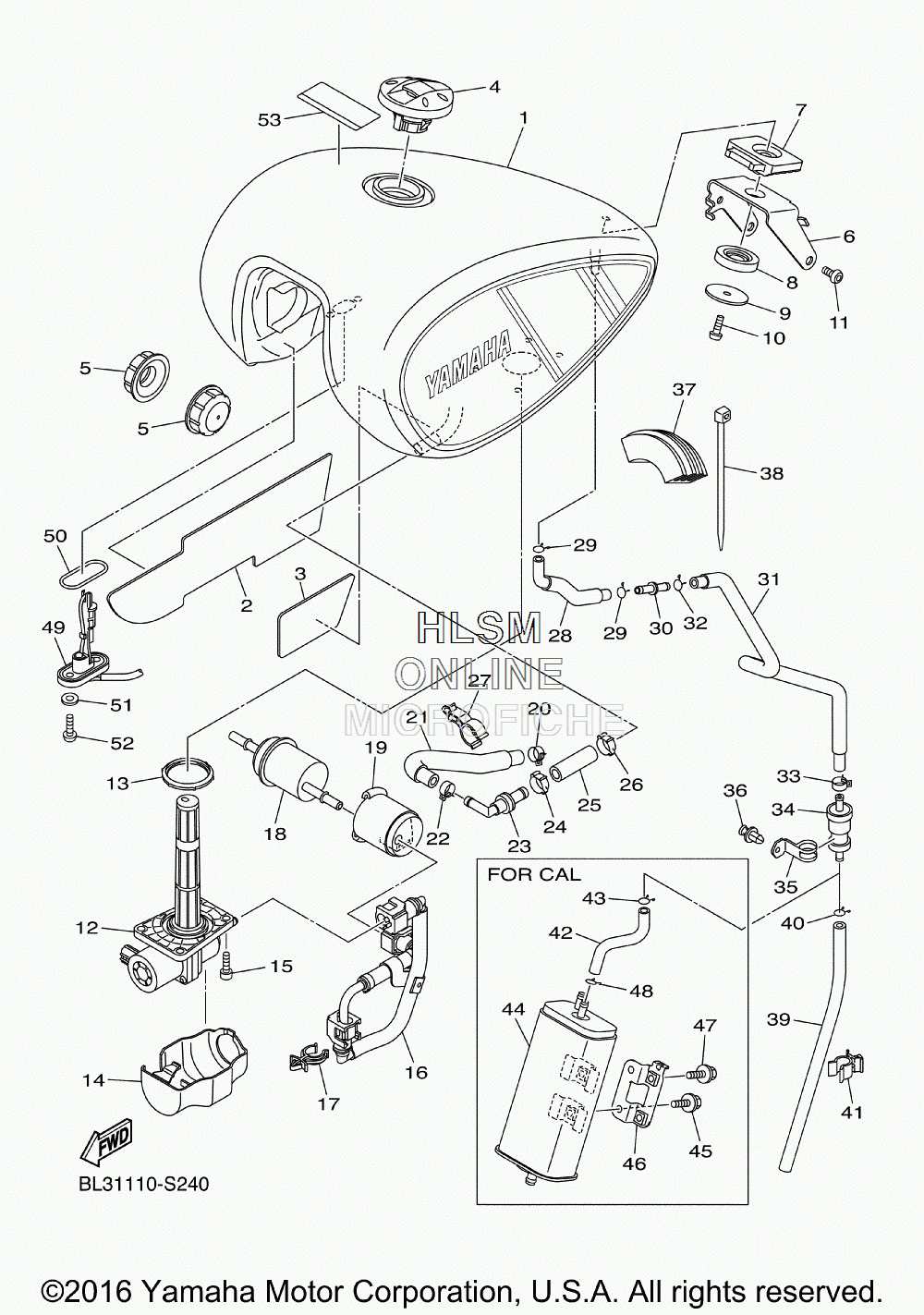

FUEL TANK для Yamaha SCR950 - 2017 года выпуска`
-
№АртикулНазвание
-
1BP6-Y2410-00-01 FUEL TANK COMP. (OPT) (VRC1)FUEL TANK COMP. (OPT) (VRC1)
-
1BP6-Y2410-00-04 FUEL TANK COMP. (OPT) (DBNM8)FUEL TANK COMP. (OPT) (DBNM8)
-
21TP-24141-01-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
3BP6-2476U-00-00 PROTECTOR 1PROTECTOR 1
-
45VK-24602-30-00 CAP ASSYCAP ASSY
-
51TP-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
6BP6-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
71TP-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
84TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
990201-06110-00 WASHER, PLATEWASHER, PLATE
-
1092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1192012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
121TP-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
131TP-24486-00-00 O-RINGO-RING
-
141TP-24452-00-00 COVERCOVER
-
1591312-05016-00 BOLTBOLT
-
161TP-24330-00-00 FUEL PIPE ASSY. 2FUEL PIPE ASSY. 2
-
1790464-16240-00 CLAMPCLAMP
-
181TP-13915-00-00 FILTERFILTER
-
191TP-24398-00-00 BAND 1BAND 1
-
2090467-12003-00 CLIPCLIP
-
211TP-24315-00-00 PIPE 5PIPE 5
-
2290467-13133-00 CLIPCLIP
-
231TP-14860-00-00 CHECK VALVE ASSYCHECK VALVE ASSY
-
2490467-150A6-00 CLIPCLIP
-
251TP-24314-00-00 PIPE 4PIPE 4
-
2690467-150A6-00 CLIPCLIP
-
2790464-17009-00 CLAMPCLAMP
-
281TP-24313-00-00 PIPE 3PIPE 3
-
2990467-09103-00 CLIPCLIP
-
304XY-14568-00-00 JOINTJOINT
-
311TP-24316-00-00 PIPE 6PIPE 6
-
3290467-09103-00 CLIPCLIP
-
3390467-09001-00 CLIPCLIP
-
345PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
351TP-24136-00-00 CLAMP 2CLAMP 2
-
3690269-05005-00 RIVETRIVET
-
37BP6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
3890464-65001-00 CLAMPCLAMP
-
3990445-11730-00 HOSE (L280)HOSE (L280)
-
4090467-09103-00 CLIPCLIP
-
4190464-12015-00 CLAMPCLAMP
-
421TP-2486A-00-00 PIPE 1PIPE 1
-
4390467-09103-00 CLIPCLIP
-
445PX-24170-00-00 CANISTER ASSYCANISTER ASSY
-
4595802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
461TP-2413X-00-00 PLATEPLATE
-
4795827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4890467-09103-00 CLIPCLIP
-
491TP-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
5042X-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
5190202-05193-00 WASHER, PLATEWASHER, PLATE
-
5290149-06108-00 SCREWSCREW
-
531TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
