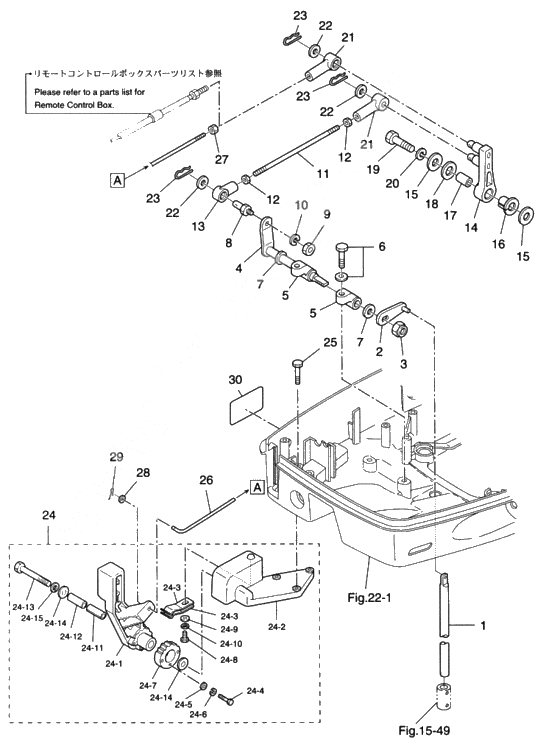

Shift для Tohatsu M70C - 2003 года выпуска`
-
№АртикулНазвание
-
1353-66215-1 New partNew part
-
23T9-66110-0 Shift Rod LeverShift Rod Lever
-
3930403-1000 Nylon NutNylon Nut
-
43B7-66225-0 Shift lever shaft(for p type)Shift lever shaft(for p type)
-
5353-66145-1 Holder shift lever shaftHolder shift lever shaft
-
6910103-5825 BoltBolt
-
7332-61315-0 WasherWasher
-
8353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
9930113-0600 NutNut
-
10941303-0600 New partNew part
-
113F3-05222-0 Rod 5-70Rod 5-70
-
123B2-83865-0 Nut(No,10-32VNF)Nut(No,10-32VNF)
-
133A3-83715-0 Cable JointCable Joint
-
143B7-66122-0 Shift ArmShift Arm
-
153B7-63730-0 WasherWasher
-
163B7-63713-0 BushingBushing
-
173B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
183B7-63731-0 WasherWasher
-
19910103-0835 Bolt
OR 910103-6835Bolt
OR 910103-6835 -
20941303-0800 Spring Washer
OR 910103-6835Spring Washer
OR 910103-6835 -
213B7-83715-0 Cable JointCable Joint
-
22353-83719-0 WasherWasher
-
23951603-0800 R-PinR-Pin
-
243B7S80403-0 Shift lever ass'y
FOR F TYPEShift lever ass'y
FOR F TYPE -
24-13B7S66110-0 Shift Lever
FOR F TYPEShift Lever
FOR F TYPE -
24-10941303-0600 New part
FOR F TYPENew part
FOR F TYPE -
24-11346-62437-0 Bushing
FOR F TYPEBushing
FOR F TYPE -
24-123B7-66124-0 Collar, 8.1-10.5-31.7
FOR F TYPECollar, 8.1-10.5-31.7
FOR F TYPE -
24-13910103-0855 Bolt
FOR F TYPEBolt
FOR F TYPE -
24-14940113-0800 Washer
FOR F TYPEWasher
FOR F TYPE -
24-15941303-0800 Spring Washer
FOR F TYPESpring Washer
FOR F TYPE -
24-23B7S66115-0 Bracket shift lever
FOR F TYPEBracket shift lever
FOR F TYPE -
24-33B2-66113-0 Stopper, shift lever
FOR F TYPEStopper, shift lever
FOR F TYPE -
24-4910103-0420 Bolt
FOR F TYPEBolt
FOR F TYPE -
24-5940103-0400 Washer
FOR F TYPEWasher
FOR F TYPE -
24-6941303-0400 Spring Washer
FOR F TYPESpring Washer
FOR F TYPE -
24-73B7-66121-0 Stopper plate, shift lever
FOR F TYPEStopper plate, shift lever
FOR F TYPE -
24-8910113-0616 Bolt
FOR F TYPEBolt
FOR F TYPE -
24-9940113-0600 Washer
FOR F TYPEWasher
FOR F TYPE -
25910113-5620 Bolt
FOR F TYPEBolt
FOR F TYPE -
263F3-66134-0 Rod shift lever stopper
FOR F TYPERod shift lever stopper
FOR F TYPE -
273B2-83865-0 Nut(No,10-32VNF)
FOR F TYPENut(No,10-32VNF)
FOR F TYPE -
28940103-0500 Washer
FOR F TYPEWasher
FOR F TYPE -
29951503-0212 Split Pin
FOR F TYPESplit Pin
FOR F TYPE -
30353-72013-0 Label clutch
FOR F TYPELabel clutch
FOR F TYPE
