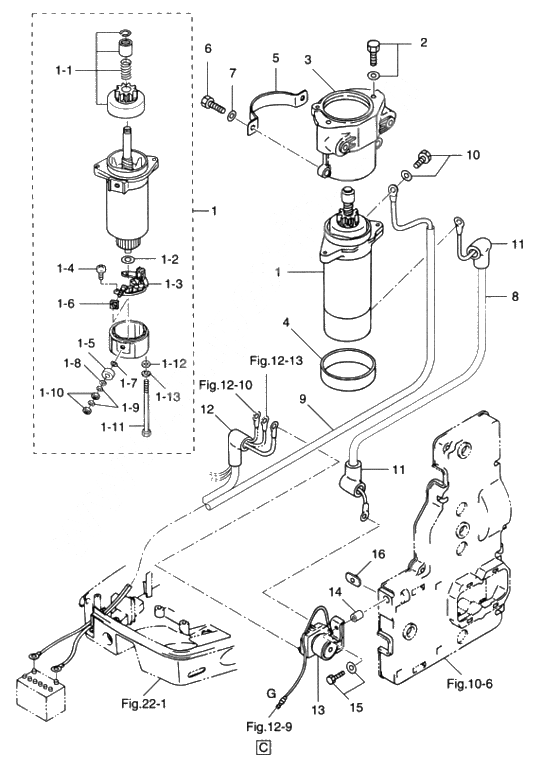

Electric parts (starter motor) для Tohatsu M70C - 2003 года выпуска
-
№АртикулНазвание
-
13C8-76010-1 Starter Motor Ass'yStarter Motor Ass'y
-
1-13C8-76015-0 Pinion Ass'yPinion Ass'y
-
1-10930203-0600 NutNut
-
1-113C8-75019-0 BoltBolt
-
1-12940221-0500 WasherWasher
-
1-13941321-0500 Spring WasherSpring Washer
-
1-23C8-75015-0 WasherWasher
-
1-33C8-75014-0 Brush Holder Ass'yBrush Holder Ass'y
-
1-4921521-6408 Stud BoltStud Bolt
-
1-53C8-75016-0 BushingBushing
-
1-63C8-75017-0 BushingBushing
-
1-73C8-75018-0 O-RingO-Ring
-
1-8940103-0600 WasherWasher
-
1-9941303-0600 New partNew part
-
2910103-5825 BoltBolt
-
33F3B05101-1 Bracket starter motorBracket starter motor
-
43C8-76007-0 Rubber Starter MotorRubber Starter Motor
-
53F3-76009-0 Band Starter MotorBand Starter Motor
-
6910113-0830 Bolt
OR 910103-0830Bolt
OR 910103-0830 -
7941303-0800 Spring WasherSpring Washer
-
8334-76141-0 STARTER CORD
L=150STARTER CORD
L=150 -
93B7-76120-0 Battery Cord
L=3000Battery Cord
L=3000 -
10910103-6612 BoltBolt
-
113A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
123B7-76145-0 Terminal CapTerminal Cap
-
13346-76040-0 Starter SolenoidStarter Solenoid
-
14346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
15910103-6630 BoltBolt
-
163F3-76042-1 NutNut
