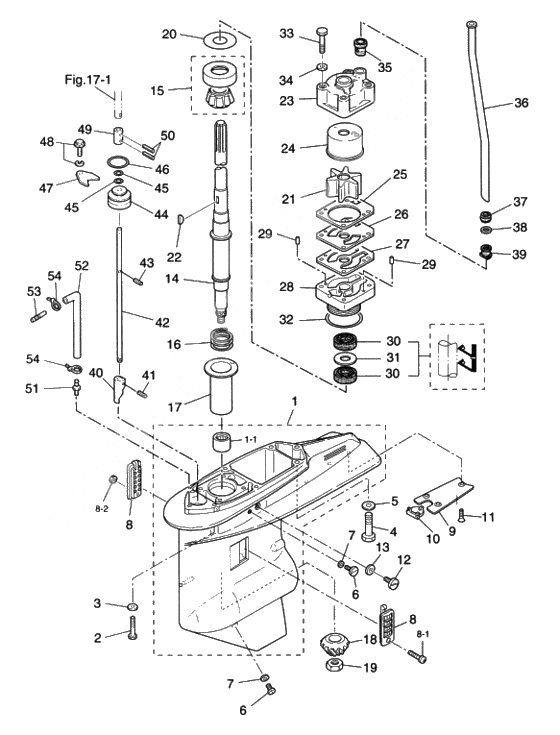

Gear case (drive shaft) для Tohatsu M70C - 2003 года выпуска`
-
№АртикулНазвание
-
13B7S60000-3 Gear case ass'yGear case ass'y
-
1-13B7-60102-0 Needle bearing, 25.4-33.3-31.8Needle bearing, 25.4-33.3-31.8
-
2916189-0835 Bolt 8-35Bolt 8-35
-
3940213-0800 WasherWasher
-
43B7-60001-2 Bolt, 10-40Bolt, 10-40
-
5940213-1000 WasherWasher
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83C7-60235-1 Water Strainer SetWater Strainer Set
-
8-1921503-0445 Stud BoltStud Bolt
-
8-2930403-0400 Nylon NutNylon Nut
-
93B7-60012-1 Plate, Gear CasePlate, Gear Case
-
103B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
11921613-0614 Stud BoltStud Bolt
-
123B7-60015-1 Water PlugWater Plug
-
133B7-60016-0 O-RingO-Ring
-
143J5-64302-0 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
143J5-64303-0 Drive Shaft UL
FOR TRANSOM ULDrive Shaft UL
FOR TRANSOM UL -
153B7-60213-0 Taper roller bearing, 32305Taper roller bearing, 32305
-
16353-64327-0 Пружина валаПружина вала
-
173B7-64328-0 Guide, drive shaftGuide, drive shaft
-
183J5-64020-0 Bevel Gear BBevel Gear B
-
193B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
20353-64014-0 Shim, 52-60.5-0.3Shim, 52-60.5-0.3
-
20353-64015-0 Shim,52-60.5-0.15Shim,52-60.5-0.15
-
20353-64016-0 Shim,52-60.5-0.1Shim,52-60.5-0.1
-
213B7-65021-2 Крыльчатка водной помпыКрыльчатка водной помпы
-
223B7-65022-0 Key, water pump impellerKey, water pump impeller
-
233B7-65016-0 Upper pump case ass'yUpper pump case ass'y
-
243B7-65011-0 New partNew part
-
253B7-65018-0 Прокладка насосаПрокладка насоса
-
263F3-65025-1 Guide Plate Water PumpGuide Plate Water Pump
-
273B7-65029-0 Gasket, guide plateGasket, guide plate
-
283J5-65017-1 Pump Case LowerPump Case Lower
-
29334-65012-0 СтопорСтопор
-
303C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
31346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
323B7-65015-0 O-RingO-Ring
-
33916113-0880 BoltBolt
-
34940113-0800 WasherWasher
-
353B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
363F3-65110-0 Water Pipe L
FOR TRANSOM LWater Pipe L
FOR TRANSOM L -
363F3-65120-0 Water pipe xl
FOR TRANSOM ULWater pipe xl
FOR TRANSOM UL -
37345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
38345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
39346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
403B7-66011-1 Clutch CamClutch Cam
-
41951403-3516 New partNew part
-
423B7-66013-1 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
423B7-66014-1 Cam Rod UL
FOR TRANSOM ULCam Rod UL
FOR TRANSOM UL -
43951403-3510 New partNew part
-
443B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
45345-66021-0 O-RingO-Ring
-
463B7-66023-0 O-RingO-Ring
-
47353-66024-0 StopperStopper
-
48910103-6612 BoltBolt
-
49353-66241-1 New partNew part
-
50951403-3516 New partNew part
-
513C7-60017-0 Nipple 6-1/8Nipple 6-1/8
-
5298AL-4-0800 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
5298AL-4-0920 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
533C7-60018-0 ЗолотникЗолотник
-
54353-84398-0 Band Lead WireBand Lead Wire
