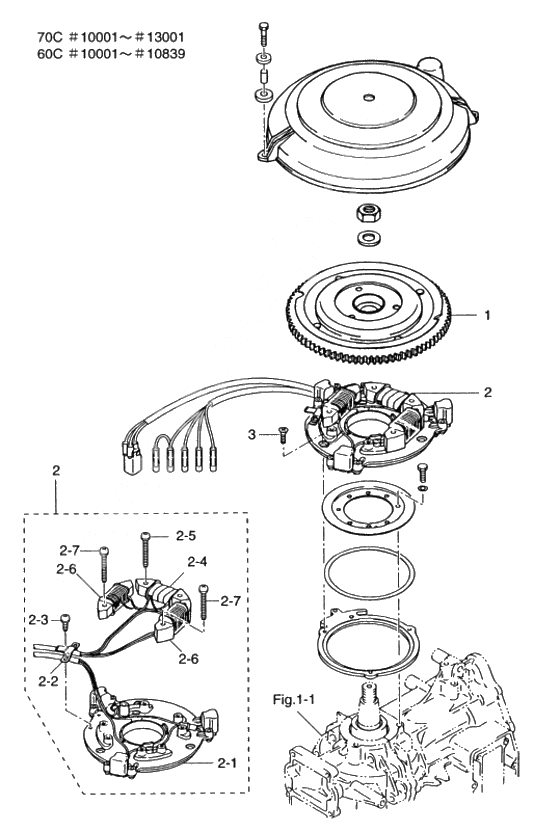

Magneto (old) для Tohatsu M70C - 2003 года выпуска
-
№АртикулНазвание
-
13F3-06091-2 Flywheel
70C #10001~13001 / 60C #10001~10839Flywheel
70C #10001~13001 / 60C #10001~10839 -
23F3-06002-2 Coil plate ass'y
70C #10001~13001 / 60C #10001~10839Coil plate ass'y
70C #10001~13001 / 60C #10001~10839 -
2-13F3-06072-1 Plate ass'y
70C #10001~13001 / 60C #10001~10839Plate ass'y
70C #10001~13001 / 60C #10001~10839 -
2-43F3-06020-1 Exciter coil
70C #10001~13001 / 60C #10001~10839Exciter coil
70C #10001~13001 / 60C #10001~10839 -
2-53F3-06037-0 Stud Bolt
70C #10001~13001 / 60C #10001~10839Stud Bolt
70C #10001~13001 / 60C #10001~10839 -
2-63F3-06026-1 Alternator set
70C #10001~13001 / 60C #10001~10839Alternator set
70C #10001~13001 / 60C #10001~10839 -
2-73F3-06039-1 Stud Bolt
70C #10001~13001 / 60C #10001~10839Stud Bolt
70C #10001~13001 / 60C #10001~10839 -
3921603-0512 Stud Bolt
70C #10001~13001 / 60C #10001~10839Stud Bolt
70C #10001~13001 / 60C #10001~10839
