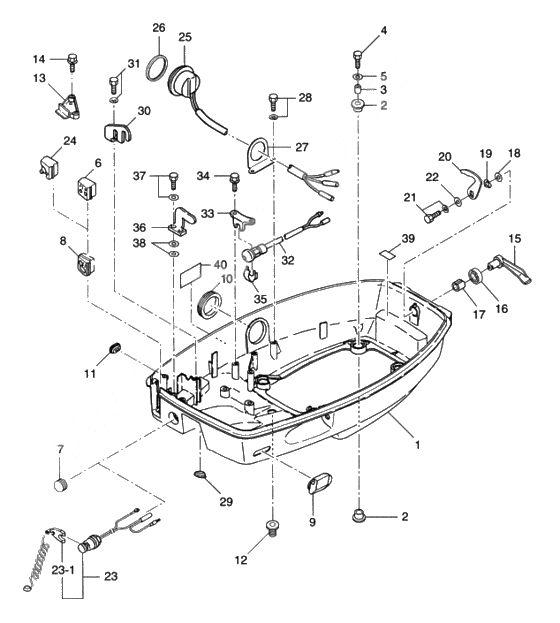

Lower motor cover для Tohatsu M70C - 2003 года выпуска
-
№АртикулНазвание
-
13F3S67100-1 Lower motor coverLower motor cover
-
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
4910113-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63F3-83732-0 Grommet Remote Control Cable
FOR P TYPEGrommet Remote Control Cable
FOR P TYPE -
7345-67117-0 New part
FOR P TYPENew part
FOR P TYPE -
83F3-76116-0 Grommet CordGrommet Cord
-
93B7-77156-0 GrommetGrommet
-
103F3-72618-0 Grommet Power Trim & Tilt SwitchGrommet Power Trim & Tilt Switch
-
113B2-63624-0 GrommetGrommet
-
12345-66226-0 Grommet, 17-3Grommet, 17-3
-
14910103-7625 BoltBolt
-
153C8S67141-0 Hook leverHook lever
-
16338-67147-0 New partNew part
-
17369-67105-0 BushingBushing
-
183C8-67146-0 WasherWasher
-
19941403-1400 New partNew part
-
203C8-67142-1 Cover HookCover Hook
-
21910103-6612 BoltBolt
-
223R0-66308-0 WasherWasher
-
233C8-06820-0 Emergency stop switch d ass'y
FOR F TYPEEmergency stop switch d ass'y
FOR F TYPE -
23-1353-06821-0 Lock, lanyard stop switch
FOR F TYPELock, lanyard stop switch
FOR F TYPE -
243F3-66226-0 Grommet shift rod
FOR F TYPEGrommet shift rod
FOR F TYPE -
253F3-72615-0 Ptt switch ass'y
FOR PTT TYPEPtt switch ass'y
FOR PTT TYPE -
263F3-72616-1 Gasket Ptt Switch Ass'y
FOR PTT TYPEGasket Ptt Switch Ass'y
FOR PTT TYPE -
273F3-72617-1 Bracket,PTT Switch Ass'y
FOR PTT TYPEBracket,PTT Switch Ass'y
FOR PTT TYPE -
28910103-6614 Bolt
FOR PTT TYPEBolt
FOR PTT TYPE -
293B2-63624-0 Grommet
FOR P TYPEGrommet
FOR P TYPE -
30353-83820-0 Cable ClipCable Clip
-
31910103-6616 BoltBolt
-
323C8-76080-0 Neutral Switch Ass'y
FOR F TYPENeutral Switch Ass'y
FOR F TYPE -
333A3-76081-1 Bracket neutral switch
FOR F TYPEBracket neutral switch
FOR F TYPE -
34910103-6616 Bolt
FOR F TYPEBolt
FOR F TYPE -
35398-76083-0 Actuator Neutral Switch
FOR F TYPEActuator Neutral Switch
FOR F TYPE -
36353-67512-0 Cover stay(front)Cover stay(front)
-
37910103-6618 BoltBolt
-
38940113-0600 WasherWasher
-
403C7-72030-0 Label, InterfernceLabel, Interfernce
