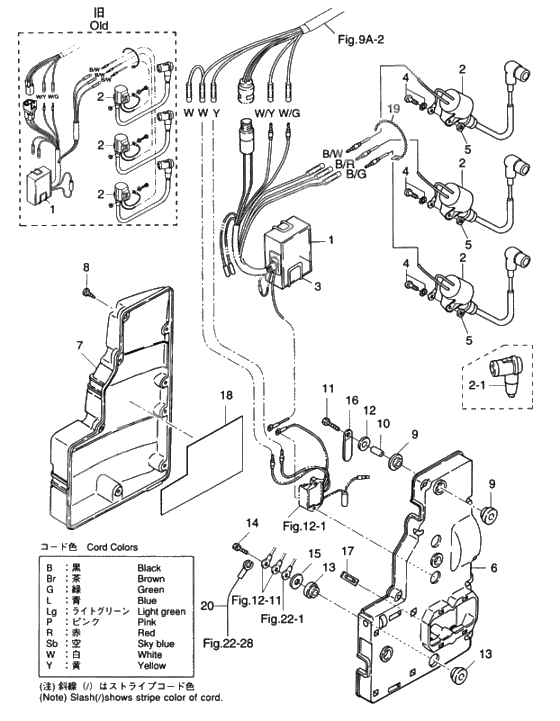

Electric parts (c.d. unit) для Tohatsu M70C - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3N4-06160-0 C.d unit
    70C # 13002~ / 60C # 10840~
    C.d unit
    70C # 13002~ / 60C # 10840~
  • 1
    3F3-06060-2 C.D. Unit
    70C #10001~13001 / 60C #10001~10839
    C.D. Unit
    70C #10001~13001 / 60C #10001~10839
  • 2
    3C7-06040-0 Ignition Coil
    70C # 13002~ / 60C # 10840~
    Ignition Coil
    70C # 13002~ / 60C # 10840~
  • 2
    3F3-06040-0 Ignition coil ass'y (with resistance)
    70C #10001~13001 / 60C #10001~10839
    Ignition coil ass'y (with resistance)
    70C #10001~13001 / 60C #10001~10839
  • 2-1
    3C7-06921-0 Prug cap (with waterproof registance)
    Prug cap (with waterproof registance)
  • 3
    3B7-06165-0 Band, c.d. unit
    Band, c.d. unit
  • 4
    910113-5620 Bolt
    OR 910103-5620
    Bolt
    OR 910103-5620
  • 5
    151-33159-0 Gasket,combination gauge
    Gasket,combination gauge
  • 7
    3F3-06902-1 Cover electric bracket
    Cover electric bracket
  • 8
    3F3-02423-0 Screw 5-30
    Screw 5-30
  • 9
    3F3-06920-0 Mount Rubber 9-12-2
    Mount Rubber 9-12-2
  • 10
    353-76079-0 Collar 6.2-9-9.3
    Collar 6.2-9-9.3
  • 11
    910113-0625 Bolt
    OR 910103-0625
    Bolt
    OR 910103-0625
  • 12
    3R0-66308-0 Washer
    Washer
  • 13
    345-67113-0 Mount Rubber
    Mount Rubber
  • 14
    910113-0616 Bolt
    OR 910103-0616
    Bolt
    OR 910103-0616
  • 15
    346-67115-0 Washer
    Washer
  • 16
    309-06972-0 Clamp,6.5-47.5P
    Clamp,6.5-47.5P
  • 17
    353-76213-0 Fuse(20ah)
    20A
    Fuse(20ah)
    20A
  • 19
    336-76091-0 Band Battery Cord
    Band Battery Cord
  • 20
    3N4-76142-0 Ground cord
    L=270
    Ground cord
    L=270
