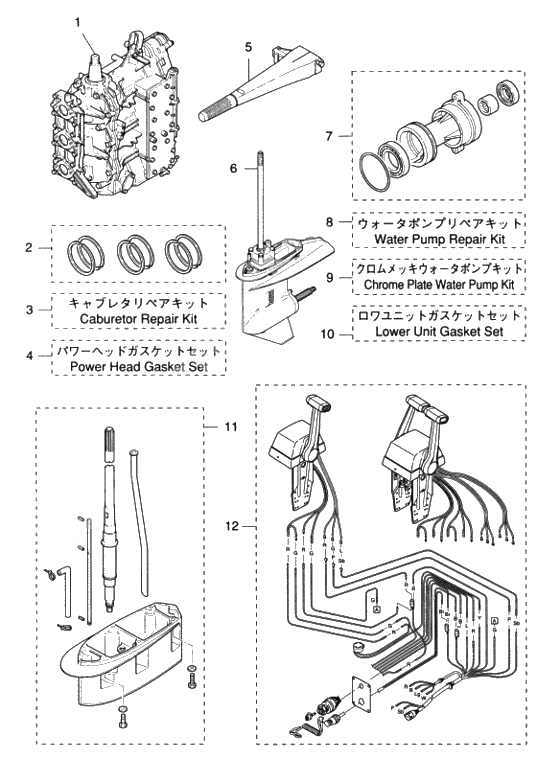

Assembly - kit для Tohatsu M70C - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3F3B87110-2 Engine short block
    INCL. ENGINE BASE GASKET & SPARK PLUG
    Engine short block
    INCL. ENGINE BASE GASKET & SPARK PLUG
  • 2
    3F3-87123-2 Кольца поршневые
    Кольца поршневые
  • 2
    3F3-00011-2 New part
    New part
  • 2
    3F3-00012-1 New part
    New part
  • 2
    3F3-87124-2 Piston ring set (0.5)
    Piston ring set (0.5)
  • 2
    3F3-00014-2 Piston ring 1st, 0. 5mm 0/s
    Piston ring 1st, 0. 5mm 0/s
  • 2
    3F3-00015-1 Piston ring 2nd, 0. 5mm 0/s
    Piston ring 2nd, 0. 5mm 0/s
  • 3
    3F3-87122-1 Carburetor Rerair Kit
    Carburetor Rerair Kit
  • 3
    3F3-02012-0 O-Ring
    O-Ring
  • 3
    3F3-03222-0 O-ring float chamber
    O-ring float chamber
  • 3
    922503-6414 Stud Bolt
    Stud Bolt
  • 3
    3F3-03231-0 Float
    Float
  • 3
    3F3-03232-0 Arm Pin Float
    Arm Pin Float
  • 3
    3B7-03240-0 Float Valve
    Float Valve
  • 3
    344-03244-0 Clip
    Clip
  • 3
    3F3-03234-0 Screw arm pin
    Screw arm pin
  • 3
    346-03256-0 Rubber cap
    Rubber cap
  • 3
    3F3-03182-0 Gaket,carburetor cover
    Gaket,carburetor cover
  • 3
    336-03293-0 O-Ring
    O-Ring
  • 3
    334-03242-0 Игольчатый клапан
    Игольчатый клапан
  • 4
    3F3-87121-1 Power Head Gasket Set
    Power Head Gasket Set
  • 4
    3F3-01005-0 Gasket, Cyl. Head
    Gasket, Cyl. Head
  • 4
    3F3-01024-0 New part
    New part
  • 4
    353-01032-0 Прокладка крышки термостата
    Прокладка крышки термостата
  • 4
    151-00053-0 O-Ring
    CRANK CASE HEAD
    O-Ring
    CRANK CASE HEAD
  • 4
    126-00121-0 Oil seal 30-45-8
    LOWER SIDE
    Oil seal 30-45-8
    LOWER SIDE
  • 4
    3F3-01215-0 Oil seal 16.8-28-8
    DRIVE SHAFT
    Oil seal 16.8-28-8
    DRIVE SHAFT
  • 4
    3F3-02305-1 Gasket,exhaust cover
    Gasket,exhaust cover
  • 4
    3C8-09082-0 Gasket blind plate
    FOR PREMIXING
    Gasket blind plate
    FOR PREMIXING
  • 4
    353-00108-0 O-Ring
    UPPER BEARING
    O-Ring
    UPPER BEARING
  • 4
    3F3-02104-0 Gasket inlet manifold
    Gasket inlet manifold
  • 4
    3F3-02418-0 Seal rubber air silencer
    Seal rubber air silencer
  • 4
    3F3-02012-0 O-Ring
    CARBURETOR
    O-Ring
    CARBURETOR
  • 4
    3B7-09002-0 O-Ring
    FOR AUTO-MIXING
    O-Ring
    FOR AUTO-MIXING
  • 4
    346-04901-0 Gasket fuel pump
    Gasket fuel pump
  • 4
    3B7-02235-0 O-Ring A
    O-Ring A
  • 4
    3B7-02236-0 O???? b
    O???? b
  • 4
    151-33159-0 Gasket,combination gauge
    IGNITION COIL
    Gasket,combination gauge
    IGNITION COIL
  • 4
    3C8-71016-0 Gasket 36-52-2
    OIL TANK
    Gasket 36-52-2
    OIL TANK
  • 4
    3F3-01303-1 Gasket engine base
    Gasket engine base
  • 5
    3B7S63010-1 Handle ass'y
    OR 3B7S63010-2
    Handle ass'y
    OR 3B7S63010-2
  • 6
    3N4S87302-0 Lower unit ass'y l
    FOR TRANSOM L
    Lower unit ass'y l
    FOR TRANSOM L
  • 6
    3N4S87304-0 Lower unit ass'y lul
    FOR TRANSOM UL
    Lower unit ass'y lul
    FOR TRANSOM UL
  • 7
    3B7S87323-1 Propeller shaft housing ass'y
    Propeller shaft housing ass'y
  • 8
    3F3-87322-0 ウォ-タ-ポンプリペアキット
    ウォ-タ-ポンプリペアキット
  • 8
    3B7-65021-2 Крыльчатка водной помпы
    Крыльчатка водной помпы
  • 8
    3B7-65022-0 Key, water pump impeller
    Key, water pump impeller
  • 8
    3B7-65011-0 New part
    New part
  • 8
    3F3-65025-1 Guide Plate Water Pump
    Guide Plate Water Pump
  • 8
    3B7-65029-0 Gasket, guide plate
    Gasket, guide plate
  • 8
    3B7-65018-0 Прокладка насоса
    Прокладка насоса
  • 8
    916113-0880 Bolt
    Bolt
  • 8
    940113-0800 Washer
    Washer
  • 9
    3F3-65231-1 Chrome plate watetr pump kit
    Chrome plate watetr pump kit
  • 9
    3B7-65021-2 Крыльчатка водной помпы
    Крыльчатка водной помпы
  • 9
    3B7-65238-0 Liner, chrome plated water pump case
    Liner, chrome plated water pump case
  • 9
    3F3-65239-1 Guide plate,chrome plated
    Guide plate,chrome plated
  • 9
    3B7-65029-0 Gasket, guide plate
    Gasket, guide plate
  • 9
    3B7-65018-0 Прокладка насоса
    Прокладка насоса
  • 10
    3N4-87321-0 Lower Unit Gasket Set
    Lower Unit Gasket Set
  • 10
    3F3-61012-0 Gasket drive shaft housing
    Gasket drive shaft housing
  • 10
    3F3-02312-0 Gasket exhaust pipe
    Gasket exhaust pipe
  • 10
    3F3-61181-0 Gasket exhaust housing
    Gasket exhaust housing
  • 10
    332-60006-0 Gasket (8.1x15.1)
    OIL PLUG
    Gasket (8.1x15.1)
    OIL PLUG
  • 10
    3B7-60016-0 O-Ring
    WATER PLUG
    O-Ring
    WATER PLUG
  • 10
    3B7-60103-0 O-Ring
    PROPELLER SHAFT
    O-Ring
    PROPELLER SHAFT
  • 10
    3B7-60111-0 Oil seal, 30-50-12
    PROPELLER SHAFT
    Oil seal, 30-50-12
    PROPELLER SHAFT
  • 10
    3C7-60223-1 Oil seal, 22-42-7
    PUMP CASE LOWER
    Oil seal, 22-42-7
    PUMP CASE LOWER
  • 10
    3B7-65015-0 O-Ring
    PUMP CASE LOWER
    O-Ring
    PUMP CASE LOWER
  • 10
    3B7-65029-0 Gasket, guide plate
    Gasket, guide plate
  • 10
    3B7-65018-0 Прокладка насоса
    Прокладка насоса
  • 10
    345-66021-0 O-Ring
    CAM ROD
    O-Ring
    CAM ROD
  • 10
    3B7-66023-0 O-Ring
    BUSHING
    O-Ring
    BUSHING
  • 10
    3B7-60219-0 Packing, Trim Tab
    Packing, Trim Tab
  • 11
    3N4S87314-0 Extension housing kit ul
    FOR TRANSOM UL
    Extension housing kit ul
    FOR TRANSOM UL
  • 12
    3B7-84490-1 Top mount remote control ass'y kit(rc6f)
    FOR SINGLE
    Top mount remote control ass'y kit(rc6f)
    FOR SINGLE
  • 12
    3B7-84540-1 Twin top mount remocon kit(rc6ft)
    FOR TWIN
    Twin top mount remocon kit(rc6ft)
    FOR TWIN
