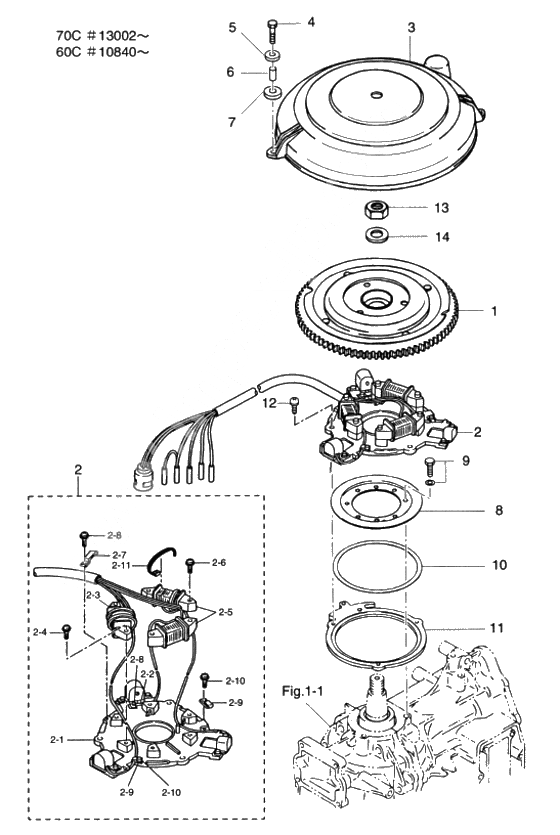

Magneto (new) для Tohatsu M70C - 2003 года выпуска
-
№АртикулНазвание
-
13N4-06101-0 Flywheel
70C #13002~ / 60C #10840~Flywheel
70C #13002~ / 60C #10840~ -
23N4-06103-0 Coil plate ass'y
70C #13002~ / 60C #10840~Coil plate ass'y
70C #13002~ / 60C #10840~ -
2-13N4-06130-0 Pulser plate ass'y
70C #13002~ / 60C #10840~Pulser plate ass'y
70C #13002~ / 60C #10840~ -
2-10922521-6406 Stud Bolt
70C #13002~ / 60C #10840~Stud Bolt
70C #13002~ / 60C #10840~ -
2-113B7-06133-0 Band, lead wire
70C #13002~ / 60C #10840~Band, lead wire
70C #13002~ / 60C #10840~ -
2-23B7-06131-0 Holder, pulser
70C #13002~ / 60C #10840~Holder, pulser
70C #13002~ / 60C #10840~ -
2-33N4-06120-0 Exciter coil
70C #13002~ / 60C #10840~Exciter coil
70C #13002~ / 60C #10840~ -
2-4921521-6630 Stud Bolt
70C #13002~ / 60C #10840~Stud Bolt
70C #13002~ / 60C #10840~ -
2-53N4-06123-0 Alternator set
70C #13002~ / 60C #10840~Alternator set
70C #13002~ / 60C #10840~ -
2-6921521-6630 Stud Bolt
70C #13002~ / 60C #10840~Stud Bolt
70C #13002~ / 60C #10840~ -
2-73B7-06135-0 Holder, magneto cord
70C #13002~ / 60C #10840~Holder, magneto cord
70C #13002~ / 60C #10840~ -
2-8922521-0406 Stud Bolt
70C #13002~ / 60C #10840~Stud Bolt
70C #13002~ / 60C #10840~ -
2-93B7-06132-0 Clamp, pulser
70C #13002~ / 60C #10840~Clamp, pulser
70C #13002~ / 60C #10840~ -
33F3-06301-0 Cover ring gearCover ring gear
-
4910113-0620 BoltBolt
-
53R0-66308-0 WasherWasher
-
6353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
73B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
8346-63722-2 Guide PlateGuide Plate
-
9910121-6616 BoltBolt
-
103C8-63745-0 Shim,110-112-0.15Shim,110-112-0.15
-
103C8-63746-0 Shim,110-112-0.2Shim,110-112-0.2
-
103C8-63747-0 Shim,110-112-0.25Shim,110-112-0.25
-
113F3-63723-0 Комплект колецКомплект колец
-
12921503-6510 Stud Bolt
70C #13002~ / 60C #10840~Stud Bolt
70C #13002~ / 60C #10840~ -
13353-00132-0 Nut 18P1.5Nut 18P1.5
-
14353-00133-0 WasherWasher
