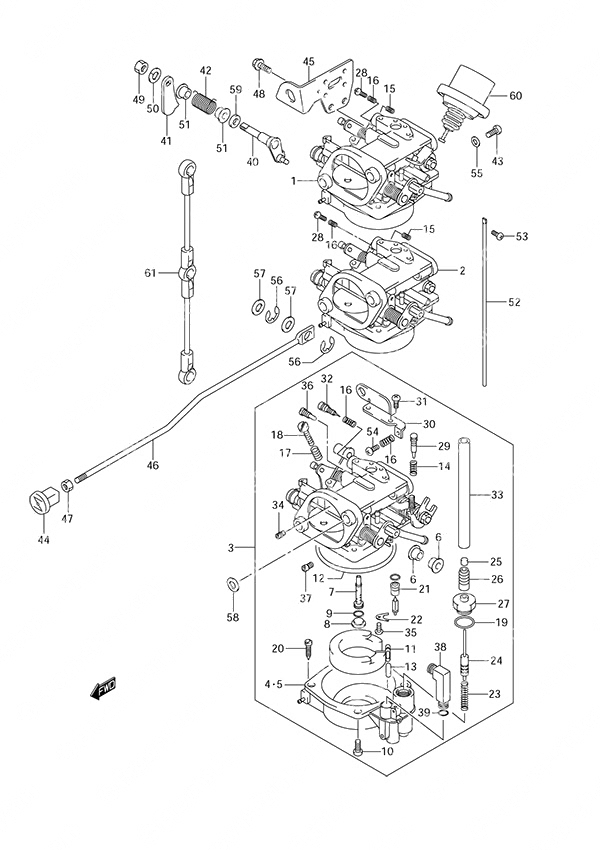

Fig. 8 - Carburetor для Suzuki DF 30 - 2006 года выпуска
-
№АртикулНазвание
-
113201-89J10-000 Top Carburetor AssemblyTop Carburetor Assembly
-
213202-89J10-000 2nd Carburetor Assembly2nd Carburetor Assembly
-
313203-89J10-000 3rd Carburetor Assembly3rd Carburetor Assembly
-
413245-89J00-000 • Float Chamber
Carb #1 & #2• Float Chamber
Carb #1 & #2 -
513245-89J10-000 • Float Chamber
Carb #3• Float Chamber
Carb #3 -
613216-89J00-000 • Ring (NLA)• Ring (NLA)
-
713235-89J10-000 • Main Nozzle (NLA)• Main Nozzle (NLA)
-
813239-89J00-000 • Plug• Plug
-
913246-43011-000 • O-Ring• O-Ring
-
1013249-89J00-000 • Screw (NLA)• Screw (NLA)
-
1113250-89J00-000 • Carburetor Float• Carburetor Float
-
1213251-95D00-000 • Float Chamber Gasket• Float Chamber Gasket
-
1313254-98300-000 • Float Pin• Float Pin
-
1413268-92910-000 • Spring• Spring
-
1513268-96111-000 • Spring
Carb #1 & #2• Spring
Carb #1 & #2 -
1613268-96111-000 • Spring
Carb #1 (3)
Carb #2 (3)
Carb #3 (2)• Spring
Carb #1 (3)
Carb #2 (3)
Carb #3 (2) -
1713268-89J00-000 • Spring
Carb #3• Spring
Carb #3 -
1813267-89J00-000 • Screw (NLA)
Carb #3• Screw (NLA)
Carb #3 -
1913278-47090-000 • O-Ring• O-Ring
-
2013279-90000-000 • Adjuster• Adjuster
-
2113370-95D00-000 • Needle Valve• Needle Valve
-
2213373-46710-000 • Needle Valve Plate• Needle Valve Plate
-
2313441-89J00-000 • Spring• Spring
-
2413493-89J00-000 • Plunger• Plunger
-
2513495-09400-000 • Cap• Cap
-
2613495-89J00-000 • Cap• Cap
-
2713496-89J00-000 • Holder Guide• Holder Guide
-
2813534-95D00-000 • Screw
Carb #1 & #2• Screw
Carb #1 & #2 -
2913534-98900-000 • Screw• Screw
-
3013656-89J00-000 • Bracket (NLA)• Bracket (NLA)
-
3113657-89J00-000 • Screw (NLA)• Screw (NLA)
-
3213662-89J00-000 • Adjuster• Adjuster
-
33-109351-30001-600 • Hose (3x5x600)
Carb #1 & #2
L:600->125• Hose (3x5x600)
Carb #1 & #2
L:600->125 -
33-209351-30001-600 • Hose (3x5x600)
Carb #3
L:600->225• Hose (3x5x600)
Carb #3
L:600->225 -
3409493-70009-000 • Air Jet #0.7• Air Jet #0.7
-
3502112-0306B-000 • Screw (3x6)• Screw (3x6)
-
3609492-40011-000 • Pilot Jet #40• Pilot Jet #40
-
3709493-22011-000 • Main Jet #110• Main Jet #110
-
3813497-89J00-000 • Union• Union
-
3913291-63C00-000 • O-Ring• O-Ring
-
4013212-89J00-000 Shaft AssemblyShaft Assembly
-
4113213-89J00-000 LeverLever
-
4213214-89J00-000 Spring (NLA)Spring (NLA)
-
4313249-89J10-000 ScrewScrew
-
4413631-93501-000 Starter KnobStarter Knob
-
4513231-89J00-000 Carburetor ProtectorCarburetor Protector
-
4613413-89J00-000 Choke Rod (NLA)Choke Rod (NLA)
-
4709140-04007-000 NutNut
-
4801550-06127-000 Bolt (6x12)Bolt (6x12)
-
4913607-98300-000 Throttle Lever Nut (NLA)Throttle Lever Nut (NLA)
-
5009162-06006-000 Lock WasherLock Washer
-
5113216-89J00-000 Ring (NLA)Ring (NLA)
-
5213513-89J00-000 CableCable
-
5313614-89J00-000 Screw (NLA)Screw (NLA)
-
5413534-89J00-000 Screw (NLA)Screw (NLA)
-
5513558-09300-000 Washer (NLA)Washer (NLA)
-
5613415-38300-000 E-RingE-Ring
-
5713445-14A00-000 WasherWasher
-
5813539-89J00-000 Washer (NLA)Washer (NLA)
-
5913555-87C00-000 PackingPacking
-
6013431-89J00-000 Dash Pot Assembly (NLA)Dash Pot Assembly (NLA)
-
6113510-89J00-000 Throttle RodThrottle Rod
-
6213910-89J01-000 Carburetor Repair Kit
Opt: Not ShownCarburetor Repair Kit
Opt: Not Shown
