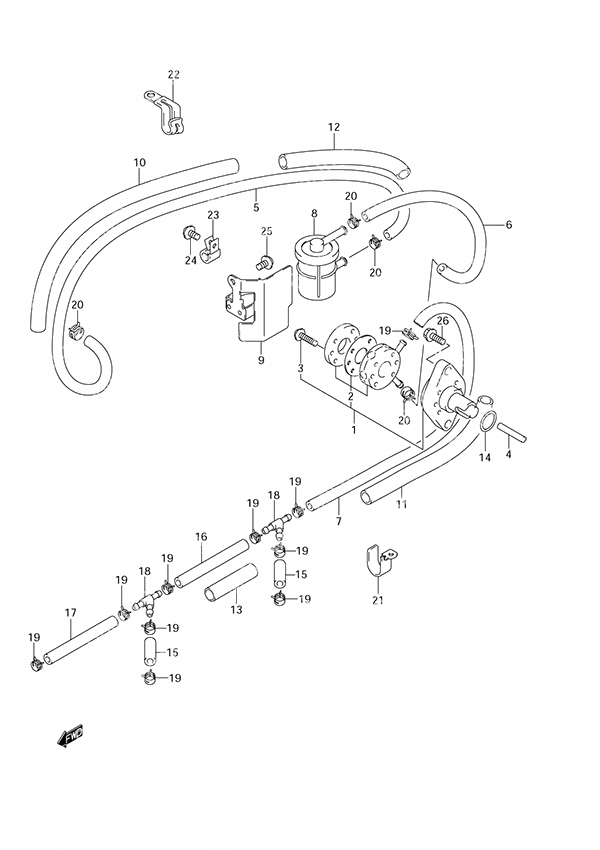

Fig. 11 - Fuel Pump для Suzuki DF 30 - 2006 года выпуска
-
№АртикулНазвание
-
115100-89J02-000 Fuel Pump AssemblyFuel Pump Assembly
-
215170-99E1V-000 • Fuel Pump Diaphragm Set• Fuel Pump Diaphragm Set
-
315251-93E01-000 • Screw• Screw
-
415131-89J00-000 Fuel Pump Rod (NLA)Fuel Pump Rod (NLA)
-
515191-89J00-000 Fuel Hose
Connector to FilterFuel Hose
Connector to Filter -
615192-89J00-000 Fuel Hose
Filter to PumpFuel Hose
Filter to Pump -
715193-89J00-000 Fuel Hose
Pump to 3 WayFuel Hose
Pump to 3 Way -
815410-87J10-000 Fuel FilterFuel Filter
-
915420-89J00-000 Fuel Filter Bracket (NLA)Fuel Filter Bracket (NLA)
-
1018498-99E11-000 Hose Protector (L:610)
L:610->560Hose Protector (L:610)
L:610->560 -
1118498-89J11-000 Fuel Hose Protector
L:180Fuel Hose Protector
L:180 -
1218498-99E11-000 Hose Protector (L:610)
L:610->180Hose Protector (L:610)
L:610->180 -
1318498-89J11-000 Fuel Hose Protector
S/N 680001 to 680095Fuel Hose Protector
S/N 680001 to 680095 -
1409280-26005-000 O-RingO-Ring
-
1544421-13ER0-000 Hose (5x10x600)
3 Way to Carb
L:600->35Hose (5x10x600)
3 Way to Carb
L:600->35 -
1644421-13ER0-000 Hose (5x10x600)
3 Way to 3 Way
L:600->50Hose (5x10x600)
3 Way to 3 Way
L:600->50 -
1744421-13ER0-000 Hose (5x10x600)
3 Way to Top
L:600->110Hose (5x10x600)
3 Way to Top
L:600->110 -
1809367-06007-000 3 Way
Pump to Carb3 Way
Pump to Carb -
1909401-09404-000 ClipClip
-
2009401-11423-000 ClipClip
-
2109403-11315-000 Clamp (NLA)Clamp (NLA)
-
2209403-12317-000 Clamp (NLA)Clamp (NLA)
-
2309403-13408-000 ClampClamp
-
2401550-06107-000 BoltBolt
-
2501550-06127-000 Bolt (6x12)Bolt (6x12)
-
2601550-06257-000 BoltBolt
