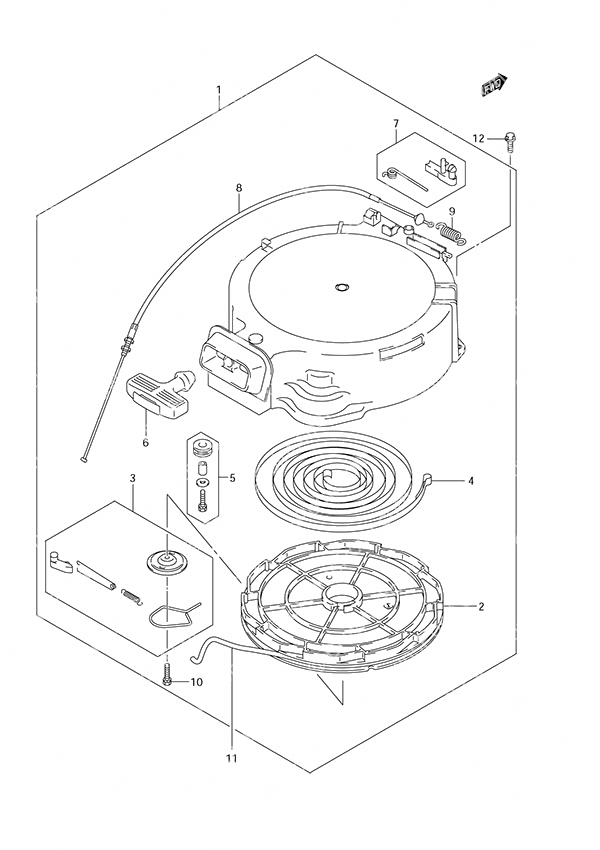

Fig. 14 - Recoil Starter для Suzuki DF 30 - 2006 года выпуска
-
№АртикулНазвание
-
118100-89J00-000 Recoil Starter AssemblyRecoil Starter Assembly
-
218121-89J00-000 • Reel (NLA)• Reel (NLA)
-
318130-89J00-000 • Ratchet Set• Ratchet Set
-
418142-89J00-000 • Spiral Spring• Spiral Spring
-
518190-89J00-000 • Guide Set (NLA)• Guide Set (NLA)
-
618210-93002-000 • Grip Assembly• Grip Assembly
-
718280-96320-000 • NSI Set• NSI Set
-
818290-89J00-000 • Wire• Wire
-
918293-89J00-000 • Spring (NLA)• Spring (NLA)
-
1001570-06167-000 • Bolt• Bolt
-
1199000-81159-50M Starter Rope 6mm Diameter (NLA)
Opt: L:50000->1600Starter Rope 6mm Diameter (NLA)
Opt: L:50000->1600 -
1201550-06207-000 Bolt (6x20)Bolt (6x20)
