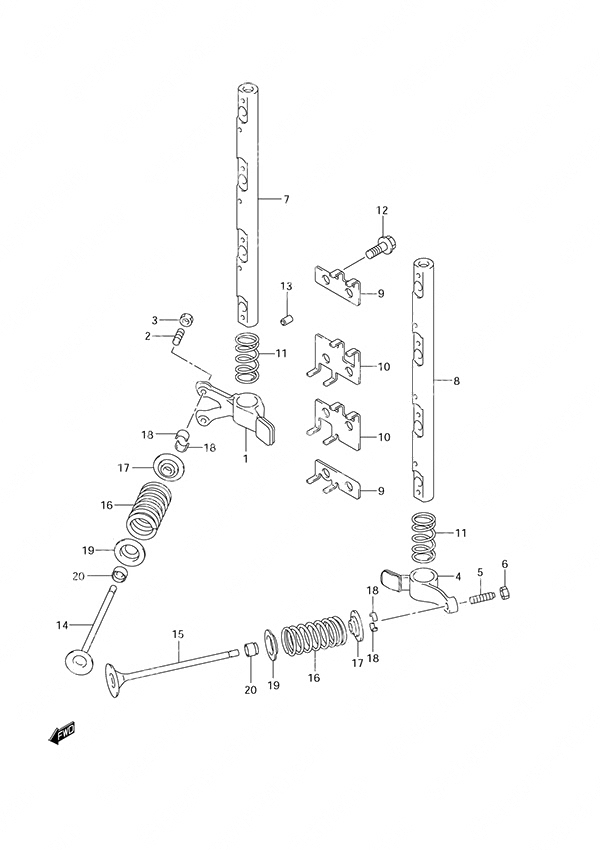

Fig. 6 - Valve для Suzuki DF 30 - 2006 года выпуска
-
№АртикулНазвание
-
112841-89J00-000 Intake Valve Rocker Arm (NLA)Intake Valve Rocker Arm (NLA)
-
212842-32411-000 Tappet Adjusting ScrewTappet Adjusting Screw
-
312843-32400-000 Tappet Adjusting NutTappet Adjusting Nut
-
412851-89J00-000 Exhaust Valve Rocker Arm (NLA)Exhaust Valve Rocker Arm (NLA)
-
512842-32411-000 Tappet Adjusting ScrewTappet Adjusting Screw
-
612843-32400-000 Tappet Adjusting NutTappet Adjusting Nut
-
712860-89J00-000 Intake Rocker Arm Shaft (NLA)Intake Rocker Arm Shaft (NLA)
-
812870-89J00-000 Exhaust Rocker Arm Shaft (NLA)Exhaust Rocker Arm Shaft (NLA)
-
912881-89J00-000 Rocker Arm Shaft Bracket (NLA)Rocker Arm Shaft Bracket (NLA)
-
1012882-89J00-000 Rocker Arm Shaft Bracket (NLA)Rocker Arm Shaft Bracket (NLA)
-
1112891-89J00-000 Rocker Arm Spring (NLA)Rocker Arm Spring (NLA)
-
1209103-07011-000 Bolt (7x24) (NLA)Bolt (7x24) (NLA)
-
1309206-06005-000 Knock Pin (NLA)Knock Pin (NLA)
-
1412911-85100-000 Intake ValveIntake Valve
-
1512915-89J00-000 Exhaust ValveExhaust Valve
-
1612921-53A00-000 Valve Spring (NLA)Valve Spring (NLA)
-
1712931-86500-000 Valve Spring Retainer (NLA)Valve Spring Retainer (NLA)
-
1812932-24400-000 Valve CotterValve Cotter
-
1912933-86510-000 Valve Spring SeatValve Spring Seat
-
2009289-05006-000 Valve Stem SealValve Stem Seal
