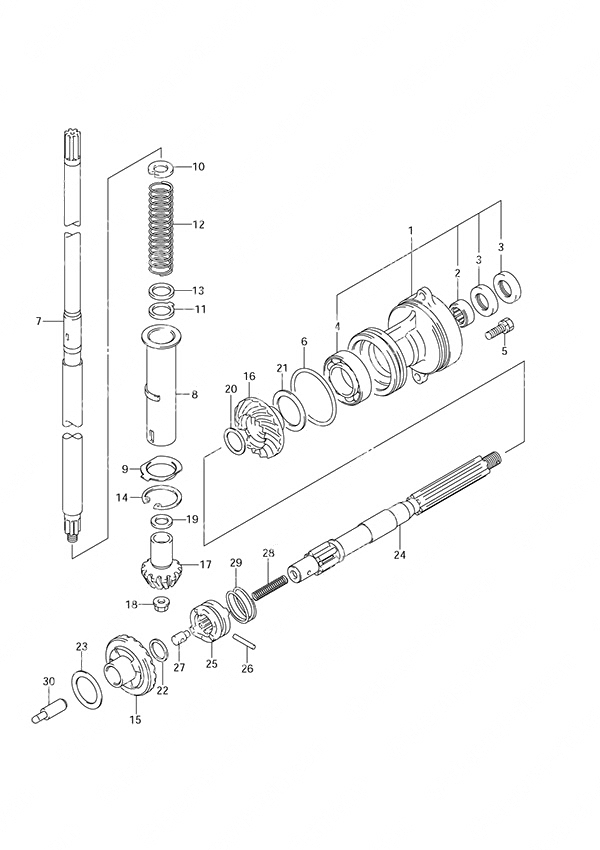

Fig. 22 - Drive Shaft для Suzuki DF 30 - 2006 года выпуска
-
№АртикулНазвание
-
156120-96332-0EP Propeller Shaft Bearing HousingPropeller Shaft Bearing Housing
-
209263-20047-000 • Bearing (20x26x20)• Bearing (20x26x20)
-
309289-20009-000 • Oil Seal• Oil Seal
-
408113-60060-000 • B1 30x55x13 Bearing• B1 30x55x13 Bearing
-
509116-06121-000 Bolt (6x25)Bolt (6x25)
-
609280-75002-000 O-RingO-Ring
-
7-157110-89J10-000 Drive Shaft (S) (NLA)
w/Transom (S)Drive Shaft (S) (NLA)
w/Transom (S) -
7-257110-89J00-000 Drive Shaft (L) (NLA)
w/Transom (L)Drive Shaft (L) (NLA)
w/Transom (L) -
857133-96302-000 Drive Shaft Spring CollarDrive Shaft Spring Collar
-
957134-96301-000 Gear Oil BarrierGear Oil Barrier
-
1009166-17005-000 Washer (17.1x26x3.0)Washer (17.1x26x3.0)
-
1109167-20021-000 Washer (20.5x25.5x2.0)Washer (20.5x25.5x2.0)
-
1209440-25002-000 Drive Shaft SpringDrive Shaft Spring
-
1308211-20253-000 Thrust Washer (NLA)Thrust Washer (NLA)
-
1408331-41406-000 CirclipCirclip
-
1557510-94L00-000 Forward GearForward Gear
-
1657521-94L00-000 Reverse GearReverse Gear
-
1757311-91L00-000 Pinion GearPinion Gear
-
1809159-08046-000 NutNut
-
19-109160-15030-000 Washer (1.7)Washer (1.7)
-
19-209160-15031-000 Washer (1.8) (NLA)Washer (1.8) (NLA)
-
19-309160-15032-000 Washer (1.9) (NLA)Washer (1.9) (NLA)
-
19-408211-15203-000 Washer (2.0)Washer (2.0)
-
19-509160-15033-000 Washer (2.1) (NLA)Washer (2.1) (NLA)
-
19-608211-15204-000 Washer (2.2)Washer (2.2)
-
20-109160-20068-000 Washer (1.6)Washer (1.6)
-
20-209160-20069-000 Washer (1.8)Washer (1.8)
-
20-309160-20070-000 Washer (2.0)Washer (2.0)
-
20-409160-20071-000 Washer (2.2)Washer (2.2)
-
20-509160-20072-000 Washer (2.4)Washer (2.4)
-
20-609160-20073-000 Washer (2.6)Washer (2.6)
-
21-108221-30404-000 Shim (0.2)Shim (0.2)
-
21-209181-30158-000 Shim (0.50)Shim (0.50)
-
21-309181-30162-000 Shim (0.8)Shim (0.8)
-
21-409181-30167-000 Shim (1.0)Shim (1.0)
-
2209181-16008-000 Shim (2.0)Shim (2.0)
-
23-109181-25190-000 Shim (0.80)Shim (0.80)
-
23-209181-25248-000 Shim (0.90)Shim (0.90)
-
23-309181-25251-000 Shim (1.00)Shim (1.00)
-
23-409160-25032-000 Thrust Washer (1.10)Thrust Washer (1.10)
-
23-509160-25033-000 Thrust Washer (1.20)Thrust Washer (1.20)
-
23-609160-25034-000 Thrust Washer (1.30) (NLA)Thrust Washer (1.30) (NLA)
-
23-709160-25035-000 Thrust Washer (1.40)Thrust Washer (1.40)
-
23-809181-25268-000 Shim (1.50)Shim (1.50)
-
2457610-96311-000 Propeller Shaft AssemblyPropeller Shaft Assembly
-
2557621-89J10-000 Clutch Dog ShifterClutch Dog Shifter
-
2609202-05021-000 Clutch Dog Shifter PinClutch Dog Shifter Pin
-
2709209-08016-000 Push PinPush Pin
-
2809440-07074-000 Return SpringReturn Spring
-
2909440-35004-000 SpringSpring
-
3057631-96301-000 Push RodPush Rod
