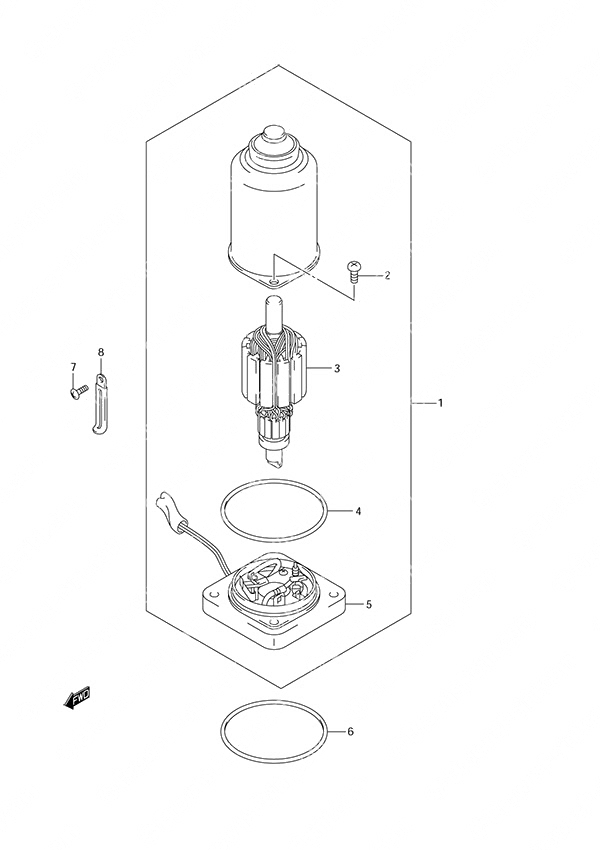

Fig. 34 - PTT Motor Remote Control w/Power Tilt для Suzuki DF 30 - 2006 года выпуска
-
№АртикулНазвание
-
138100-89J10-000 PTT Motor Assembly (NLA)PTT Motor Assembly (NLA)
-
231111-89J00-000 • Screw (NLA)• Screw (NLA)
-
331311-89J00-000 • Armature (NLA)• Armature (NLA)
-
431123-89J00-000 • O-Ring• O-Ring
-
531173-89J20-000 • Brush Holder Assembly• Brush Holder Assembly
-
631123-89J10-000 O-RingO-Ring
-
709125-06063-000 Screw (6x10)Screw (6x10)
-
809404-06432-000 Clamp (L:65)Clamp (L:65)
