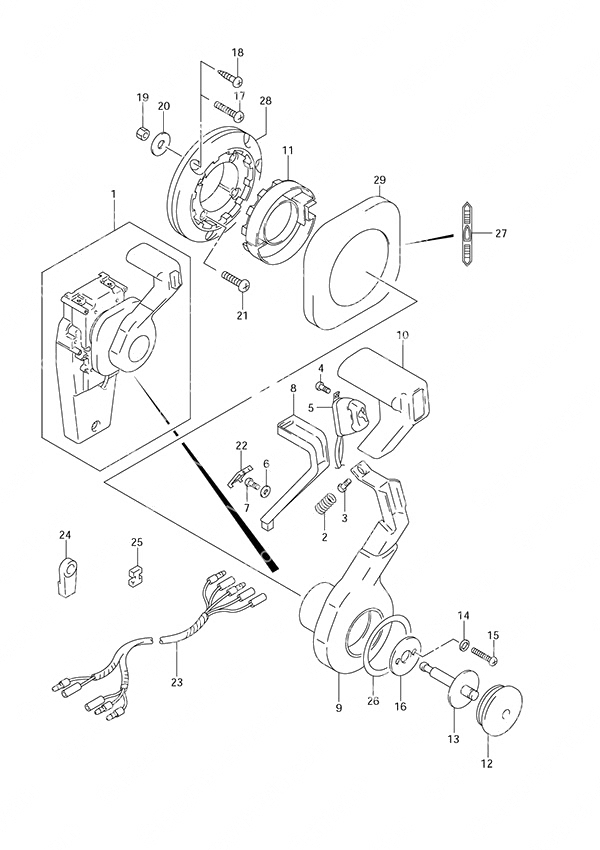

Fig. 53 - Opt: Concealed Remocon (1) для Suzuki DF 30 - 2006 года выпуска
-
№АртикулНазвание
-
167200-93J34-000 Flush Mount Control BoxFlush Mount Control Box
-
267298-92E50-000 • Spring• Spring
-
367296-94310-000 • Screw• Screw
-
467295-92E10-000 • Screw (3x12)• Screw (3x12)
-
537850-92E27-000 • PTT Switch Assembly• PTT Switch Assembly
-
667288-92E60-000 • Washer• Washer
-
767296-92E52-000 • Screw• Screw
-
867255-92E50-000 • Neutral Lock Arm• Neutral Lock Arm
-
967251-92E50-000 • Handle Lever• Handle Lever
-
1067261-92E50-000 • Grip• Grip
-
1167256-92E50-000 • Neutral Lock Holder• Neutral Lock Holder
-
1267257-92E00-000 • Lever Cap• Lever Cap
-
1367242-92E50-000 • Free Accel Shaft• Free Accel Shaft
-
1467288-92E20-000 • Washer• Washer
-
1567296-88D10-000 • Screw (5x16)• Screw (5x16)
-
1667288-92E70-000 • Washer (NLA)• Washer (NLA)
-
1767296-88D20-000 • Screw (6x35) (NLA)• Screw (6x35) (NLA)
-
1867295-92E50-000 • Screw (6x30) (NLA)• Screw (6x30) (NLA)
-
1967287-92E50-000 • Nut (NLA)• Nut (NLA)
-
2009160-06104-000 • Washer (6.5x24x2)• Washer (6.5x24x2)
-
2167296-88D30-000 • Screw (5x30) (NLA)• Screw (5x30) (NLA)
-
2267254-92E50-000 • Lock Arm Cover• Lock Arm Cover
-
2336890-93J00-000 • Wire Harness• Wire Harness
-
2467275-95600-000 • Cable End• Cable End
-
2567273-95600-000 • Spacer• Spacer
-
2667283-92E50-000 • Lever Decal (NLA)• Lever Decal (NLA)
-
2767284-92E50-000 • Clutch Decal (NLA)• Clutch Decal (NLA)
-
2867274-92E50-000 • Base• Base
-
2967211-92E50-000 • Flush Mount Cover (NLA)• Flush Mount Cover (NLA)
