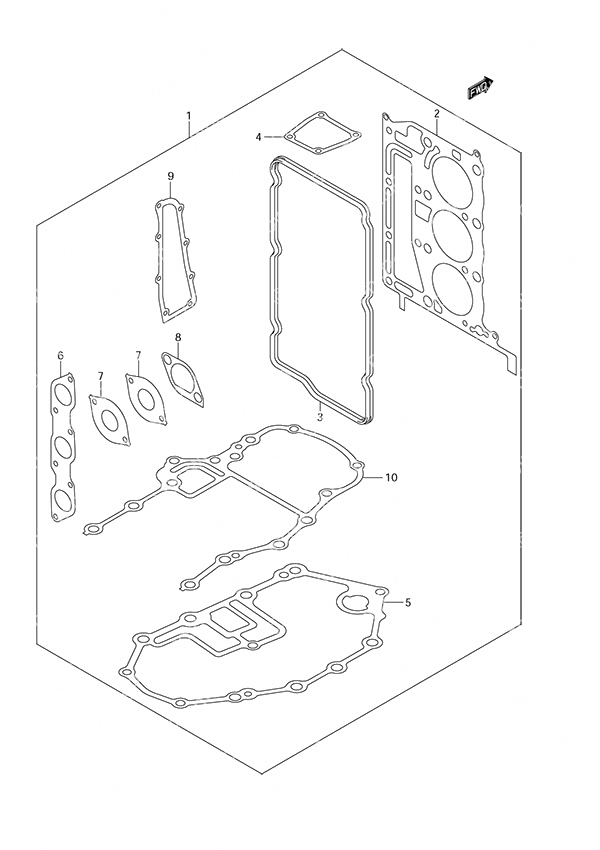

Fig. 57 - Opt: Gasket Set для Suzuki DF 30 - 2006 года выпуска
-
№АртикулНазвание
-
111400-89832-000 Engine Gasket SetEngine Gasket Set
-
211141-89J01-000 • Cylinder Head Gasket• Cylinder Head Gasket
-
311182-89J00-000 • Cylinder Head Upper Cover Gasket• Cylinder Head Upper Cover Gasket
-
411189-89J00-000 • Cylinder Head Cover Gasket• Cylinder Head Cover Gasket
-
511489-89J00-000 • Oil Pan Gasket• Oil Pan Gasket
-
613119-89J00-000 • Inlet Manifold Gasket• Inlet Manifold Gasket
-
713125-89J01-000 • Carburetor Gasket• Carburetor Gasket
-
813855-89J00-000 • Silencer Gasket• Silencer Gasket
-
914151-89J00-000 • Exhaust Cover Gasket• Exhaust Cover Gasket
-
1051211-89J00-000 • Engine Holder Gasket• Engine Holder Gasket
