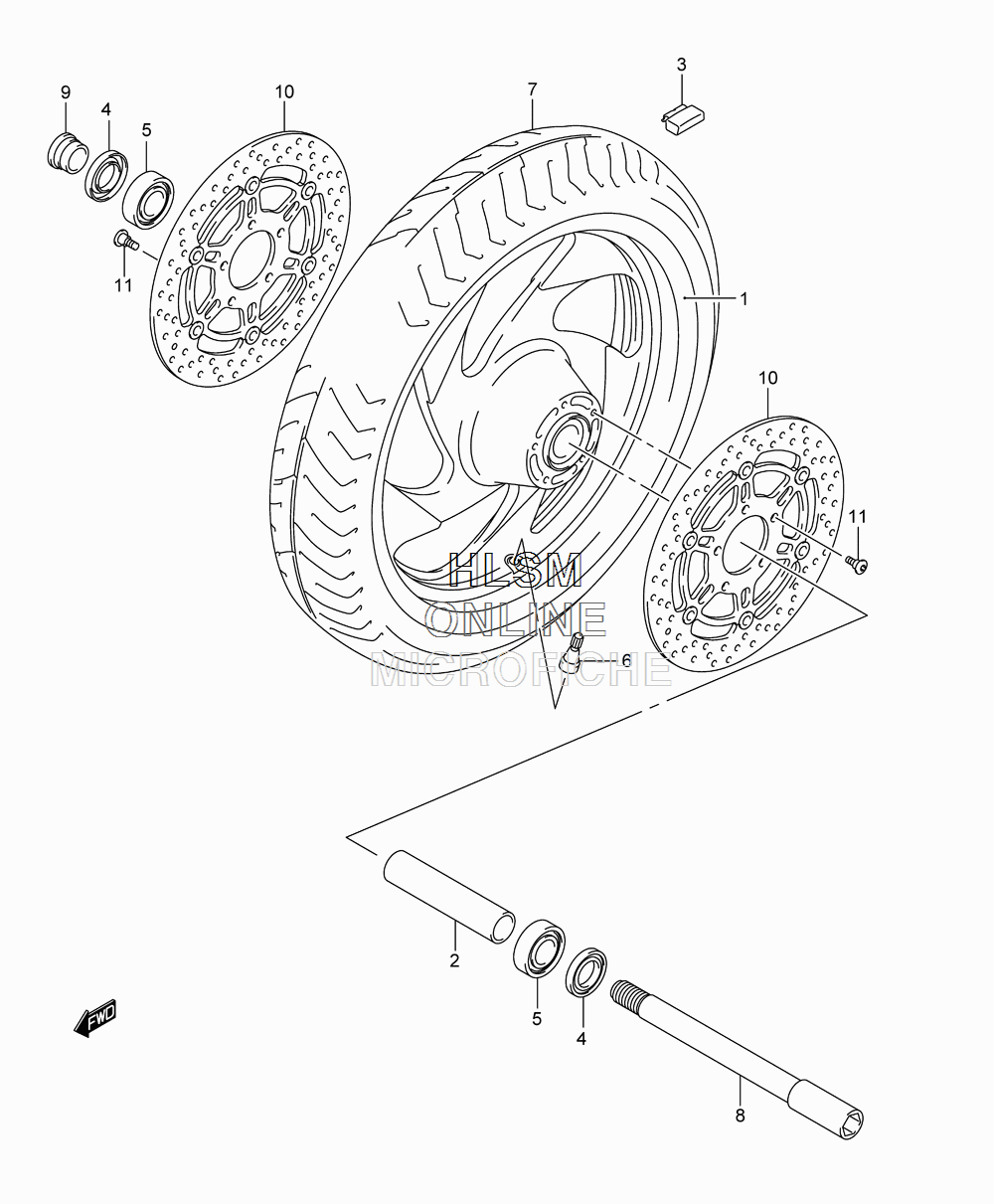

WHEEL - FRONT для Suzuki VZ1500 L3 - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    54111-40H00-20H WHEEL, FRONT (18M/CXMT3.50) (20H - SILVER)
    WHEEL, FRONT (18M/CXMT3.50) (20H - SILVER)
  • 2
    54731-48G00 SPACER, FRONT WHEEL BEARING
    SPACER, FRONT WHEEL BEARING
  • 3
    55411-22H00 BALANCER, WHEEL NO.1 (10G)
    BALANCER, WHEEL NO.1 (10G)
  • 3
    55412-22H00 BALANCER, WHEEL NO.2 (20G)
    BALANCER, WHEEL NO.2 (20G)
  • 3
    55413-22H00 BALANCER, WHEEL NO.3 (30G)
    BALANCER, WHEEL NO.3 (30G)
  • 4
    09285-32004 OIL SEAL (32X52X7)
    OIL SEAL (32X52X7)
  • 5
    09262-25072 BEARING (25X52X15)
    BEARING (25X52X15)
  • 6
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
  • 7
    55110-40H00 TIRE, FRONT (120/70ZR18M/C)
    TIRE, FRONT (120/70ZR18M/C)
  • 8
    54711-48G00 AXLE, FRONT
    AXLE, FRONT
  • 9
    54741-48G00 SPACER, FRONT AXLE LEFT
    SPACER, FRONT AXLE LEFT
  • 10
    59210-08F30 DISC, FRONT BRAKE
    DISC, FRONT BRAKE
  • 11
    09106-08160 BOLT (8X21)
    BOLT (8X21)
