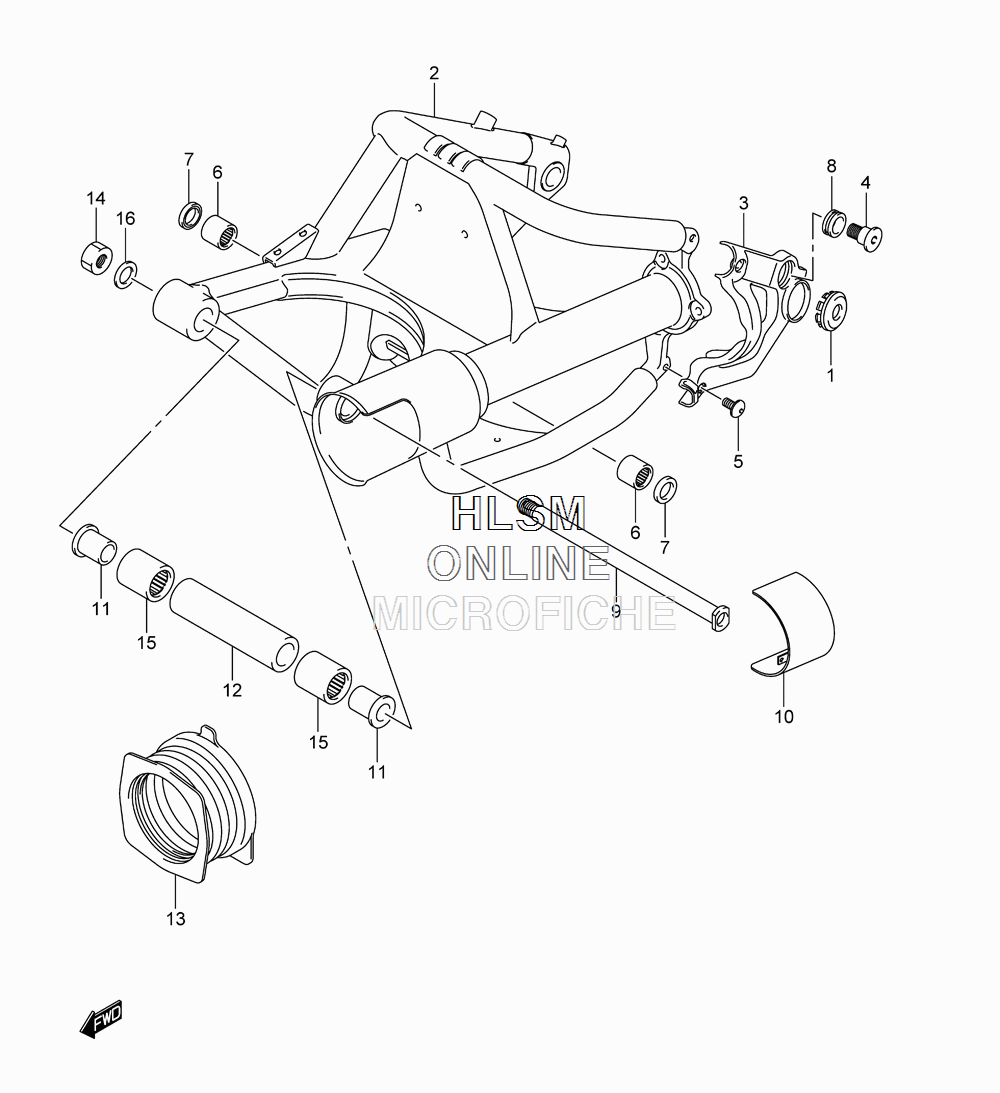

REAR SWINGARM для Suzuki VZ1500 L3 - 2013 года выпуска
-
№АртикулНазвание
-
141899-42F10 CAP, REAR SWGARM COVERCAP, REAR SWGARM COVER
-
261100-06J00-019 SWINGINGARM, REAR (019 - BLACK)SWINGINGARM, REAR (019 - BLACK)
-
361126-40H00-019 COVER, REAR SWGARM LEFT (019 - BLACK)COVER, REAR SWGARM LEFT (019 - BLACK)
-
461127-41F20 BOLT, REAR SWGARM COVER REARBOLT, REAR SWGARM COVER REAR
-
509139-08007 SCREW (8X16)SCREW (8X16)
-
609263-22071 BEARING (22X29X25)BEARING (22X29X25)
-
709285-22001 OIL SEAL (22X29X4)OIL SEAL (22X29X4)
-
809320-22003 CUSHIONCUSHION
-
961211-22D00 SHAFT, REAR SWGARM PIVOTSHAFT, REAR SWGARM PIVOT
-
1061230-40H00 COVER, REAR SWGARM PIVOT LEFTCOVER, REAR SWGARM PIVOT LEFT
-
1161251-31E00 SPACER, REAR SWGARM BEARINGSPACER, REAR SWGARM BEARING
-
1261280-48G01 SPACER, REAR SWGARM CENTERSPACER, REAR SWGARM CENTER
-
1361372-40H10 BOOT, PROPELLER SHAFTBOOT, PROPELLER SHAFT
-
1409159-18007 NUTNUT
-
1509263-25059 BEARING (25X33X35)BEARING (25X33X35)
-
1608322-0118B WASHERWASHER
