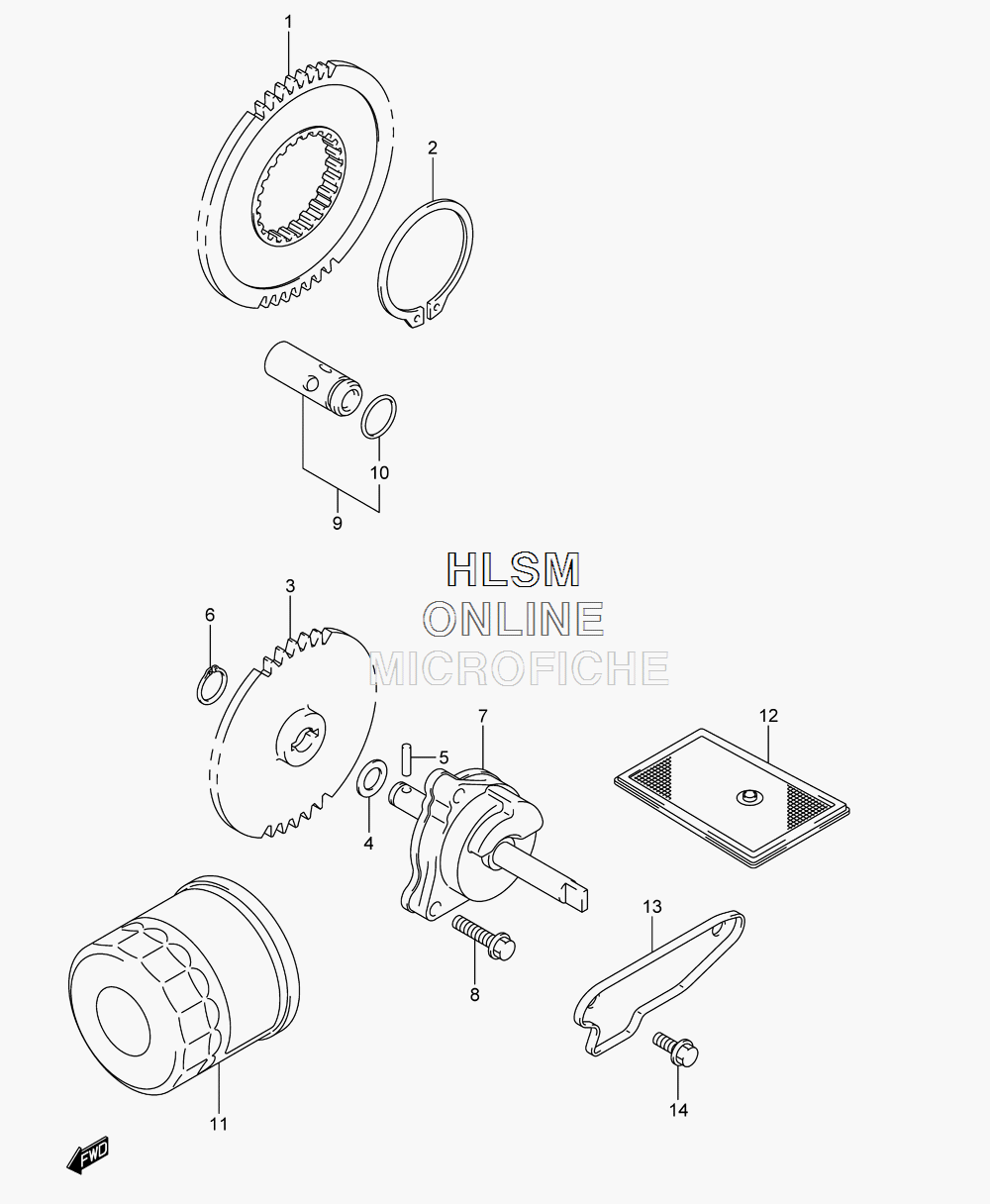

OIL PUMP для Suzuki VZ1500 L3 - 2013 года выпуска`
-
№АртикулНазвание
-
116321-40H00 GEAR, OIL PUMP DRIVE (NT:55)GEAR, OIL PUMP DRIVE (NT:55)
-
208331-31529 CIRCLIPCIRCLIP
-
316331-40H00 GEAR, OIL PUMP DRIVEN (NT:40)GEAR, OIL PUMP DRIVEN (NT:40)
-
409181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
509261-04009 PIN (4X15.8)PIN (4X15.8)
-
608331-31109 CIRCLIPCIRCLIP
-
716400-40H00 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
801547-0625A BOLTBOLT
-
916440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1009280-13004 ...O RING (D:1.9,ID:13)...O RING (D:1.9,ID:13)
-
1116510-07J00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
1216520-32E00 STRAINER, ENG OILSTRAINER, ENG OIL
-
1316523-17G00 CAP, OIL STRAINERCAP, OIL STRAINER
-
1401547-0612A BOLTBOLT
