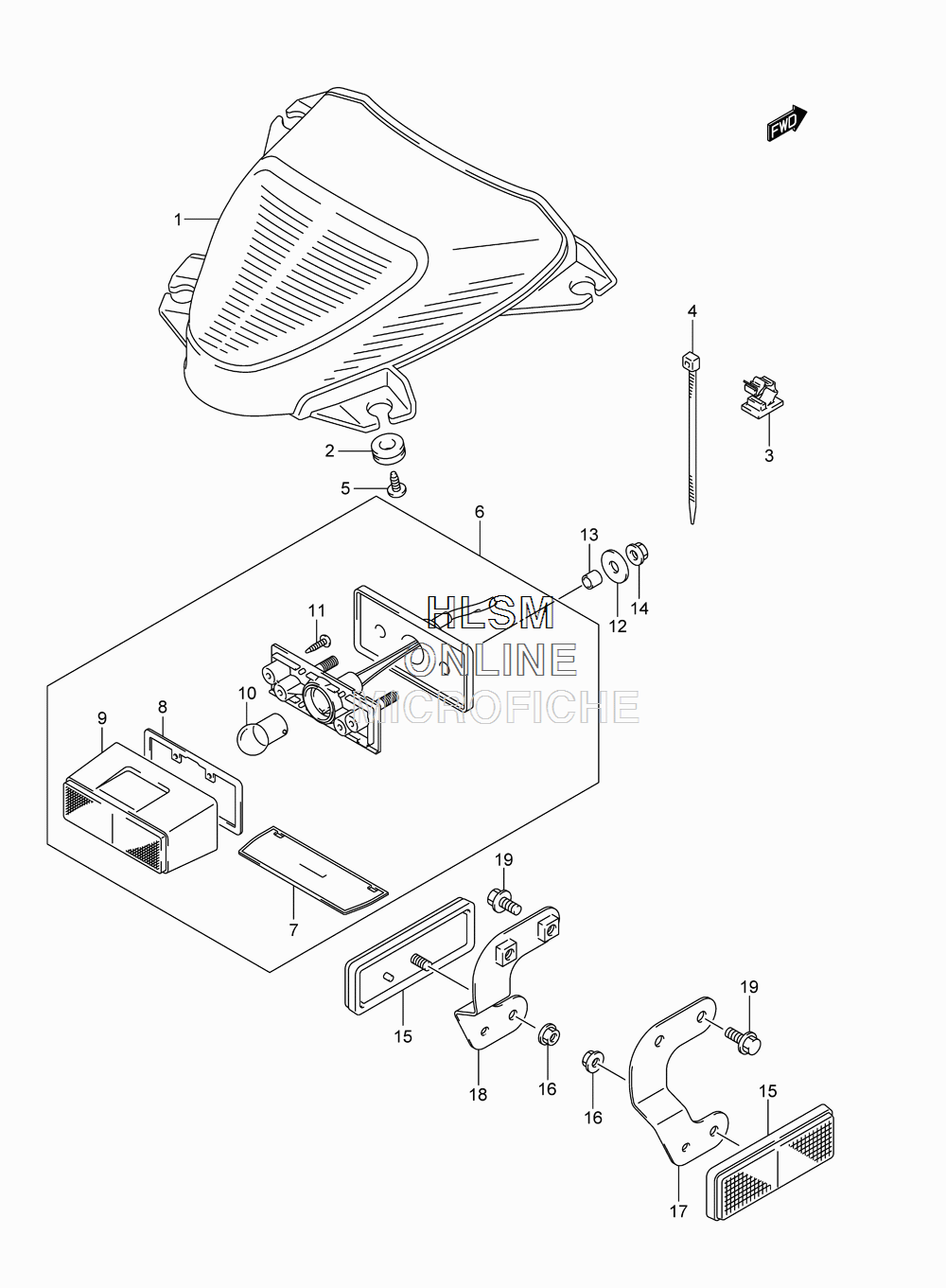

TAILLIGHT ASSY. для Suzuki VZ1500 L3 - 2013 года выпуска

№

Артикул

Название
1

35710-40H00 LAMP ASSY, REAR COMBINATION

LAMP ASSY, REAR COMBINATION
2

09320-10054 CUSHION

CUSHION
3

09403-07315 CLAMP

CLAMP
4

09407-14407 CLAMP (L:145)

CLAMP (L:145)
5

03541-0512A SCREW

SCREW
6

35910-41G01 LAMP ASSY, LICENSE

LAMP ASSY, LICENSE
7

35912-41G01 ...LENS, LICENSE

...LENS, LICENSE
8

35913-41G00 ...GASKET

...GASKET
9

35917-41G00 ...COVER, LICENSE LAMP

...COVER, LICENSE LAMP
10

09471-12140 ...BULB (12V, 5W)

...BULB (12V, 5W)
11

03211-0416A ...SCREW

...SCREW
12

09160-06077 WASHER (6.5X20X1.2)

WASHER (6.5X20X1.2)
13

09180-06261 SPACER (6.5X9X8)

SPACER (6.5X9X8)
14

08316-1006A NUT

NUT
15

35970-07F01 REFLECTOR ASSY, REAR SIDE

REFLECTOR ASSY, REAR SIDE
16

08316-1005A NUT

NUT
17

35975-40H00 BRACKET, REAR SIDE REAR, RIGHT

BRACKET, REAR SIDE REAR, RIGHT
18

35976-40H00 BRACKET, REAR SIDE REAR, LEFT

BRACKET, REAR SIDE REAR, LEFT
19

02162-0612A SCREW

SCREW
