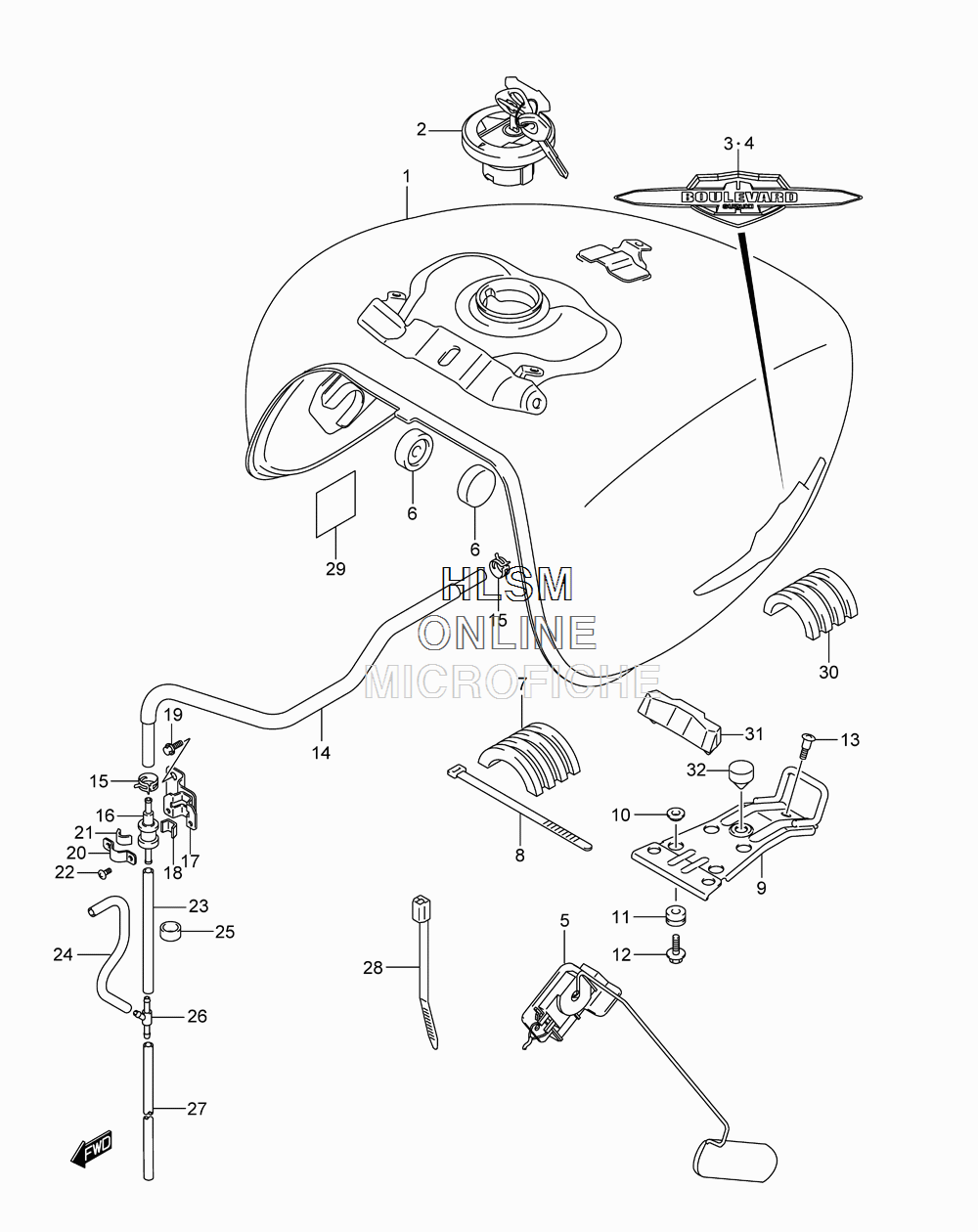

FUEL TANK (CANADA ONLY) для Suzuki VZ1500 L3 - 2013 года выпуска
-
№АртикулНазвание
-
144100-40H60-YLF TANK ASSY, FUEL (YLF - GRAY)TANK ASSY, FUEL (YLF - GRAY)
-
144100-40H60-YVB TANK ASSY, FUEL (YVB - BLACK)TANK ASSY, FUEL (YVB - BLACK)
-
244200-39840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
368111-40H00 EMBLEM, RIGHTEMBLEM, RIGHT
-
468121-40H00 EMBLEM, LEFTEMBLEM, LEFT
-
534810-40H00 GUAGE ASSY, FUEL TANKGUAGE ASSY, FUEL TANK
-
609329-10007 CUSHIONCUSHION
-
744541-04F00 CUSHION, FUEL TANK, UPPERCUSHION, FUEL TANK, UPPER
-
809407-30402 CLAMP (L:300)CLAMP (L:300)
-
944530-06J00 BRACKET, REARBRACKET, REAR
-
1009169-06062 WASHERWASHER
-
1109320-08001 CUSHIONCUSHION
-
1209116-06192 BOLT (6X20)BOLT (6X20)
-
1301550-0812A BOLTBOLT
-
1444434-40H10 HOSE, TANK & VALVEHOSE, TANK & VALVE
-
1509401-11413 CLIPCLIP
-
1644240-38A00 VALVE, BREATHERVALVE, BREATHER
-
1744880-40H00 BRACKETBRACKET
-
1844894-24A00 ...CUSHION...CUSHION
-
1901547-0610A BOLTBOLT
-
2044892-24A00 PLATE, VALVEPLATE, VALVE
-
2144894-24A00 ...CUSHION...CUSHION
-
2202142-0408A SCREWSCREW
-
2309352-50903-600 HOSE (5X9X600)HOSE (5X9X600)
-
2444424-15H10 HOSE, SIDEHOSE, SIDE
-
2509352-13162-010 HOSE (13.5X16.5X10)HOSE (13.5X16.5X10)
-
2609367-06007 3 WAY3 WAY
-
2709352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
2809407-19401 CLAMP (L:190)CLAMP (L:190)
-
2944283-40H00 PROTECTORPROTECTOR
-
3044541-06J00 CUSHION, TANK SIDECUSHION, TANK SIDE
-
3144545-06J00 CUSHION, FUEL TANK BRACKETCUSHION, FUEL TANK BRACKET
-
3209321-10011 CUSHIONCUSHION
