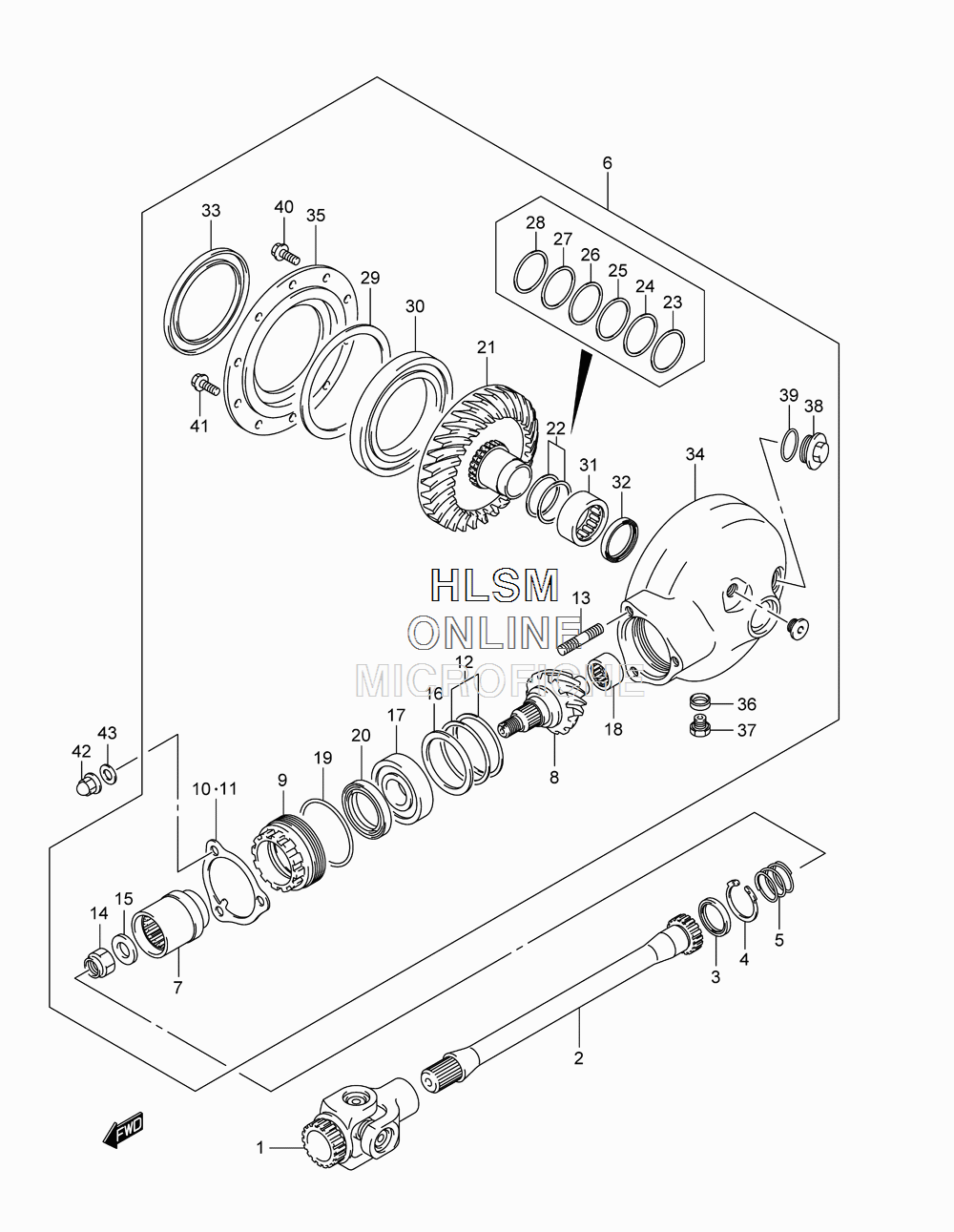

PROPELLER SHAFT/FINAL DRIVE GEAR для Suzuki VZ1500 L3 - 2013 года выпуска`
-
№АртикулНазвание
-
127100-48G20 YOKE, UNIVERSAL JOINTYOKE, UNIVERSAL JOINT
-
227151-40H00 SHAFT, PROPELLER (L:434)SHAFT, PROPELLER (L:434)
-
309283-30026 OIL SEAL (30X40.5X5.5)OIL SEAL (30X40.5X5.5)
-
409381-40003 CIRCLIPCIRCLIP
-
509440-30008 SPRINGSPRING
-
627300-48860-20H GEAR & CASE SET, FINAL BEVEL (SILVER)GEAR & CASE SET, FINAL BEVEL (SILVER)
-
727172-24A00 ...COUPLING, FINAL DRIVE GEAR...COUPLING, FINAL DRIVE GEAR
-
827311-24A10 ...GEAR, FINAL DRIVE BEVEL(NT:12)...GEAR, FINAL DRIVE BEVEL(NT:12)
-
927312-24A02 ...STOPPER, FINAL DRIVE BEARING...STOPPER, FINAL DRIVE BEARING
-
1027313-38B00 ...PLATE, BEARING STOPPER...PLATE, BEARING STOPPER
-
1127313-38B10 ...PLATE, BEARING STOPPER...PLATE, BEARING STOPPER
-
1227445-24810 ...SHIM SET, FINAL DRIVE GEAR...SHIM SET, FINAL DRIVE GEAR
-
1309108-10106 ...STUD BOLT...STUD BOLT
-
1409159-16003 ...NUT...NUT
-
1509160-16029 ...WASHER (16X29X4)...WASHER (16X29X4)
-
1609160-54001 ...WASHER (54X68X1.5)...WASHER (54X68X1.5)
-
1709262-28023 ...BEARING (28X68X18)...BEARING (28X68X18)
-
1809263-20062 ...BEARING (20X34X18)...BEARING (20X34X18)
-
1909280-64003 ...O RING (D:3.1,ID:63.9)...O RING (D:3.1,ID:63.9)
-
2009283-47002 ...OIL SEAL (45.5X58X7)...OIL SEAL (45.5X58X7)
-
2127320-48G00 ...GEAR, FINAL DRIVEN...GEAR, FINAL DRIVEN
-
2227326-48811 ...SHIM SET, FINAL DRIVEN, LEFT...SHIM SET, FINAL DRIVEN, LEFT
-
2309181-40011 ......SHIM (40X46.8X0.95)......SHIM (40X46.8X0.95)
-
2409181-40013 ......SHIM (40X46.8X1.05)......SHIM (40X46.8X1.05)
-
2509181-40014 ......SHIM (40X46.8X1.1)......SHIM (40X46.8X1.1)
-
2609181-40176 ......SHIM (40X50X1.2)......SHIM (40X50X1.2)
-
2709181-40182 ......SHIM (40X50X1.4)......SHIM (40X50X1.4)
-
2809181-40212 ......SHIM (40X50X1.5)......SHIM (40X50X1.5)
-
2927327-38810 ...SHIM SET, FINAL DRIVE, RIGHT...SHIM SET, FINAL DRIVE, RIGHT
-
3009262-85001 ...BEARING (85X130X14)...BEARING (85X130X14)
-
3109263-40016 ...BEARING (40X50X20)...BEARING (40X50X20)
-
3209283-38026 ...OIL SEAL (38X46X6)...OIL SEAL (38X46X6)
-
3309289-85001 ...OIL SEAL (85X110X11)...OIL SEAL (85X110X11)
-
3427450-48G70-20H ...CASE, FINAL GEAR (SILVER)...CASE, FINAL GEAR (SILVER)
-
3527461-38B00 ...CASE, FINAL GEAR BEARING...CASE, FINAL GEAR BEARING
-
3609168-14002 ...GASKET (13.8X18.8X4.8)...GASKET (13.8X18.8X4.8)
-
3709247-14002 ...PLUG (MAGNET)...PLUG (MAGNET)
-
3809259-30007 ...PLUG (30X9)...PLUG (30X9)
-
3909280-26006 ...O RING (D:3.1,ID:26.4)...O RING (D:3.1,ID:26.4)
-
4001550-0825A ...BOLT...BOLT
-
4101550-1025A ...BOLT...BOLT
-
4209159-10026 NUTNUT
-
4309164-10008 WASHERWASHER
