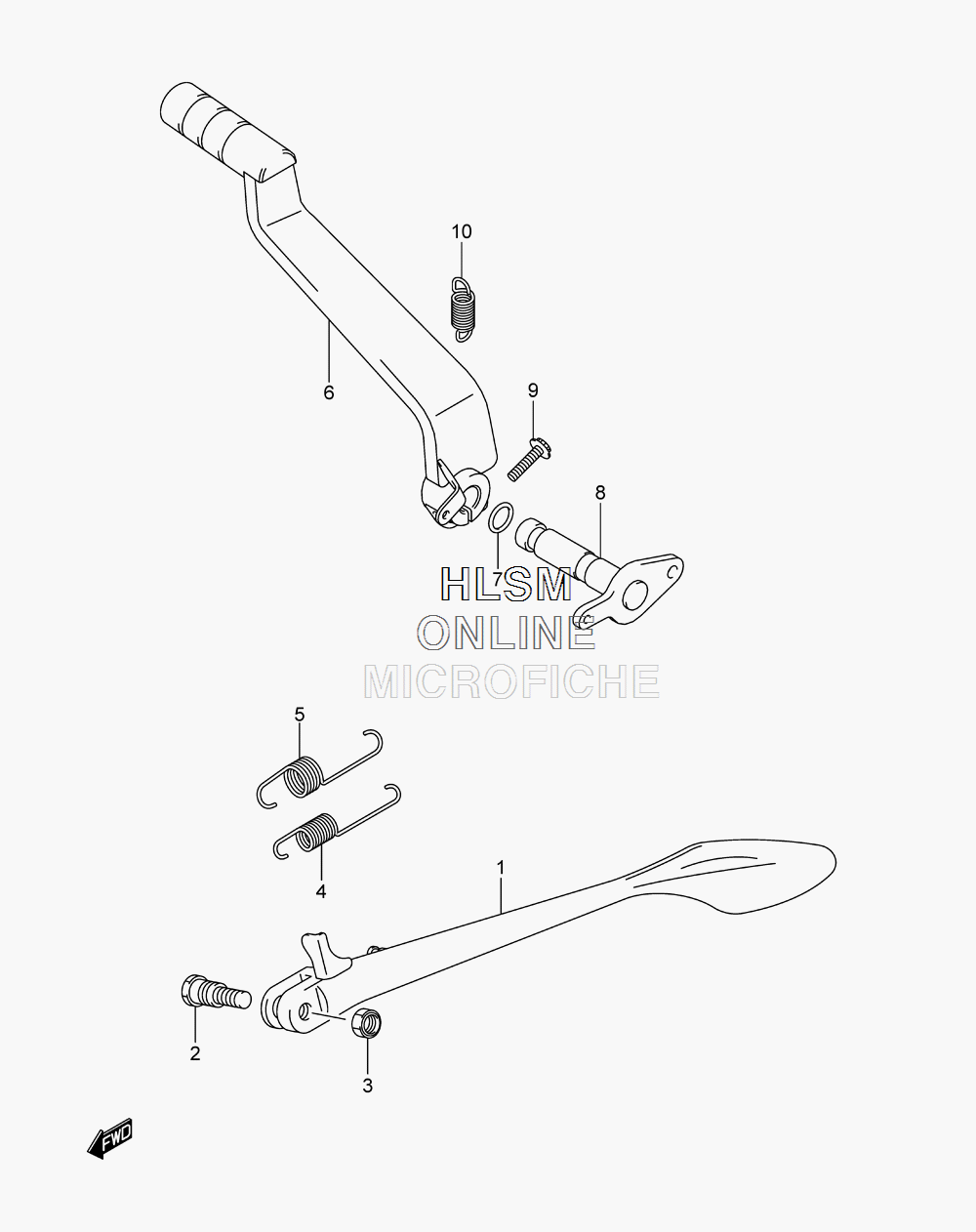

BRAKE PEDAL W/ STAND для Suzuki VZ1500 L3 - 2013 года выпуска
-
№АртикулНазвание
-
142310-40H00 STAND, PROPSTAND, PROP
-
209111-10058 BOLT (10X37.5)BOLT (10X37.5)
-
342321-03FK0 NUTNUT
-
409443-14069 SPRINGSPRING
-
509443-19012 SPRINGSPRING
-
643110-40H01 PEDAL, BRAKEPEDAL, BRAKE
-
709280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
843120-40H00 ARM, BRAKE RODARM, BRAKE ROD
-
907120-0625A BOLTBOLT
-
1009443-11030 SPRINGSPRING
