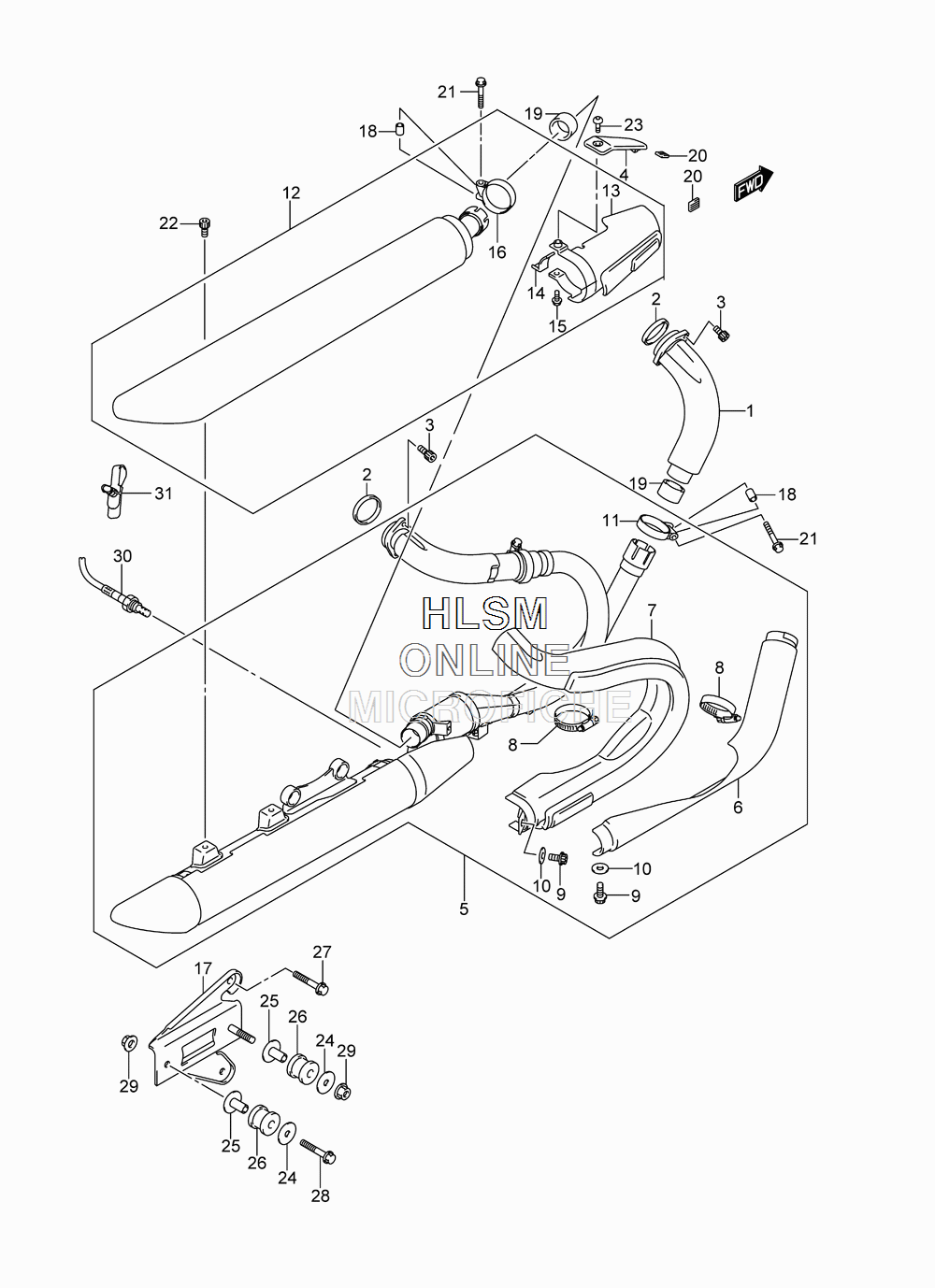

MUFFLER для Suzuki VZ1500 L3 - 2013 года выпуска

№

Артикул

Название
1

14150-40H00 PIPE, EXHAUST FR

PIPE, EXHAUST FR
2

14181-31D00 GASKET, EXHAUST PIPE

GASKET, EXHAUST PIPE
3

09106-08165 BOLT (8X25)

BOLT (8X25)
4

14260-40H00 COVER, MUF REAR UPPER

COVER, MUF REAR UPPER
5

14305-40H20-H01 MUFFLER, FRONT

MUFFLER, FRONT
6

14170-40H00 ...COVER, EXHAUST FRONT

...COVER, EXHAUST FRONT
7

14180-40H00 ...COVER, EXHAUST REAR

...COVER, EXHAUST REAR
8

09402-45504 ...CLAMP

...CLAMP
9

14451-40H00 ...BOLT

...BOLT
10

14176-40H00 ...SPACER

...SPACER
11

14459-40H00 ...CLAMP, CONNECTOR

...CLAMP, CONNECTOR
12

14340-40H20-H01 BODY, MUFFLER REAR

BODY, MUFFLER REAR
13

14398-40H00 ...COVER, MUFFLER

...COVER, MUFFLER
14

14399-40H00 ...CLAMP

...CLAMP
15

14451-40H00 ...BOLT

...BOLT
16

14459-40H00 ...CLAMP, CONNECTOR

...CLAMP, CONNECTOR
17

14410-40H00 BRACKET

BRACKET
18

14458-45G10 SPACER

SPACER
19

14771-40H00 CONNECTOR

CONNECTOR
20

14795-10FA0 GROMMET

GROMMET
21

09103-08365 BOLT (8X35)

BOLT (8X35)
22

09106-08107 BOLT (8X20)

BOLT (8X20)
23

09139-06172 SCREW (6X10)

SCREW (6X10)
24

09160-08146 WASHER (8.5X33X1.5)

WASHER (8.5X33X1.5)
25

09180-08156 SPACER (8.6X12X27.1)

SPACER (8.6X12X27.1)
26

09320-12049 CUSHION

CUSHION
27

01550-0816A BOLT

BOLT
28

01550-0845A BOLT

BOLT
29

08361-2508A NUT

NUT
30

18213-48G00 SENSOR, OXYGEN

SENSOR, OXYGEN
31

09407-05403 CLAMP (L:88)

CLAMP (L:88)
