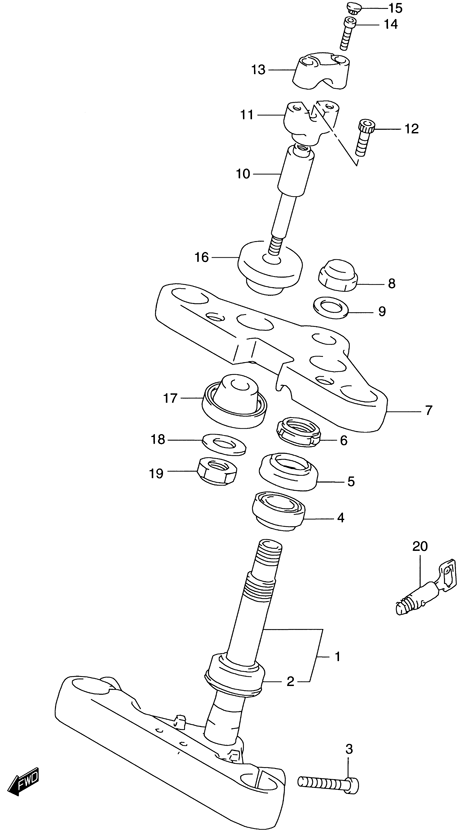

STEERING STEM для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
151410-39A21 BRACKET (UNDER)BRACKET (UNDER)
-
209265-30009 ...BEARING (30X55X17)...BEARING (30X55X17)
-
307130-10307 BOLT (LOWER)BOLT (LOWER)
-
409265-25019 BEARING (UPPER) (25X47X15)BEARING (UPPER) (25X47X15)
-
551643-49002 DUST SEALDUST SEAL
-
651631-28000 NUT, STEERING STEMNUT, STEERING STEM
-
751311-39A00 BRACKET (UPPER)BRACKET (UPPER)
-
851353-24B00 NUTNUT
-
951356-24B01 WASHERWASHER
-
1056231-38A50 STAY, HANDLESTAY, HANDLE
-
1156221-38A01 HOLDER, HANDLE (LOWER)HOLDER, HANDLE (LOWER)
-
1207130-10257 BOLTBOLT
-
1356211-38A01 HOLDER, HANDLE (UPPER)HOLDER, HANDLE (UPPER)
-
1407130-08253 BOLTBOLT
-
1509250-06009 CAPCAP
-
1656240-38A42 CUSHION, HANDLE STAY (UPPER)CUSHION, HANDLE STAY (UPPER)
-
1756242-39A12 CUSHION, HANDLE STAY (LOWER)CUSHION, HANDLE STAY (LOWER)
-
1851354-38A40 WASHERWASHER
-
1909159-10027 NUTNUT
-
2051900-38810 LOCK SET, STEERINGLOCK SET, STEERING
