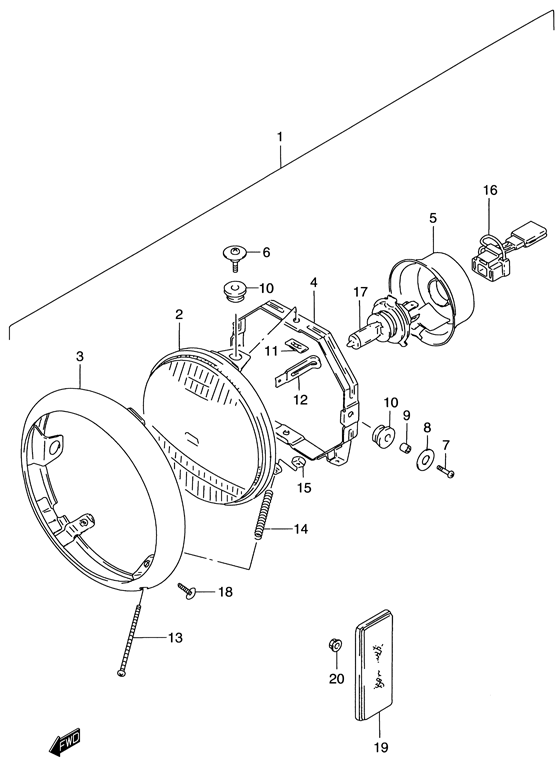

HEADLAMP для Suzuki VS800GL Y - 2000 года выпуска

№

Артикул

Название
1

35100-38A30-999 HEADLAMP ASSY.

HEADLAMP ASSY.
2

35121-38A30 ...UNIT, LAMP

...UNIT, LAMP
3

35111-38A00 ...RIM

...RIM
4

35130-38A00 ...RING, MOUNTING

...RING, MOUNTING
5

35173-38A00 ...COVER, SOCKET

...COVER, SOCKET
6

35136-38A00 ...SCREW

...SCREW
7

09125-05102 ...SCREW

...SCREW
8

09160-05003 ...WASHER (5.5X18X1.0)

...WASHER (5.5X18X1.0)
9

35133-45230 ...SPACER

...SPACER
10

35139-45230 ...CUSHION

...CUSHION
11

35155-48510 ...NUT

...NUT
12

09404-06429 ...CLAMP (L:60)

...CLAMP (L:60)
13

35151-38A00 ...SCREW, ADJUST

...SCREW, ADJUST
14

35154-31300 ...SPRING

...SPRING
15

35135-45600 ...NUT

...NUT
16

36853-38A00 ...SOCKET

...SOCKET
17

09471-12060 BULB (12V,60/55W)

BULB (12V,60/55W)
18

02142-05127 SCREW

SCREW
19

35950-43431 REFLEX REFLECTOR, SIDE (FRONT)

REFLEX REFLECTOR, SIDE (FRONT)
20

08310-00053 NUT

NUT
