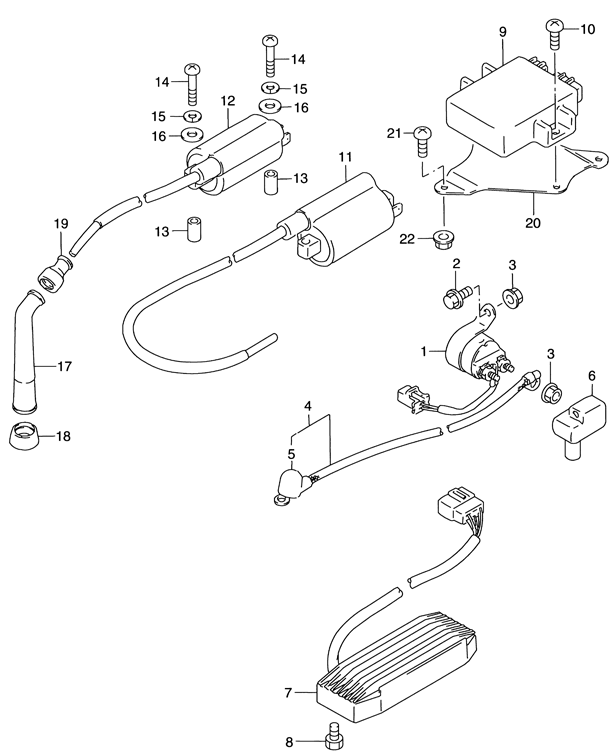

ELECTRICAL для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
131800-15501 RELAY, STARTING MOTORRELAY, STARTING MOTOR
-
201550-06103 BOLTBOLT
-
308361-35068 NUTNUT
-
433850-38A00 LEAD WIRE, STARTING MOTORLEAD WIRE, STARTING MOTOR
-
531861-48B10 ...CAP...CAP
-
631861-38A00 CAP, TERMINALCAP, TERMINAL
-
732800-12E01 RECTIFIER ASSY.RECTIFIER ASSY.
-
801500-06103 SCREWSCREW
-
932900-38A31 IGNITER UNITIGNITER UNIT
-
1002142-06123 SCREWSCREW
-
1133410-38A11 COIL, IGNITION (CORD L:300) (REAR)COIL, IGNITION (CORD L:300) (REAR)
-
1233420-38A11 COIL, IGNITION (CORD L:520) (FRONT)COIL, IGNITION (CORD L:520) (FRONT)
-
1309180-06144 SPACER (6.4X10X19)SPACER (6.4X10X19)
-
1409125-05053 SCREW (5X38)SCREW (5X38)
-
1508321-01053 LOCK WASHERLOCK WASHER
-
16-108322-01053 WASHERWASHER
-
16-208322-01053 WASHER (CALIF. ONLY)WASHER (CALIF. ONLY)
-
1733510-11410 CAP, SPARK PLUGCAP, SPARK PLUG
-
1833541-24510 SEAL, PLUGSEAL, PLUG
-
1933542-38B00 SEAL, HIGHTENSION CORDSEAL, HIGHTENSION CORD
-
2032910-38A10 PLATE, IGNITER FITTINGPLATE, IGNITER FITTING
-
2102112-36123 SCREWSCREW
-
2208316-20063 NUTNUT
