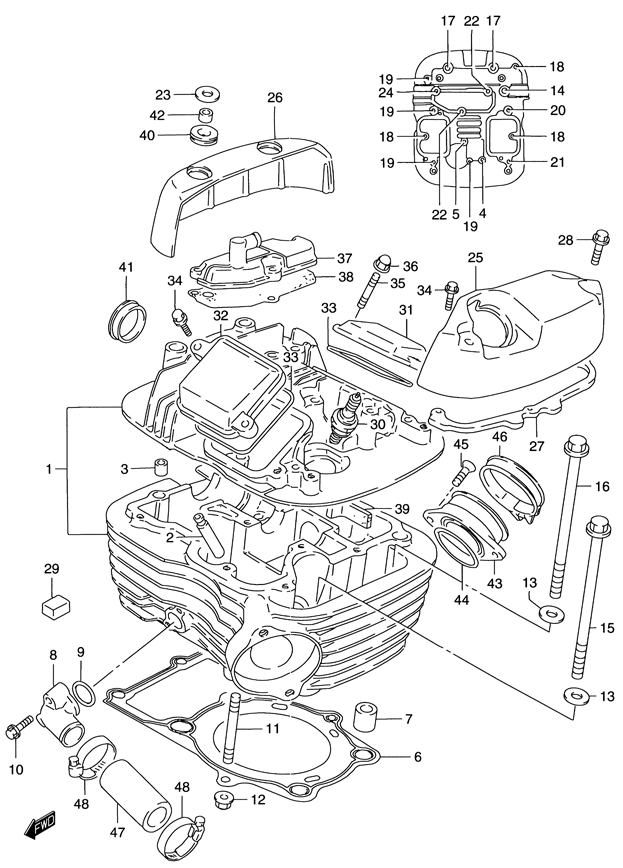

CYLINDER HEAD (REAR) для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
1-211103-39A20 HEAD ASSY., CYLINDER (REAR)HEAD ASSY., CYLINDER (REAR)
-
211115-38A71 ...GUIDE, VALVE...GUIDE, VALVE
-
309206-11004 ...PIN...PIN
-
409103-06101 ...BOLT (6X50)...BOLT (6X50)
-
509103-06102 ...BOLT (6X55)...BOLT (6X55)
-
611142-45C00 GASKET, CYLINDER HEAD (REAR)GASKET, CYLINDER HEAD (REAR)
-
704211-13189 PINPIN
-
811169-45C10 UNION, CYLINDER HEAD WATERUNION, CYLINDER HEAD WATER
-
909280-18004 O-RING (D:2.4,ID:17.8)O-RING (D:2.4,ID:17.8)
-
1001547-06253 BOLTBOLT
-
1109108-08144 STUD BOLT (L:40)STUD BOLT (L:40)
-
12-208316-10083 NUT (GREEN)NUT (GREEN)
-
1309160-10060 WASHERWASHER
-
1409103-08040 BOLT (8X140)BOLT (8X140)
-
1509103-10133 BOLT (10X155)BOLT (10X155)
-
1609103-10134 BOLT (10X165)BOLT (10X165)
-
1709103-08180 BOLT (8X245)BOLT (8X245)
-
18-101550-06257 BOLT (CHROME)BOLT (CHROME)
-
18-201550-06253 BOLT (GREEN)BOLT (GREEN)
-
19-101550-06307 BOLT (CHROME)BOLT (CHROME)
-
19-201550-06303 BOLT (GREEN)BOLT (GREEN)
-
20-207120-06303 BOLT (GREEN)BOLT (GREEN)
-
21-101550-06407 BOLT (CHROME)BOLT (CHROME)
-
21-201550-06403 BOLT (GREEN)BOLT (GREEN)
-
2209103-06102 BOLT (6X55)BOLT (6X55)
-
2309160-08130 WASHERWASHER
-
24-201550-06203 BOLT (GREEN)BOLT (GREEN)
-
2511173-38A03 CAP, HEAD COVER (LEFT)CAP, HEAD COVER (LEFT)
-
2611174-38A02 CAP, HEAD COVER (RIGHT)CAP, HEAD COVER (RIGHT)
-
2711273-38A01 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
28-201244-06357 BOLTBOLT
-
2911152-38A00 PAD, RUBBERPAD, RUBBER
-
30-109482-00334 SPARK PLUG (NGK,DPR8EA-9)SPARK PLUG (NGK,DPR8EA-9)
-
30-209482-00335-111 SPARK PLUG (ND,X24EPR-U9)SPARK PLUG (ND,X24EPR-U9)
-
30-309482-00354 SPARK PLUG (NGK,DPR7EA-9) (OPT)SPARK PLUG (NGK,DPR7EA-9) (OPT)
-
30-409482-00355-111 SPARK PLUG (ND,X22EPR-U9) (OPT)SPARK PLUG (ND,X22EPR-U9) (OPT)
-
30-509482-00330 SPARK PLUG (NGK,DPR9EA-9) (OPT)SPARK PLUG (NGK,DPR9EA-9) (OPT)
-
30-609482-00331-111 SPARK PLUG (ND,X27EPR-U9) (OPT)SPARK PLUG (ND,X27EPR-U9) (OPT)
-
3111175-38A11 CAP, INSPECTION INCAP, INSPECTION IN
-
3211176-38A11 CAP, INSPECTION EXCAP, INSPECTION EX
-
3311177-38A00 GASKET, INSPECTION CAPGASKET, INSPECTION CAP
-
34-201547-06203 BOLT (GREEN)BOLT (GREEN)
-
35-209108-06102 STUD BOLT (BLACK)STUD BOLT (BLACK)
-
36-208313-20063 NUT (GREEN)NUT (GREEN)
-
3711186-38A02 COVER, BREATHERCOVER, BREATHER
-
3811187-38A02-H17 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
3911179-38A00 PLATE, HEAD COVERPLATE, HEAD COVER
-
4009320-13015 CUSHIONCUSHION
-
4109241-30004 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
4209301-08007 BUSHBUSH
-
4313120-45C01 PIPE, INTAKE REARPIPE, INTAKE REAR
-
4409280-40010 O-RING (D:2.4,ID:39.7)O-RING (D:2.4,ID:39.7)
-
4502122-06203 SCREWSCREW
-
4609402-52501 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
4717854-38A00 HOSE, CYLINDER HEAD JOINTHOSE, CYLINDER HEAD JOINT
-
4809402-28511 CLAMPCLAMP
