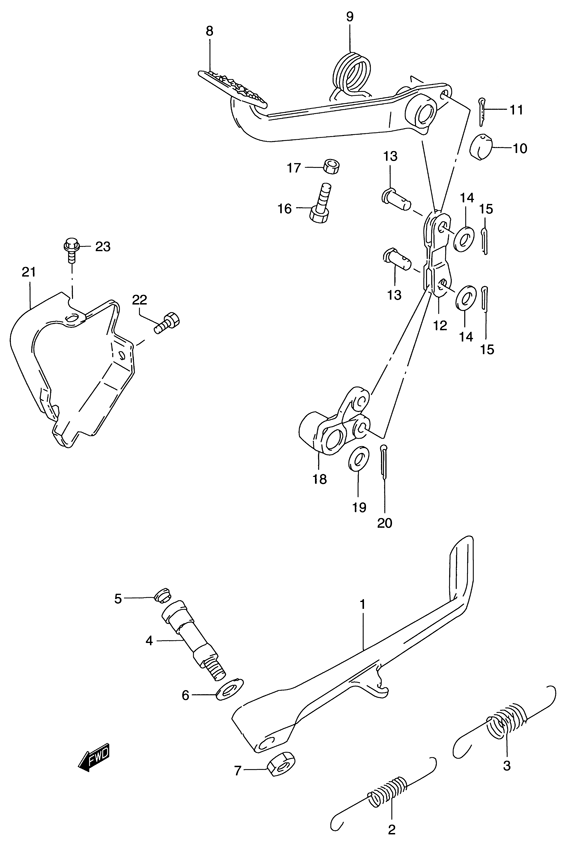

BRAKE PEDAL W/ STAND для Suzuki VS800GL Y - 2000 года выпуска`
-
№АртикулНазвание
-
142310-38A11 STAND, PROPSTAND, PROP
-
209443-13025 SPRING (INNER)SPRING (INNER)
-
309443-18021 SPRING (OUTER)SPRING (OUTER)
-
442341-38B01 BOLTBOLT
-
543575-34500 CAPCAP
-
609181-15158 SHIMSHIM
-
709140-10044 NUTNUT
-
843100-38A31 PEDAL ASSY., BRAKEPEDAL ASSY., BRAKE
-
909448-31034 SPRINGSPRING
-
1043135-07A02 CAPCAP
-
1104111-30308 COTTER PINCOTTER PIN
-
1243230-38A02 LINK, BRAKE RODLINK, BRAKE ROD
-
1309200-08055 PINPIN
-
1408322-01087 WASHERWASHER
-
1504111-20158 COTTER PINCOTTER PIN
-
1601500-06207 BOLTBOLT
-
1708310-00067 NUTNUT
-
1843260-38A22 ARM, BRAKE PEDAL (LEFT)ARM, BRAKE PEDAL (LEFT)
-
1909160-16043 WASHERWASHER
-
2004111-30308 COTTER PINCOTTER PIN
-
2143295-38A31 COVER, BRAKECOVER, BRAKE
-
22-209128-06044 BOLTBOLT
-
2301547-06107 BOLTBOLT
