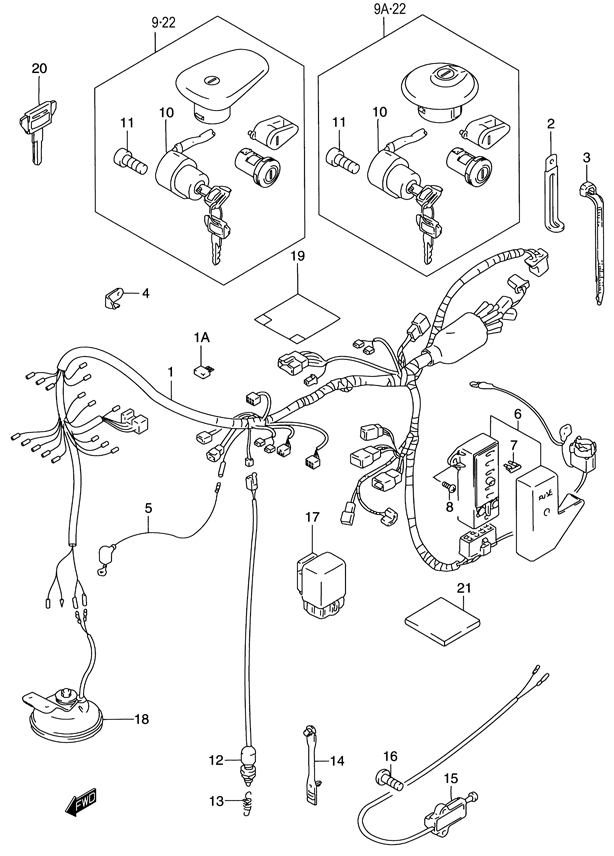

ELECTRICAL - WIRING HARNESS для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
136610-39AC0 HARNESS, WIRINGHARNESS, WIRING
-
1A36611-38A00 ...DIODE...DIODE
-
2-109404-06429 CLAMP (L:60)CLAMP (L:60)
-
2-209404-06432 CLAMP (L:80)CLAMP (L:80)
-
3-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
3-209407-18403 CLAMP (L:165)CLAMP (L:165)
-
436687-38A00 PLATE, COUPLER HOLDERPLATE, COUPLER HOLDER
-
536851-17E00 WIRE, WATER TEMP GAUGEWIRE, WATER TEMP GAUGE
-
636740-39A00 FUSE BOX ASSY.FUSE BOX ASSY.
-
7-109481-10101 ...FUSE (10A)...FUSE (10A)
-
7-209481-25103 ...FUSE (25A)...FUSE (25A)
-
802142-06163 SCREWSCREW
-
937100-38835 LOCK SETLOCK SET
-
9A37000-38840 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
1037110-38A04 ...SWITCH ASSY., IGNITION...SWITCH ASSY., IGNITION
-
1107130-05163 BOLT, IGNITIONBOLT, IGNITION
-
1237740-31D00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
1309443-06046 SPRINGSPRING
-
1409407-05403 CLAMP, SIDE STANDCLAMP, SIDE STAND
-
1537840-39A22 SWITCH ASSY., SIDE STANDSWITCH ASSY., SIDE STAND
-
1602112-76203 SCREWSCREW
-
1738740-24X50 RELAY ASSY., SIDE STANDRELAY ASSY., SIDE STAND
-
1838500-39A00 HORN ASSY.HORN ASSY.
-
1936618-15D20 COVER, HARNESSCOVER, HARNESS
-
20-137146-03A00 KEY, BLANK (TYPE C) (OPT)KEY, BLANK (TYPE C) (OPT)
-
20-237146-03A10 KEY, BLANK (TYPE D) (OPT)KEY, BLANK (TYPE D) (OPT)
-
20-337146-03A20 KEY, BLANK (TYPE E) (OPT)KEY, BLANK (TYPE E) (OPT)
-
20-437146-03A30 KEY, BLANK (TYPE F) (OPT)KEY, BLANK (TYPE F) (OPT)
-
2136920-02200 PROTECTORPROTECTOR
