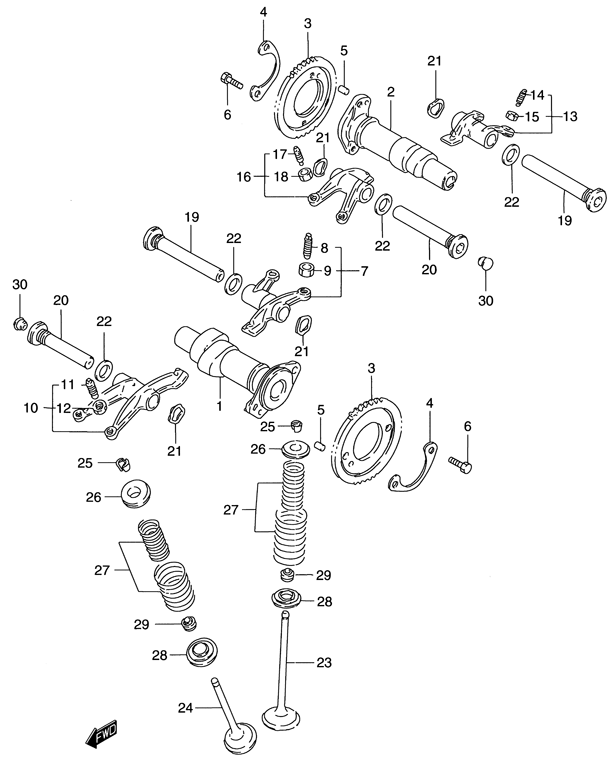

CAMSHAFT W/ VALVES для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
112711-38A03 CAMSHAFT (FRONT)CAMSHAFT (FRONT)
-
212713-38A03 CAMSHAFT (REAR)CAMSHAFT (REAR)
-
312741-37400 SPROCKET, CAMSHAFTSPROCKET, CAMSHAFT
-
412747-44000 WASHERWASHER
-
504221-05109 PINPIN
-
609111-06027 BOLT (6X12.5)BOLT (6X12.5)
-
712840-38A01 ARM, VALVE ROCKER IN (FRONT)ARM, VALVE ROCKER IN (FRONT)
-
812842-38A00 ...SCREW...SCREW
-
912843-32400 ...NUT...NUT
-
1012850-38A01 ARM, VALVE ROCKER EX (FRONT)ARM, VALVE ROCKER EX (FRONT)
-
1112842-38A00 ...SCREW...SCREW
-
1212843-32400 ...NUT...NUT
-
1312845-38A01 ARM, VALVE ROCKER IN (REAR)ARM, VALVE ROCKER IN (REAR)
-
1412842-38A00 ...SCREW...SCREW
-
1512843-32400 ...NUT...NUT
-
1612855-38A01 ARM, VALVE ROCKER EX (REAR)ARM, VALVE ROCKER EX (REAR)
-
1712842-38A00 ...SCREW...SCREW
-
1812843-32400 ...NUT...NUT
-
1912861-38A01 SHAFT, VALVE ROCKER ARM INSHAFT, VALVE ROCKER ARM IN
-
2012871-38A01 SHAFT, VALVE ROCKER ARM EXSHAFT, VALVE ROCKER ARM EX
-
2109164-12018 WASHERWASHER
-
2209168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
2312911-38A10 VALVE, INTAKEVALVE, INTAKE
-
2412912-38A10 VALVE, EXHAUSTVALVE, EXHAUST
-
2512932-24400 COTTER, VALVECOTTER, VALVE
-
2612931-33200 RETAINER, SPRINGRETAINER, SPRING
-
2712920-38A00 SPRING SET, VALVESPRING SET, VALVE
-
2812933-33201 SEAT, SPRINGSEAT, SPRING
-
2909289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
-
3009250-06008 CAPCAP
