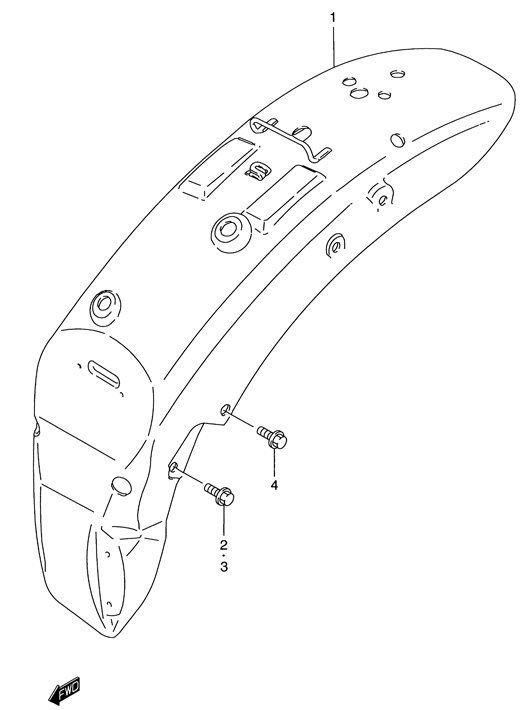

FENDER - REAR для Suzuki VS800GL Y - 2000 года выпуска`
-
№АртикулНазвание
-
1-963110-38A00-33J FENDER, REAR (33J - BLACK) (EXCEPT CALIF.)FENDER, REAR (33J - BLACK) (EXCEPT CALIF.)
-
1-1063110-38A00-19A FENDER, REAR (19A - RED) (EXCEPT CALIF.)FENDER, REAR (19A - RED) (EXCEPT CALIF.)
-
1-1163110-38A20-33J FENDER, REAR (33J - BLACK) (CALIF. ONLY)FENDER, REAR (33J - BLACK) (CALIF. ONLY)
-
1-1263110-38A20-19A FENDER, REAR (19A - RED) (CALIF. ONLY)FENDER, REAR (19A - RED) (CALIF. ONLY)
-
201550-06103 BOLT (EXCEPT CALIF.)BOLT (EXCEPT CALIF.)
-
301550-06103 BOLT (CALIF. ONLY)BOLT (CALIF. ONLY)
-
401550-06123 BOLT (REAR) (CALIF. ONLY)BOLT (REAR) (CALIF. ONLY)
