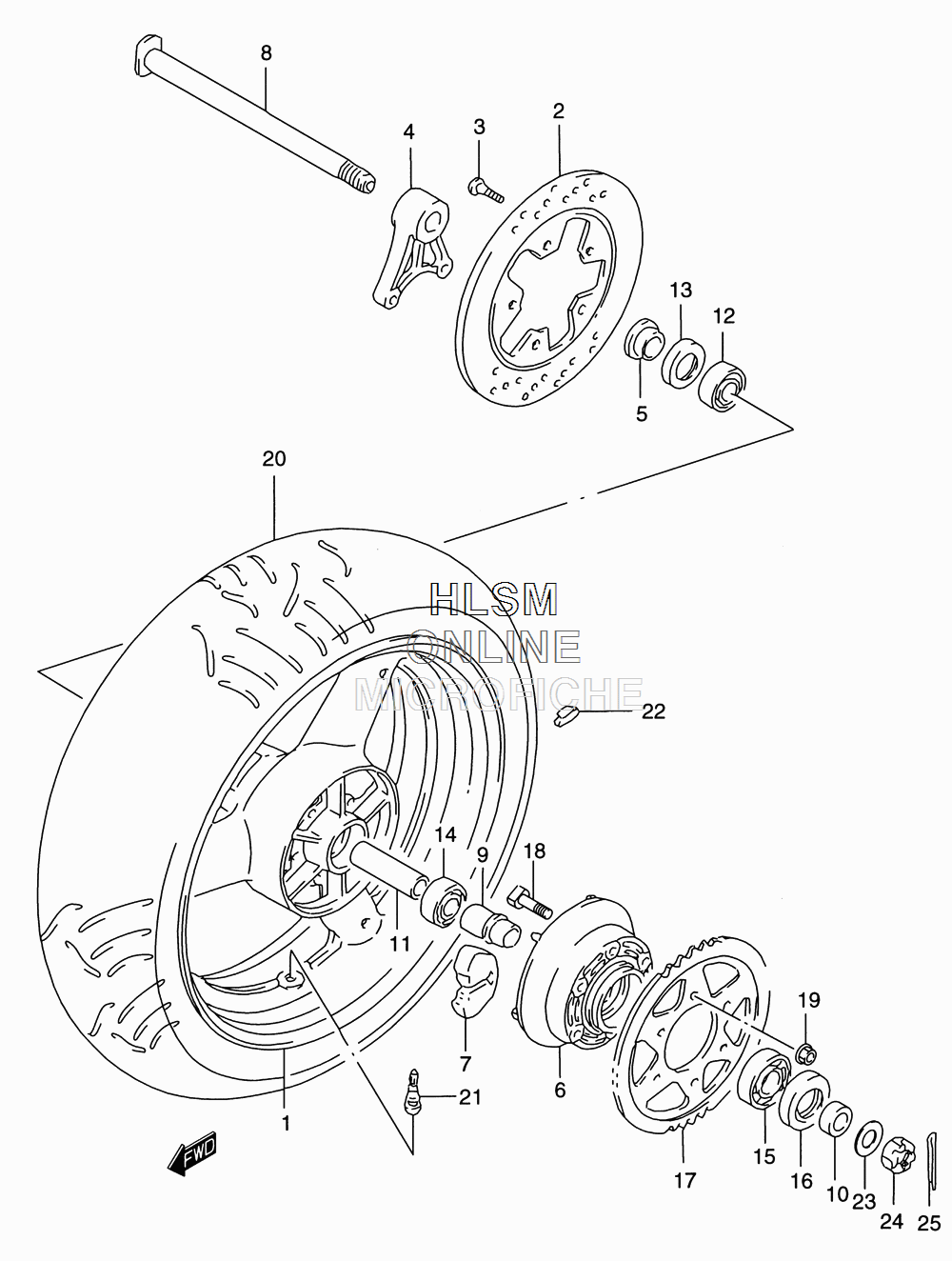

WHEEL - REAR для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
164111-17E11-35W WHEEL, REAR (MT5.50X17) (GRAY)WHEEL, REAR (MT5.50X17) (GRAY)
-
269211-21E00 DISC, REAR BRAKEDISC, REAR BRAKE
-
309106-08125 BOLT (8X33)BOLT (8X33)
-
469721-46E00 BRACKET, REAR CALIPERBRACKET, REAR CALIPER
-
564741-17E00 SPACER, REAR AXLE RIGHT HANDSPACER, REAR AXLE RIGHT HAND
-
664610-46E10 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
764651-17E00 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
864711-17E30 AXLE, REARAXLE, REAR
-
964733-48B00 RETAINER, REAR HUB BEARINGRETAINER, REAR HUB BEARING
-
1064751-46E00 SPACER, REAR AXLE LEFT HANDSPACER, REAR AXLE LEFT HAND
-
1164731-40C00 SPACER, REAR WHEEL HUB BEARINGSPACER, REAR WHEEL HUB BEARING
-
1209262-20114 BEARING, RIGHT HAND (20X47X14)BEARING, RIGHT HAND (20X47X14)
-
1309285-28001 OIL SEAL, RIGHT HAND (28X47X7)OIL SEAL, RIGHT HAND (28X47X7)
-
1409262-20042 BEARING, LEFT HAND (20X47X14)BEARING, LEFT HAND (20X47X14)
-
1509262-25114 BEARING (25X62X17)BEARING (25X62X17)
-
1609285-35001 OIL SEAL (35X62X8)OIL SEAL (35X62X8)
-
1764511-27E00 SPROCKET, REAR (NT:45)SPROCKET, REAR (NT:45)
-
1809119-10037 BOLTBOLT
-
1908319-31107 NUTNUT
-
2065110-27E30 TIRE, REAR 180/55 ZR17 (73W) (BS)TIRE, REAR 180/55 ZR17 (73W) (BS)
-
2143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
2255411-00A00 BALANCER, WHEEL (10G) 0~3BALANCER, WHEEL (10G) 0~3
-
2255412-00A01 BALANCER, WHEEL (20G) 0~3BALANCER, WHEEL (20G) 0~3
-
2309160-18030 WASHER (18.5X28X2.60)WASHER (18.5X28X2.60)
-
2408314-40183 NUTNUT
-
2504111-40408 PIN, COTTERPIN, COTTER
