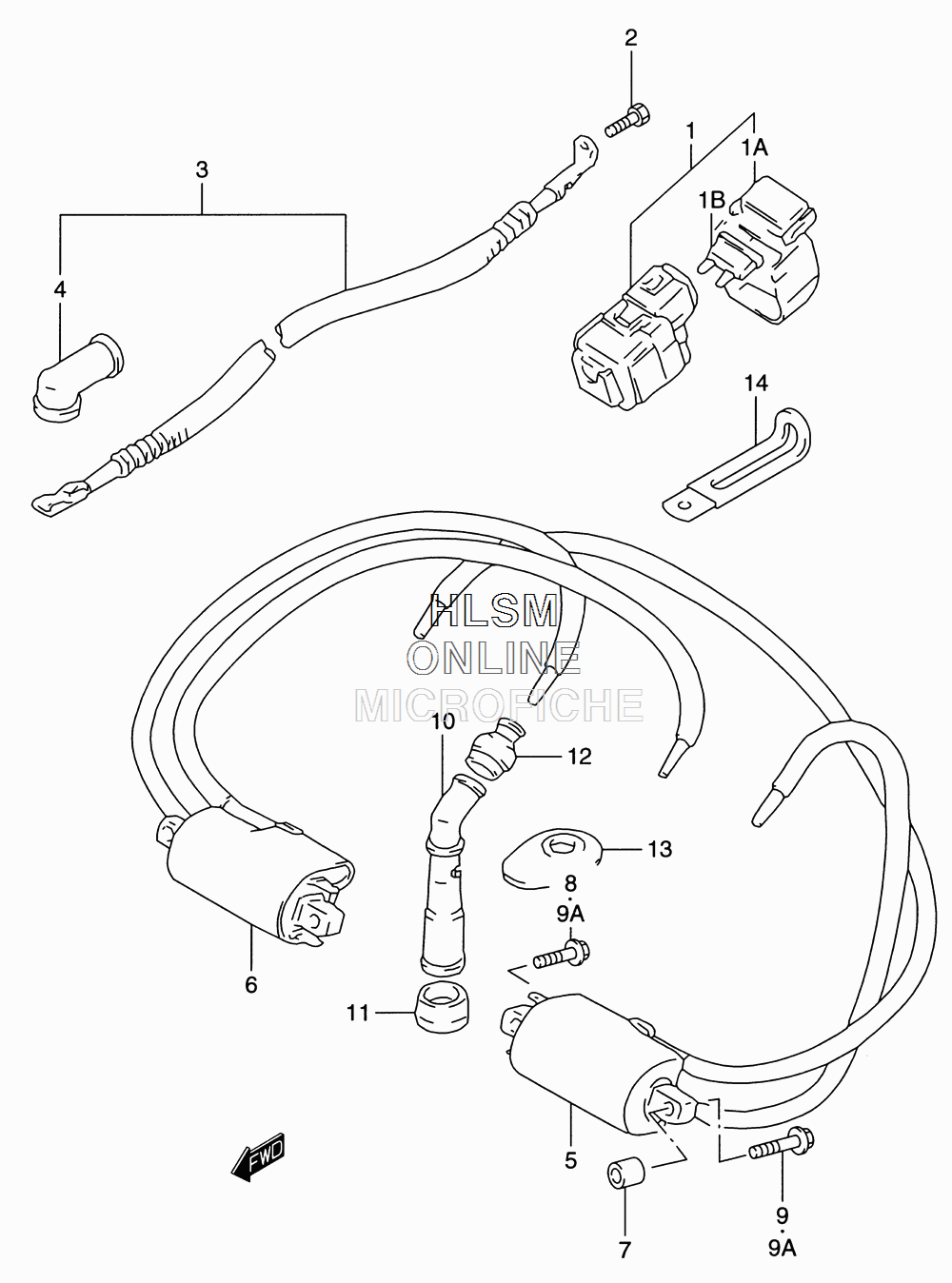

ELECTRICAL - STARTER RELAY AND IGNITION для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
131800-26E00 RELAY ASSY, STARTING MOTOR (INC. 1A-1B)RELAY ASSY, STARTING MOTOR (INC. 1A-1B)
-
1A31861-26E00 COVERCOVER
-
1B09481-30101 FUSE (30A)FUSE (30A)
-
209128-06013 SCREW (6X8)SCREW (6X8)
-
333810-27E00 WIRE, STARTER MOTOR LEAD (INC. 4)WIRE, STARTER MOTOR LEAD (INC. 4)
-
431861-48B10 CAP, STARTER MOTOR LEADCAP, STARTER MOTOR LEAD
-
533410-26E01 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
633420-26E01 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
709180-06095 SPACER (6X12X10)SPACER (6X12X10)
-
9A01550-06253 BOLTBOLT
-
1033510-48B10 CAP, SPARK PLUGCAP, SPARK PLUG
-
1133541-23E01 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
1233542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1333543-48B00 COVER, SPARK PLUG CAPCOVER, SPARK PLUG CAP
-
1409404-06432 CLAMP (L:80)CLAMP (L:80)
