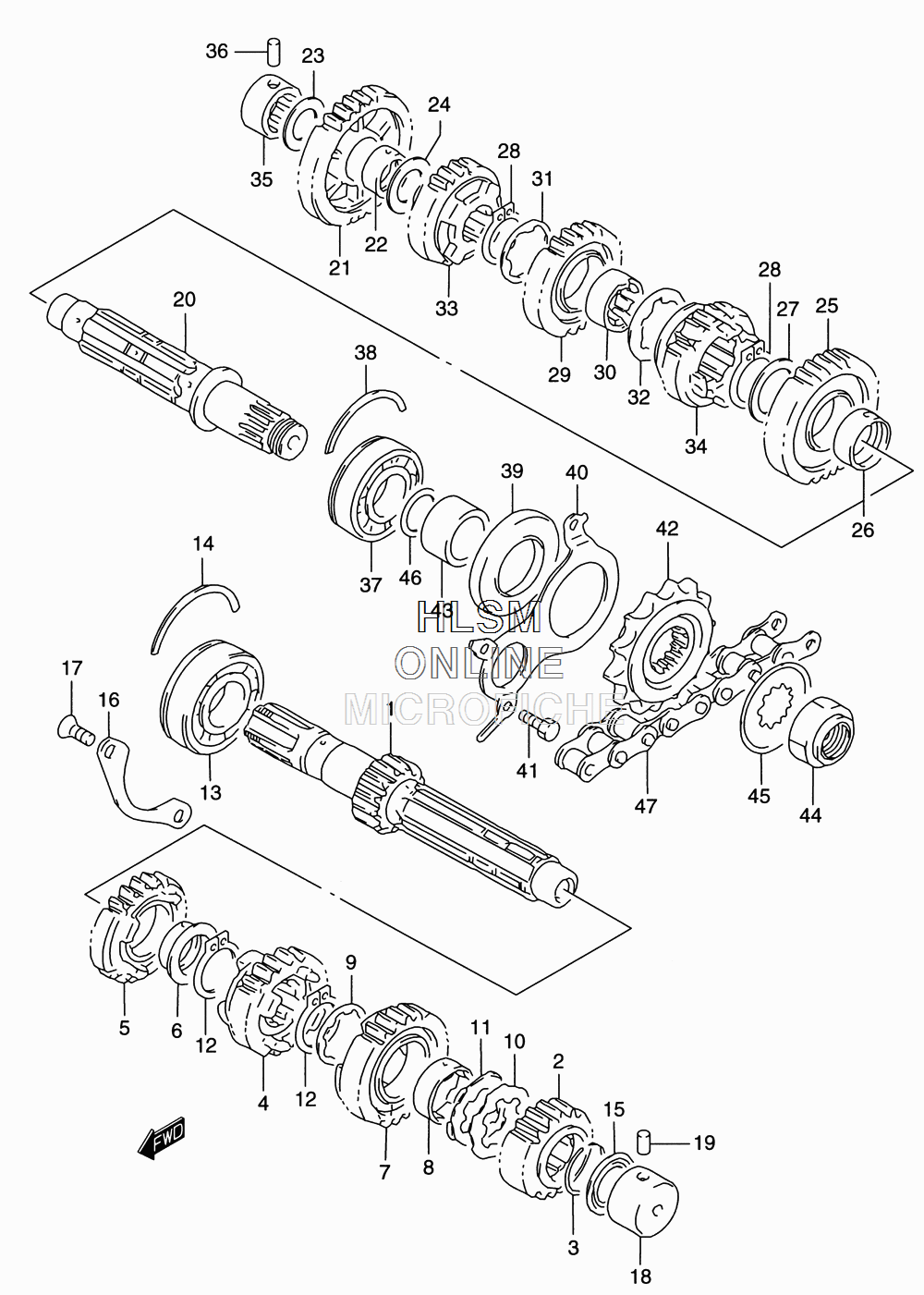

TRANSMISSION для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
124121-40C11 SHAFT, COUNTER (NT:13)SHAFT, COUNTER (NT:13)
-
224221-40C00 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
309380-25013 SNAP RINGSNAP RING
-
424231-48B01 GEAR, 3RD DRIVE (NT:20)GEAR, 3RD DRIVE (NT:20)
-
524241-48B10 GEAR, 4TH DRIVE (NT:22)GEAR, 4TH DRIVE (NT:22)
-
609301-25001 BUSHBUSH
-
724251-48B02 GEAR, 5TH DRIVE (NT:23)GEAR, 5TH DRIVE (NT:23)
-
824252-48B00 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
909167-25021 WASHER (25.1X33X1)WASHER (25.1X33X1)
-
1009167-25013 WASHER (25.1X41X1.5)WASHER (25.1X41X1.5)
-
1109169-25001 WASHER (25.1X37X1)WASHER (25.1X37X1)
-
1209380-25003 SNAP RINGSNAP RING
-
1309262-25051 BEARING (25X62X17)BEARING (25X62X17)
-
1409390-62012 C RINGC RING
-
1509285-20006 OIL SEAL (20X31.2X2.7)OIL SEAL (20X31.2X2.7)
-
1624741-27A00 RETAINER, CNTR SHAFT BEARINGRETAINER, CNTR SHAFT BEARING
-
1702122-06123 SCREWSCREW
-
1809263-20049 BEARING (20X34X17.5)BEARING (20X34X17.5)
-
1904221-07129 PIN 7 X 12PIN 7 X 12
-
2024131-40C11 SHAFT, DRIVESHAFT, DRIVE
-
2124311-48B10 GEAR, 1ST DRIVEN (NT:31)GEAR, 1ST DRIVEN (NT:31)
-
2209300-22005 BUSHBUSH
-
2309181-20251 THRUST WASHER (20X34X1.0)THRUST WASHER (20X34X1.0)
-
2409181-22223 THRUST WASHER (22X34X1.0)THRUST WASHER (22X34X1.0)
-
2524321-48B10 GEAR, 2ND DRIVEN (NT:31)GEAR, 2ND DRIVEN (NT:31)
-
2609300-28002 BUSHBUSH
-
2709181-28167 WASHER (28X36X1.0)WASHER (28X36X1.0)
-
2808331-31286 CIRCLIPCIRCLIP
-
2924331-48B03 GEAR, 3RD DRIVEN (NT:25)GEAR, 3RD DRIVEN (NT:25)
-
3024332-48B01 BUSH, 3RD DRIVEN GEARBUSH, 3RD DRIVEN GEAR
-
3109167-28001 LOCK WASHERLOCK WASHER
-
3209167-28008 WASHER (34X46X2)WASHER (34X46X2)
-
3324341-06B01 GEAR, 4TH DRIVEN (NT:23)GEAR, 4TH DRIVEN (NT:23)
-
3424351-48B05 GEAR, 5TH DRIVEN (NT:21)GEAR, 5TH DRIVEN (NT:21)
-
3509263-20040 BEARING (20X34X20)BEARING (20X34X20)
-
3604221-07209 PINPIN
-
3709267-25011 BEARING (25X62X21.6)BEARING (25X62X21.6)
-
3809390-62012 C RINGC RING
-
3909283-34005 OIL SEAL (34X62X6)OIL SEAL (34X62X6)
-
4024751-40C01 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
4101500-06123 BOLTBOLT
-
4227510-17C10 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
4309180-25100 SPACER (25X34X19)SPACER (25X34X19)
-
4409159-20004 NUT 20MMNUT 20MM
-
4509167-25019 WASHER (25.3X41.6X1)WASHER (25.3X41.6X1)
-
4609280-25001 O RING (D:1,ID:24.5)O RING (D:1,ID:24.5)
-
4727600-07D20-110 CHAIN ASSY, DRIVE (110LE)CHAIN ASSY, DRIVE (110LE)
