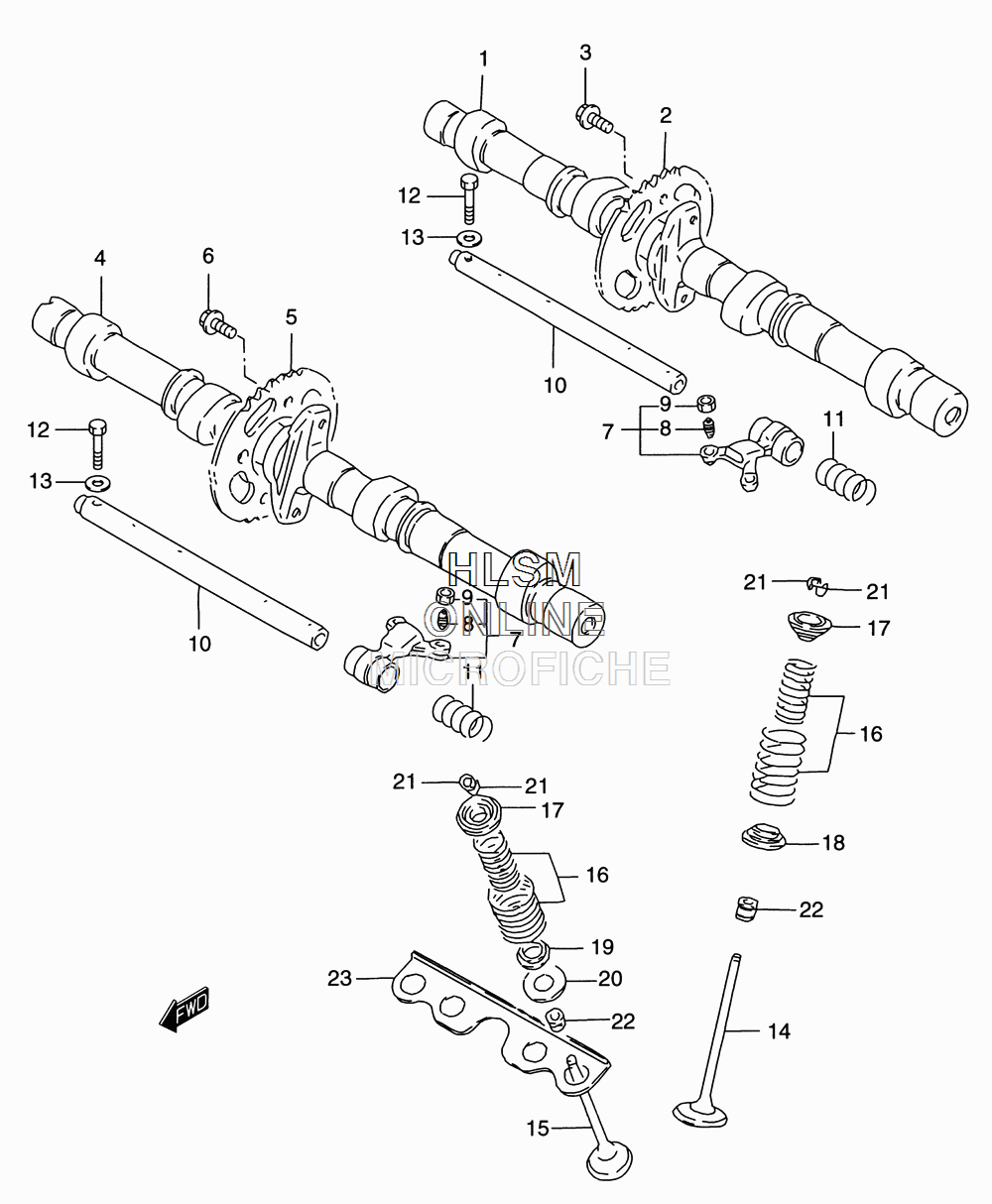

CAMSHAFT W/ VALVES для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска

№

Артикул

Название
1

12711-26D00 CAM SHAFT, INTAKE

CAM SHAFT, INTAKE
2

12741-26D00 SPROCKET

SPROCKET
3

09103-07001 BOLT (7X11)

BOLT (7X11)
4

12721-26D00 CAM SHAFT, EXHAUST

CAM SHAFT, EXHAUST
5

12741-26D00 SPROCKET

SPROCKET
6

09103-07001 BOLT (7X11)

BOLT (7X11)
7

12840-27A01 ARM, ROCKER (INC. 8-9)

ARM, ROCKER (INC. 8-9)
8

12842-49201 SCREW

SCREW
9

12843-27A00 NUT

NUT
10

12861-27A00 SHAFT, ROCKER ARM

SHAFT, ROCKER ARM
11

09440-13014 SPRING

SPRING
12

01800-06303 BOLT (UP TO ENGINE NO. 155699)

BOLT (UP TO ENGINE NO. 155699)
12

09112-06004 BOLT (ENGINE NO. 155700 AND UP)

BOLT (ENGINE NO. 155700 AND UP)
13

08322-01063 WASHER

WASHER
14

12911-06B02 VALVE, INTAKE

VALVE, INTAKE
15

12912-06B00 VALVE, EXHAUST

VALVE, EXHAUST
16

12920-06B00 SPRING SET

SPRING SET
17

12931-27A01 RETAINER

RETAINER
18

12933-81400 SEAT

SEAT
19

12934-27A01 SEAT, EXHAUST INNER

SEAT, EXHAUST INNER
20

12935-27A00 SEAT, EXHAUST OUTER

SEAT, EXHAUST OUTER
21

12932-27A00 COTTER, VALVE

COTTER, VALVE
22

09289-05011 OIL SEAL (5X10X8.7)

OIL SEAL (5X10X8.7)
23

11137-27A02 PLATE

PLATE
