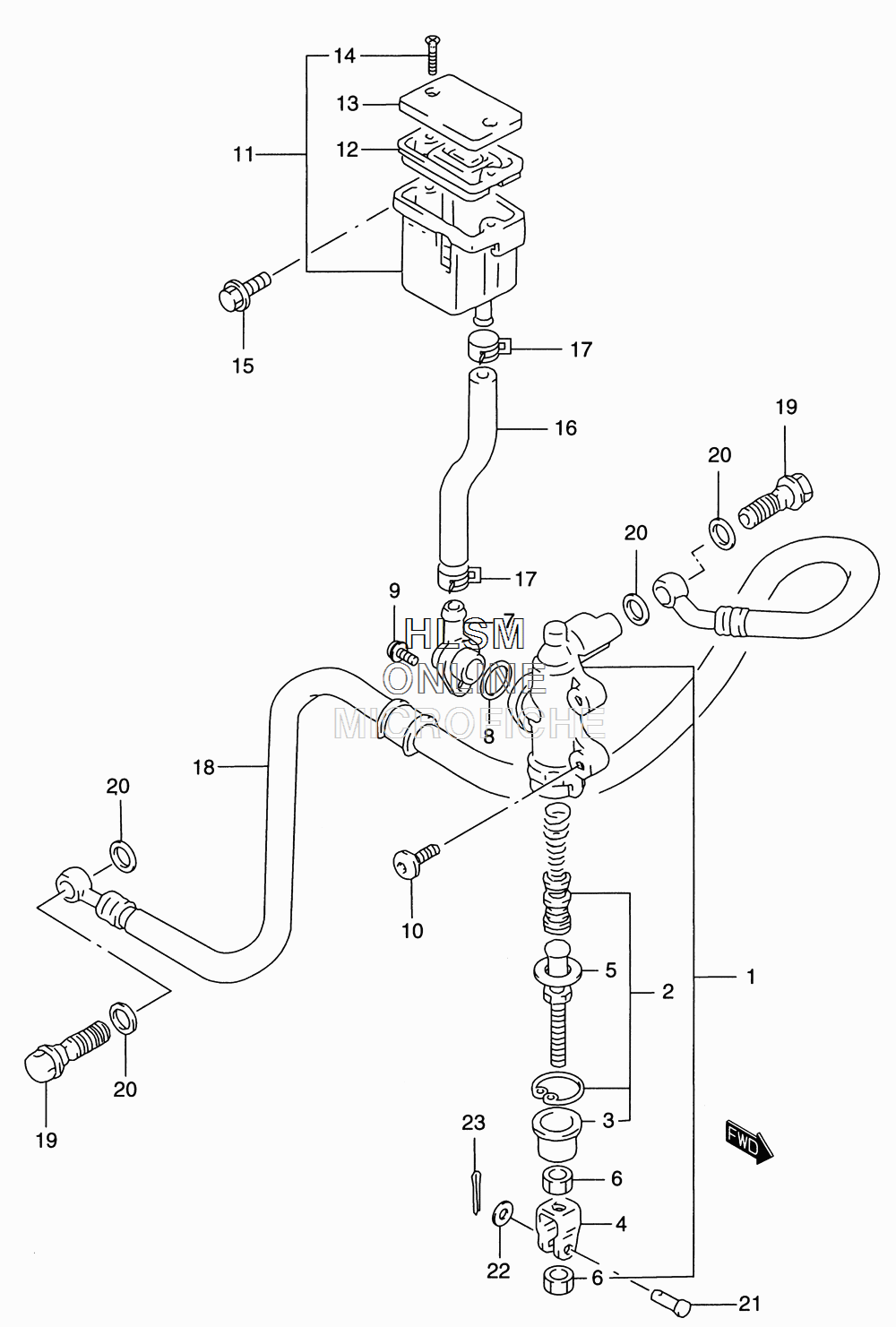

BRAKE - REAR MASTER CYLINDER для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска`
-
№АртикулНазвание
-
169600-17C01 CYLINDER ASSY, REAR MASTER (INC. 2-9)CYLINDER ASSY, REAR MASTER (INC. 2-9)
-
269600-04820 PISTON/CUP SETPISTON/CUP SET
-
369691-00A00 BOOTBOOT
-
469692-27A30 YOKEYOKE
-
569670-48B00 ROD, PUSHROD, PUSH
-
669693-05A00 NUTNUT
-
769672-05A00 CONNECTORCONNECTOR
-
869686-34200 O RINGO RING
-
902112-74123 SCREWSCREW
-
1009106-08118 BOLT (8X20)BOLT (8X20)
-
1169740-38B21 TANK ASSY, RESERVOIR (INC. 12-14)TANK ASSY, RESERVOIR (INC. 12-14)
-
1259667-04700 DIAPHRAGMDIAPHRAGM
-
1359669-05D00 CAPCAP
-
1469689-04A00 SCREWSCREW
-
1501550-06123 BOLTBOLT
-
1669731-26E00 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
1709401-13417 CLIPCLIP
-
1869480-26E00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
1909360-10041 BOLT (10X1.00X22)BOLT (10X1.00X22)
-
2009161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2109200-06037 PINPIN
-
2208322-01063 WASHERWASHER
-
2304111-20158 COTTER PINCOTTER PIN
