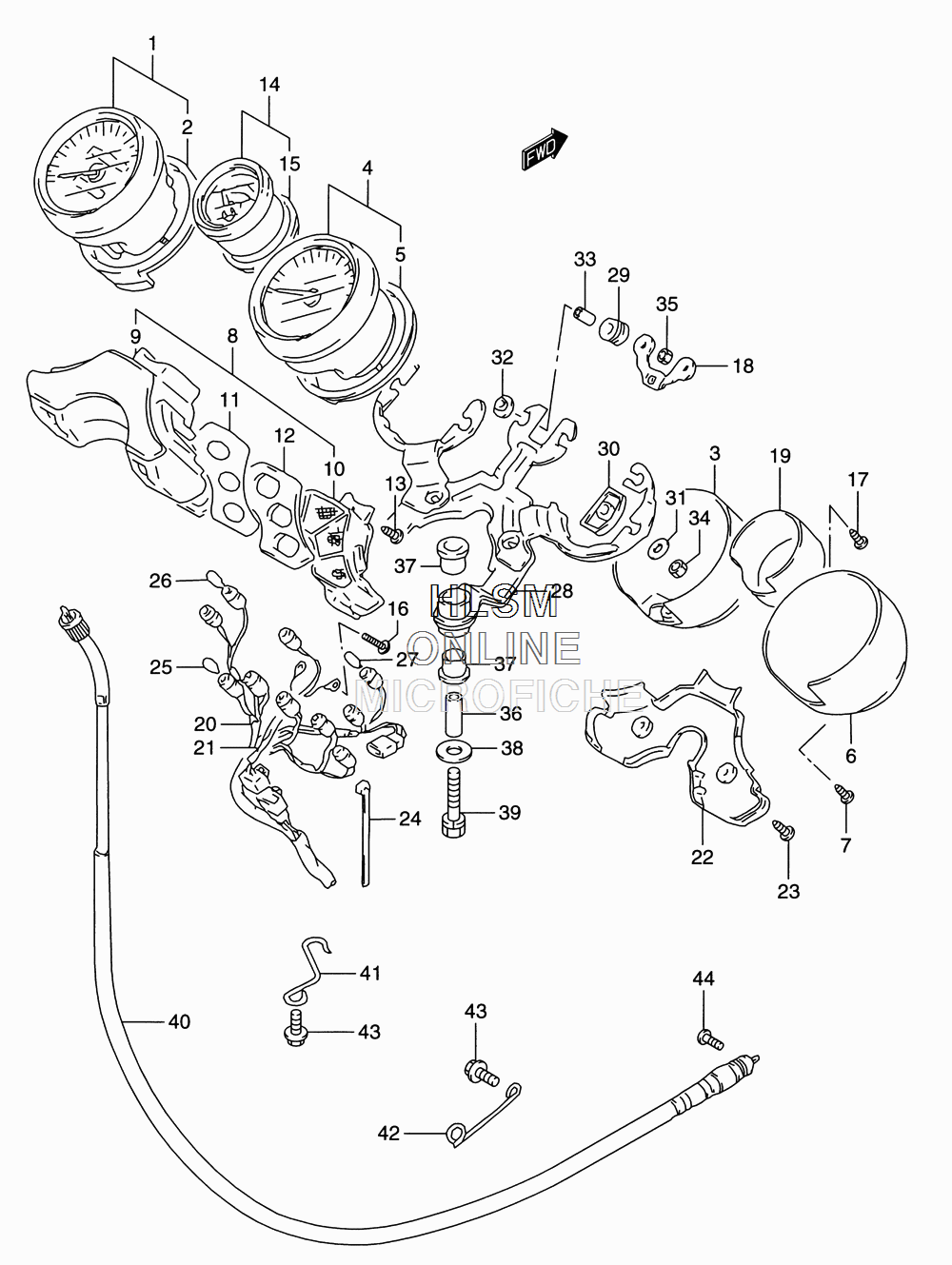

SPEEDOMETER для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска

№

Артикул

Название
1

34110-26D21 SPEEDOMETER (MILE/KILO) (INC. 2)

SPEEDOMETER (MILE/KILO) (INC. 2)
2

34161-26D00 DAMPER

DAMPER
3

34111-26D01 COVER, SPEEDOMETER

COVER, SPEEDOMETER
4

34210-27E00 TACHOMETER (INC. 5)

TACHOMETER (INC. 5)
5

34161-26D00 DAMPER

DAMPER
6

34211-26D01 COVER, TACHOMETER

COVER, TACHOMETER
7

03541-14123 SCREW

SCREW
8

36380-27E00 BOX, PILOT

BOX, PILOT
9

36381-26D00 CASE, UPPER

CASE, UPPER
10

36382-26D20 LOWER CASE

LOWER CASE
11

36393-27E00 PANEL

PANEL
12

36396-27E00 GASKET

GASKET
13

34184-12B00 SCREW

SCREW
14

34410-27E00 FUEL METER (INC. 15)

FUEL METER (INC. 15)
15

34161-26D20 DAMPER

DAMPER
16

34383-09400 SCREW

SCREW
17

02112-74103 SCREW

SCREW
18

34313-26D20 PLATE, SETTING

PLATE, SETTING
19

34311-26D01 COVER, FUEL METER

COVER, FUEL METER
20

34170-27E20 SOCKET, METER

SOCKET, METER
21

34170-27E10 SOCKET, FUEL METER

SOCKET, FUEL METER
22

36383-26D00 COVER, PILOT BOX

COVER, PILOT BOX
23

03512-04149 SCREW

SCREW
24

36385-45300 CLAMP

CLAMP
25

09471-12103 BULB (12V,3W)

BULB (12V,3W)
26

09471-12108 BULB (12V,1.7W)

BULB (12V,1.7W)
27

09471-12077 BULB (12V,1.7W)

BULB (12V,1.7W)
28

34950-26D20 BRACKET, METER

BRACKET, METER
29

34191-26D10 DAMPER

DAMPER
30

34191-26D20 DAMPER

DAMPER
31

09160-05013 WASHER (5.2X16X1)

WASHER (5.2X16X1)
32

34185-26D00 WASHER, FUEL METER

WASHER, FUEL METER
33

34187-26D00 SPACER, FUEL METER

SPACER, FUEL METER
34

08310-00057 NUT

NUT
35

08310-00047 NUT

NUT
36

09303-08002 BUSH (L:31)

BUSH (L:31)
37

09320-12024 CUSHION

CUSHION
38

09160-08133 WASHER (8.5X26X1.6)

WASHER (8.5X26X1.6)
39

01550-08453 BOLT

BOLT
40

34910-27E01 CABLE ASSY, SPEEDOMETER

CABLE ASSY, SPEEDOMETER
41

34938-27E00 GUIDE, SPEEDOMETER CABLE NO.1

GUIDE, SPEEDOMETER CABLE NO.1
42

34939-17D00 GUIDE, SPEEDOMETER CABLE NO.3

GUIDE, SPEEDOMETER CABLE NO.3
43

01550-06123 BOLT

BOLT
44

02112-05163 SCREW

SCREW
