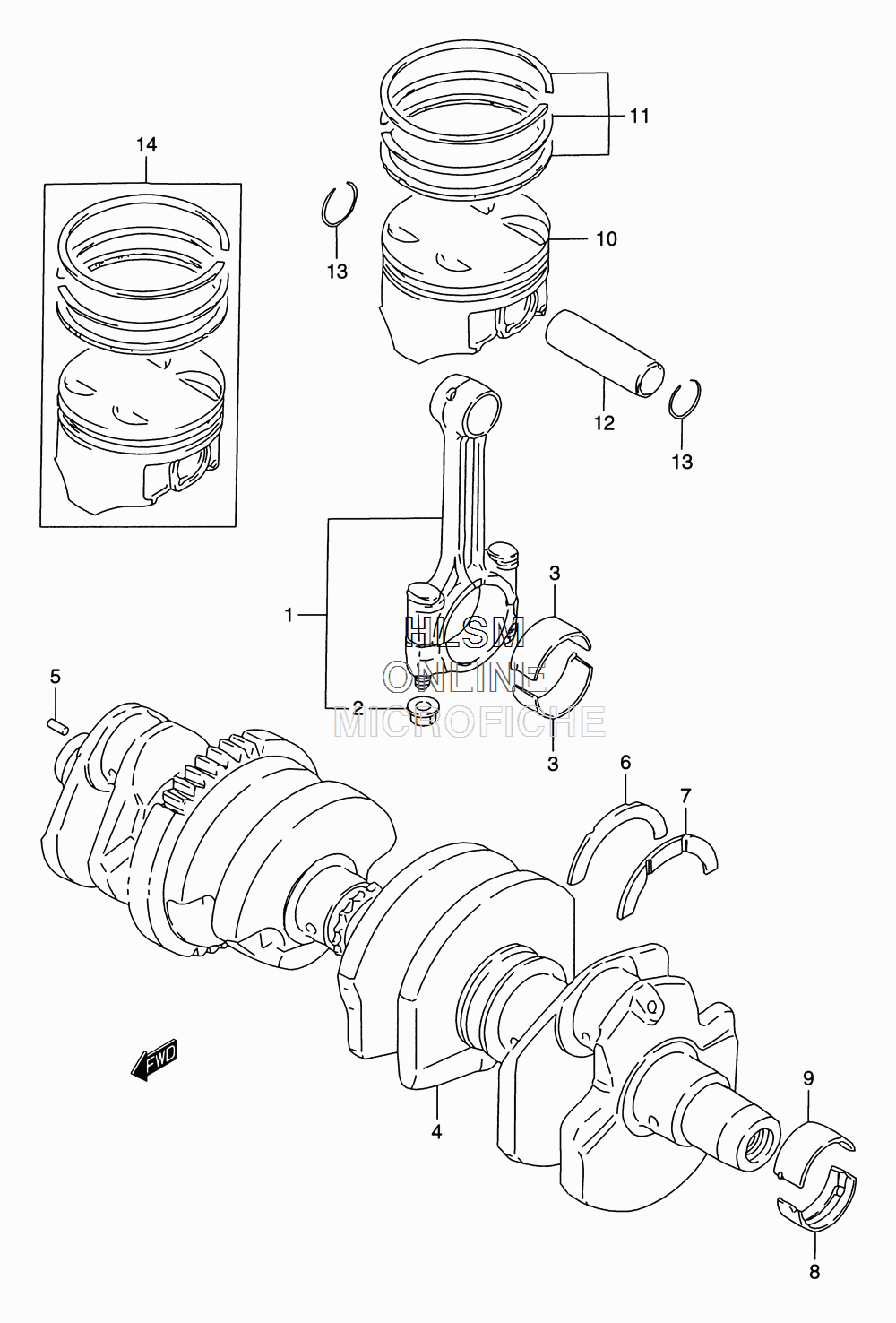

CRANKSHAFT W/ PISTON для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска`
-
№АртикулНазвание
-
112160-40C03 ROD ASSY, CONNECTING (INC. 2)ROD ASSY, CONNECTING (INC. 2)
-
209159-09001 NUTNUT
-
312164-46E01-0A0 BEARINGBEARING
-
312164-46E01-0B0 BEARINGBEARING
-
312164-46E01-0C0 BEARINGBEARING
-
312164-46E01-0D0 BEARINGBEARING
-
412000-27831 CRANKSHAFT SET (INC. 5-7)CRANKSHAFT SET (INC. 5-7)
-
504221-04089 PIN 4X8PIN 4X8
-
612228-48B00-0E0 BEARING, CRANK THRUST (GREEN) RHBEARING, CRANK THRUST (GREEN) RH
-
712228-48B00-0A0 BEARING, CRANK THRUST (PINK) LHBEARING, CRANK THRUST (PINK) LH
-
712228-48B00-0B0 BEARING, CRANK THRUST (BROWN) LHBEARING, CRANK THRUST (BROWN) LH
-
712228-48B00-0C0 BEARING, CRANK THRUST (RED) LHBEARING, CRANK THRUST (RED) LH
-
712228-48B00-0D0 BEARING, CRANK THRUST (YELLOW) LH (INC. 7)BEARING, CRANK THRUST (YELLOW) LH (INC. 7)
-
712228-48B00-0F0 BEARING, CRANK THRUST (BLUE) LHBEARING, CRANK THRUST (BLUE) LH
-
712228-48B00-0G0 BEARING, CRANK THRUST (ORANGE) LHBEARING, CRANK THRUST (ORANGE) LH
-
812229-06B00-0A0 BEARING, CRANKSHAFT (GREEN) LOWERBEARING, CRANKSHAFT (GREEN) LOWER
-
812229-06B00-0B0 BEARING, CRANKSHAFT (BLACK) LOWERBEARING, CRANKSHAFT (BLACK) LOWER
-
812229-06B00-0C0 BEARING, CRANKSHAFT (BROWN) LOWERBEARING, CRANKSHAFT (BROWN) LOWER
-
812229-06B00-0D0 BEARING, CRANKSHAFT (YELLOW) LOWERBEARING, CRANKSHAFT (YELLOW) LOWER
-
912229-06B10-0A0 BEARING, CRANKSHAFT (GREEN) UPPERBEARING, CRANKSHAFT (GREEN) UPPER
-
912229-06B10-0B0 BEARING, CRANKSHAFT (BLACK) UPPERBEARING, CRANKSHAFT (BLACK) UPPER
-
912229-06B10-0C0 BEARING, CRANKSHAFT (BROWN) UPPERBEARING, CRANKSHAFT (BROWN) UPPER
-
912229-06B10-0D0 BEARING, CRANKSHAFT (YELLOW) UPPERBEARING, CRANKSHAFT (YELLOW) UPPER
-
1012111-27E01-0F0 PISTONPISTON
-
1112140-27E20 RING SET, PISTONRING SET, PISTON
-
1212151-05A00 PIN, PISTONPIN, PISTON
-
1309381-20004 CIRCLIPCIRCLIP
-
1412100-27E01-050 PISTON SET (OS:0.5)PISTON SET (OS:0.5)
