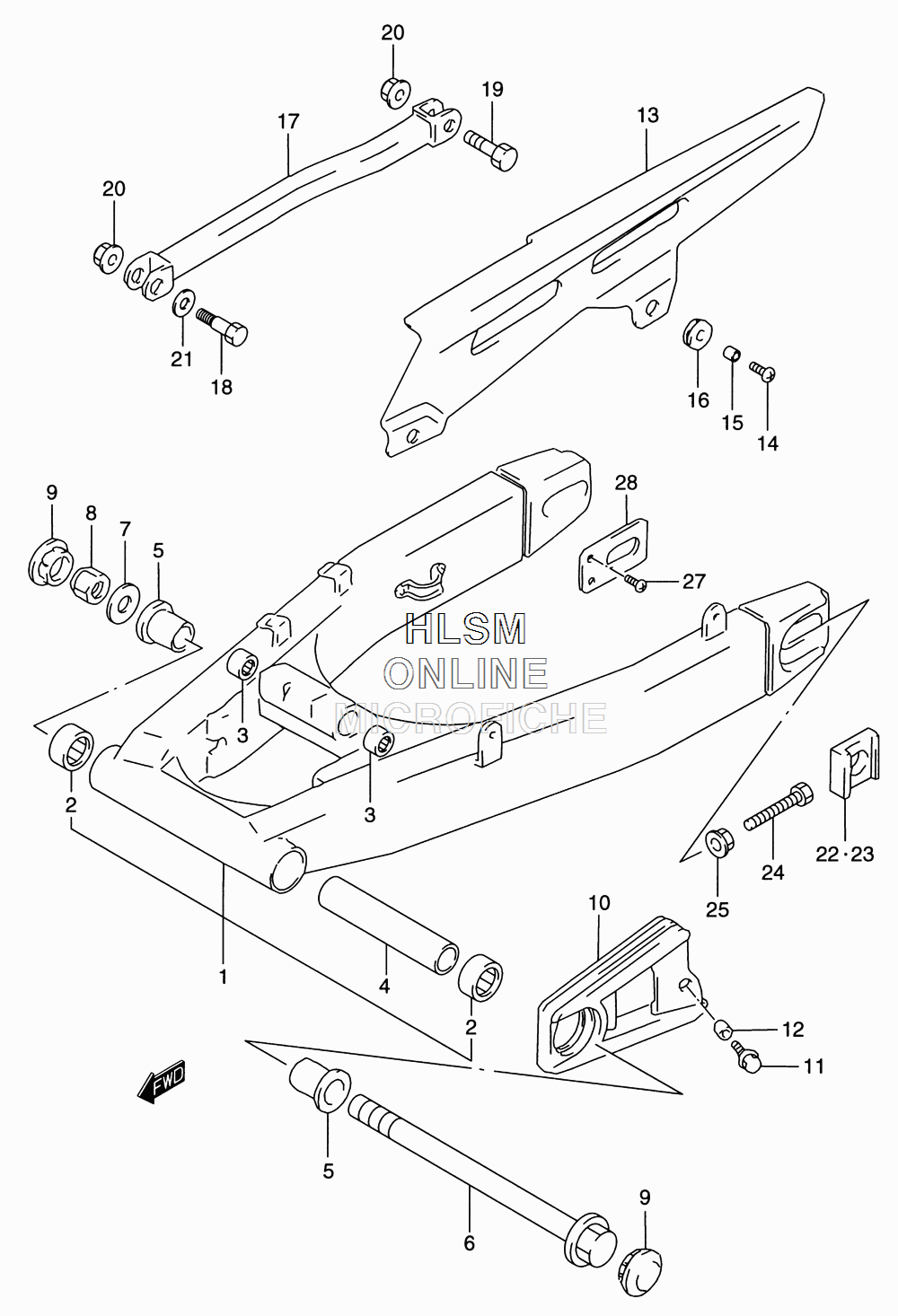

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска`
-
№АртикулНазвание
-
161000-27E10 SWINGING ARM ASSY, REAR (INC. 2-4)SWINGING ARM ASSY, REAR (INC. 2-4)
-
209263-25059 BEARING, PIVOT (25X33X35)BEARING, PIVOT (25X33X35)
-
309263-17037 BEARING (17X24X25)BEARING (17X24X25)
-
461282-31E00 SPACER, PIVOT CENTERSPACER, PIVOT CENTER
-
561251-31E00 SPACER, PIVOT BEARINGSPACER, PIVOT BEARING
-
661211-31E00 SHAFT, PIVOTSHAFT, PIVOT
-
709160-18030 WASHER (18.5X28X2.6)WASHER (18.5X28X2.6)
-
809159-18007 NUT 18MMNUT 18MM
-
943585-21E00 CAP, FRAME PIVOTCAP, FRAME PIVOT
-
1061273-27E11 BUFFER, CHAIN TUCH DIFENSEBUFFER, CHAIN TUCH DIFENSE
-
1109116-06152 BOLT (6X20)BOLT (6X20)
-
1209180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1361311-27E00 CASE, CHAINCASE, CHAIN
-
1409136-06011 SCREW (6X16)SCREW (6X16)
-
1509180-06092 SPACER (6.2X8.3X6.10)SPACER (6.2X8.3X6.10)
-
1609320-08013 CUSHIONCUSHION
-
1764310-27E00-019 TORQUE LINK, REAR (BLACK)TORQUE LINK, REAR (BLACK)
-
1809111-10051 BOLT, FRONT (10X39)BOLT, FRONT (10X39)
-
1909103-10019 BOLT, REAR (10X37)BOLT, REAR (10X37)
-
2008319-31107 NUTNUT
-
2109160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
2261446-27C20 WASHER, CHAIN ADJUSTER RIGHT HANDWASHER, CHAIN ADJUSTER RIGHT HAND
-
2361446-17E10 WASHER, CHAIN ADJUSTER LEFT HANDWASHER, CHAIN ADJUSTER LEFT HAND
-
2409100-08287 BOLT (8X50)BOLT (8X50)
-
2508316-10083 NUTNUT
-
2661124-17E10 PLATE, SWINGING ARMPLATE, SWINGING ARM
-
2702142-06163 SCREWSCREW
