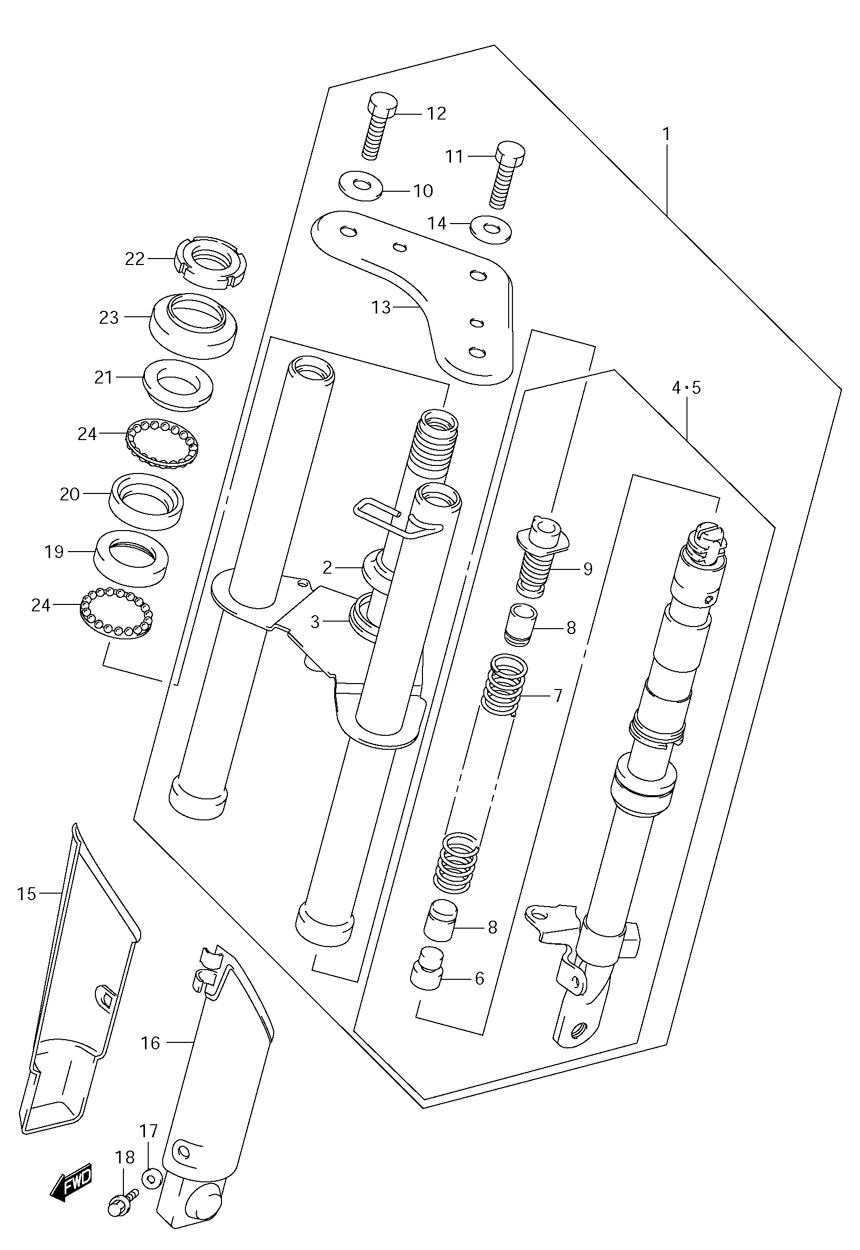

SUSPENSION - FRONT FORK для Suzuki DR-Z70K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    51100-14821 FORK SET, FRONT
    FORK SET, FRONT
  • 2
    51622-14H00 ...RACE, STEERING OUTER
    ...RACE, STEERING OUTER
  • 3
    51644-14H00 ...SEAL, STEERING LOWER
    ...SEAL, STEERING LOWER
  • 4
    51110-14H00 ...TUBE ASSEMBLY, FRONT FORK LOWER, LEFT
    ...TUBE ASSEMBLY, FRONT FORK LOWER, LEFT
  • 5
    51120-14H00 ...TUBE ASSEMBLY, FRONT FORK LOWER, RIGHT
    ...TUBE ASSEMBLY, FRONT FORK LOWER, RIGHT
  • 6
    51116-14H00 ......STOPPER
    ......STOPPER
  • 7
    51171-14H00 ......SPRING
    ......SPRING
  • 8
    51292-14H00 ......STOPPER RUBBER
    ......STOPPER RUBBER
  • 9
    51422-14H00 ......SPRING, JOINT B
    ......SPRING, JOINT B
  • 10
    09160-10144 ...WASHER, FR FORK UPPER B
    ...WASHER, FR FORK UPPER B
  • 11
    01550-1035A ...BOLT, FR FORK UPPER
    ...BOLT, FR FORK UPPER
  • 12
    01550-1035A ...BOLT, FR FORK UPPER
    ...BOLT, FR FORK UPPER
  • 13
    51310-14H00 ...BRACKET, UPPER
    ...BRACKET, UPPER
  • 14
    09160-10033 ...WASHER, FR FORK UPPER A
    ...WASHER, FR FORK UPPER A
  • 15
    51501-14H00 PROTECTOR, FRONT FORK, RIGHT
    PROTECTOR, FRONT FORK, RIGHT
  • 16
    51511-14H00 PROTECTOR, FRONT FORK, LEFT
    PROTECTOR, FRONT FORK, LEFT
  • 17
    09169-06071 WASHER, FRONT FORK PROTECTOR
    WASHER, FRONT FORK PROTECTOR
  • 18
    01547-0612A BOLT, FRONT FORK PROTECTOR
    BOLT, FRONT FORK PROTECTOR
  • 19
    51611-14H00 RACE, STEERING INNER
    RACE, STEERING INNER
  • 20
    51611-20002 RACE, STEERING INNER
    RACE, STEERING INNER
  • 21
    51621-28000 RACE, STEERING OUTER
    RACE, STEERING OUTER
  • 22
    51631-28000 NUT, STEERING STEM
    NUT, STEERING STEM
  • 23
    51643-25001 SEAL, STEERING UPPER
    SEAL, STEERING UPPER
  • 24
    09269-27001 BEARING, STEERING
    BEARING, STEERING
