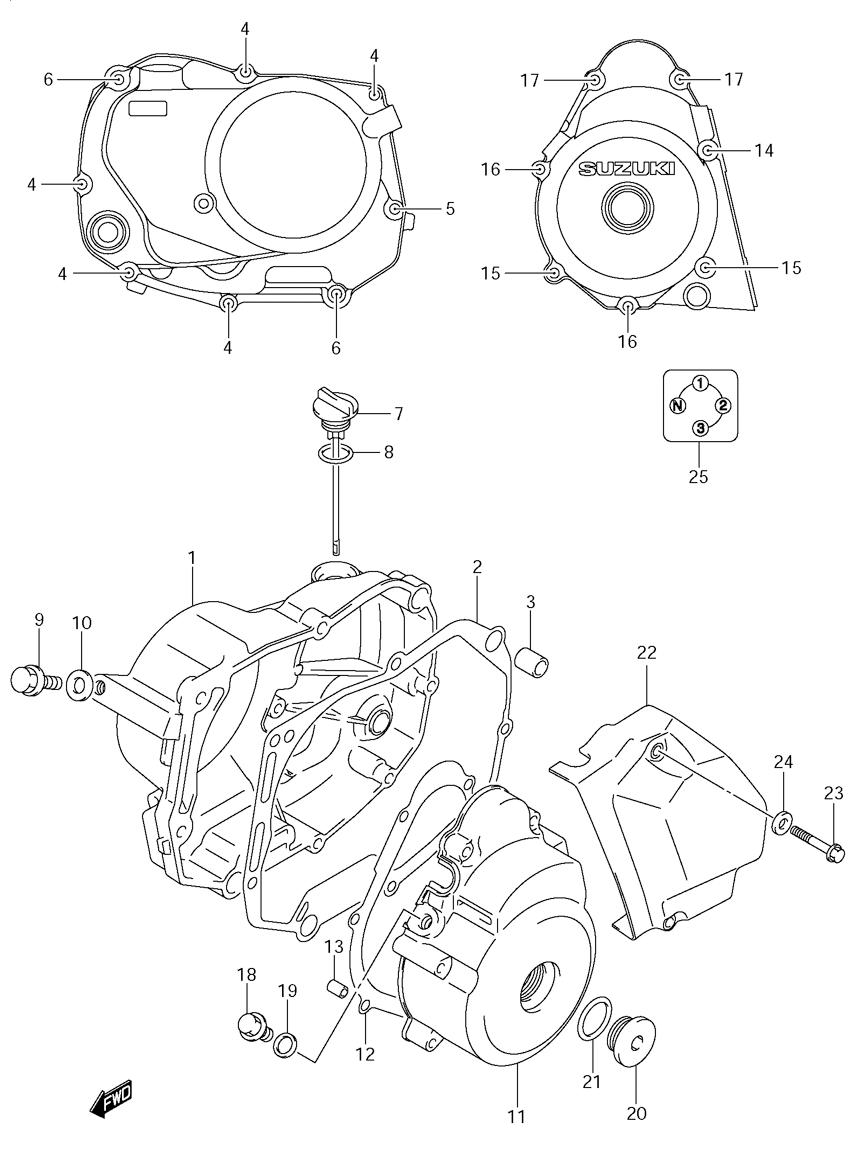

CRANKCASE COVER для Suzuki DR-Z70K9 - 2009 года выпуска`
-
№АртикулНазвание
-
111341-14H00 COVER, CLUTCHCOVER, CLUTCH
-
211482-09420 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-13189 PINPIN
-
401547-0625A BOLTBOLT
-
501547-0635A BOLTBOLT
-
601547-0650A BOLTBOLT
-
711971-055A0 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
809280-16008 O RING, OIL GAUGE (DIAMETER: 3.2,INSIDE DIAMETER: 15.8)O RING, OIL GAUGE (DIAMETER: 3.2,INSIDE DIAMETER: 15.8)
-
901550-0812A PLUG, OIL CHECKPLUG, OIL CHECK
-
1009168-08015 GASKETGASKET
-
1111351-14H00 COVER, MAGNETOCOVER, MAGNETO
-
1211483-09440 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1304211-09129 PINPIN
-
1401547-0630A BOLTBOLT
-
1501547-0640A BOLTBOLT
-
1601547-0650A BOLTBOLT
-
1701547-0690A BOLTBOLT
-
1809247-12006 PLUG, TOPPLUG, TOP
-
1909168-12002 GASKETGASKET
-
2009259-26011 PLUG, HOLEPLUG, HOLE
-
2109280-22008 O RING (DIAMETER: 3.1,INSIDE DIAMETER: 22.7)O RING (DIAMETER: 3.1,INSIDE DIAMETER: 22.7)
-
2211360-14H00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2301547-0640A BOLTBOLT
-
2408322-0106A WASHERWASHER
-
2528117-14H00 LABEL, GEAR SHIFT PATTERNLABEL, GEAR SHIFT PATTERN
