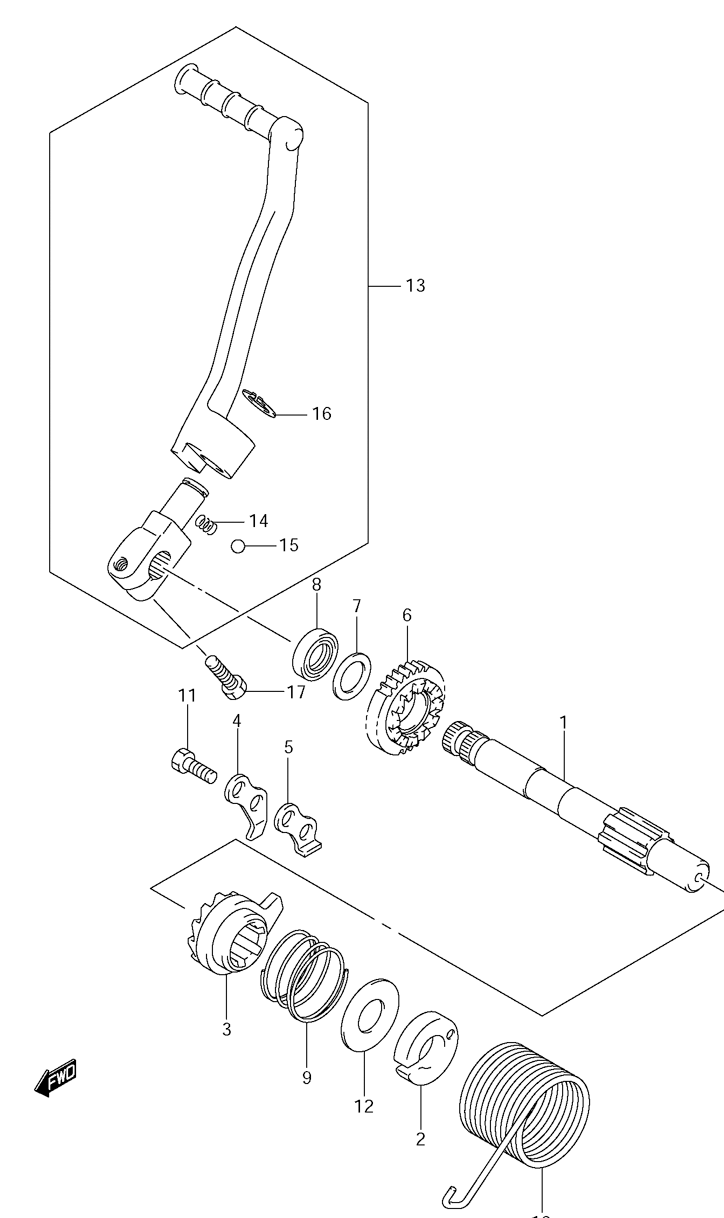

KICK STARTER для Suzuki DR-Z70K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    26211-09421 SHAFT, KICK STARTER
    SHAFT, KICK STARTER
  • 2
    26221-09400 GUIDE, KICK STARTER SPR
    GUIDE, KICK STARTER SPR
  • 3
    26231-09410 STARTER, KICK
    STARTER, KICK
  • 4
    26232-09401 GUIDE, KICK STARTER
    GUIDE, KICK STARTER
  • 5
    26233-09400 STOPPER, KICK STARTER
    STOPPER, KICK STARTER
  • 6
    26241-09402 GEAR, KICK STARTER DRIVE
    GEAR, KICK STARTER DRIVE
  • 7
    09181-14167 WASHER, KICK DRIVE GEAR
    WASHER, KICK DRIVE GEAR
  • 8
    09285-14001 SEAL, KICK STARTER SHAFT OIL
    SEAL, KICK STARTER SHAFT OIL
  • 9
    09440-30007 SPRING, KICK STARTER
    SPRING, KICK STARTER
  • 10
    09448-38004 SPRING, KICK SHAFT RETURN
    SPRING, KICK SHAFT RETURN
  • 11
    01547-0612A BOLT, KICK STARTER STOPPER
    BOLT, KICK STARTER STOPPER
  • 12
    08211-14321 PLATE, KICK STARTER SPR
    PLATE, KICK STARTER SPR
  • 13
    26300-14H00 LEVER ASSEMBLY, KICK STARTER
    LEVER ASSEMBLY, KICK STARTER
  • 14
    09440-05003 ...SPRING, KICK STARTER LEVER
    ...SPRING, KICK STARTER LEVER
  • 15
    06111-07004 ...BALL, KICK STARTER LEVER
    ...BALL, KICK STARTER LEVER
  • 16
    08331-3113A ...CIRCLIP
    ...CIRCLIP
  • 17
    01547-0620A BOLT, KICK STARTER LEVER
    BOLT, KICK STARTER LEVER
