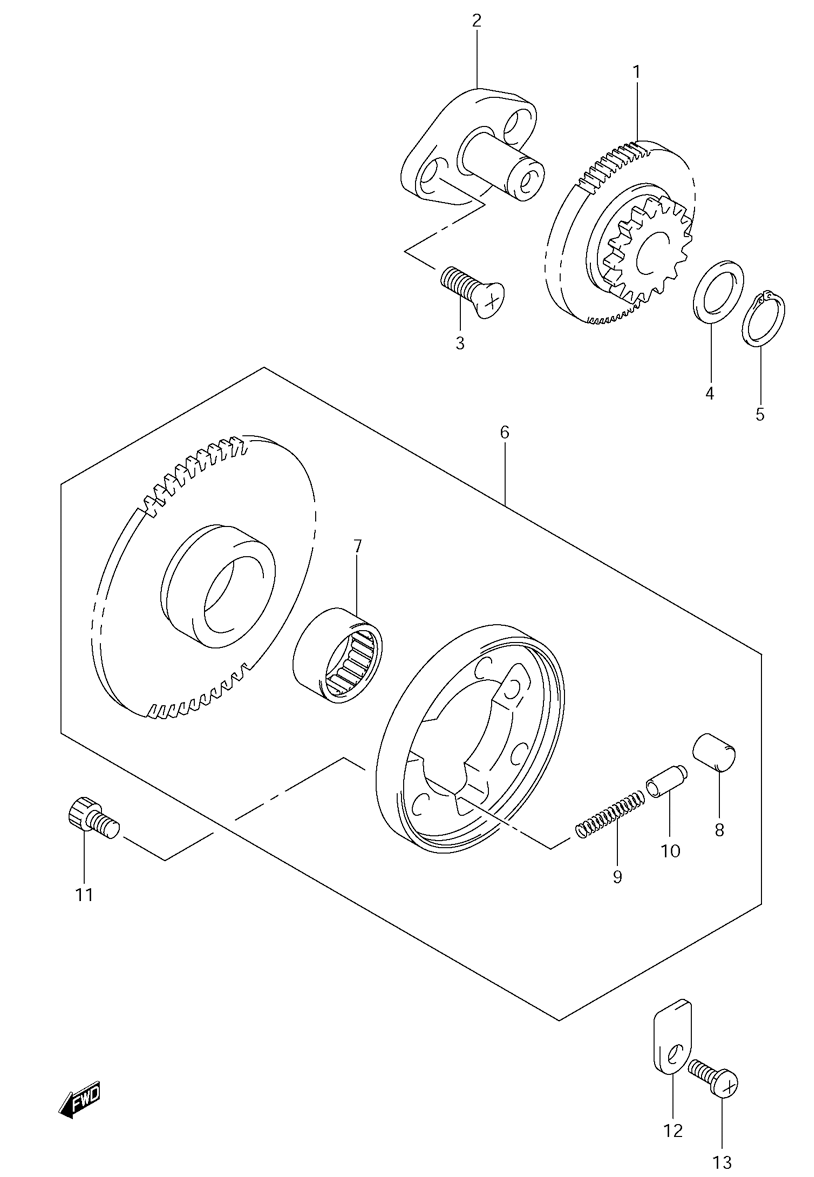

STARTER CLUTCH для Suzuki DR-Z70K9 - 2009 года выпуска
-
№АртикулНазвание
-
112611-09410 GEAR, STARTER IDLEGEAR, STARTER IDLE
-
212612-23F00 SHAFT, STARTER IDLE GEARSHAFT, STARTER IDLE GEAR
-
302122-0616A SCREWSCREW
-
409160-13010 WASHERWASHER
-
508331-31136 CIRCLIPCIRCLIP
-
612600-09854 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
709263-17025 ...BEARING...BEARING
-
809261-09002 ...ROLLER...ROLLER
-
909440-03004 ...SPRING...SPRING
-
1012633-05300 ...PIECE...PIECE
-
1109106-06075 BOLTBOLT
-
1212629-09410 PLATEPLATE
-
1302112-3612A SCREWSCREW
