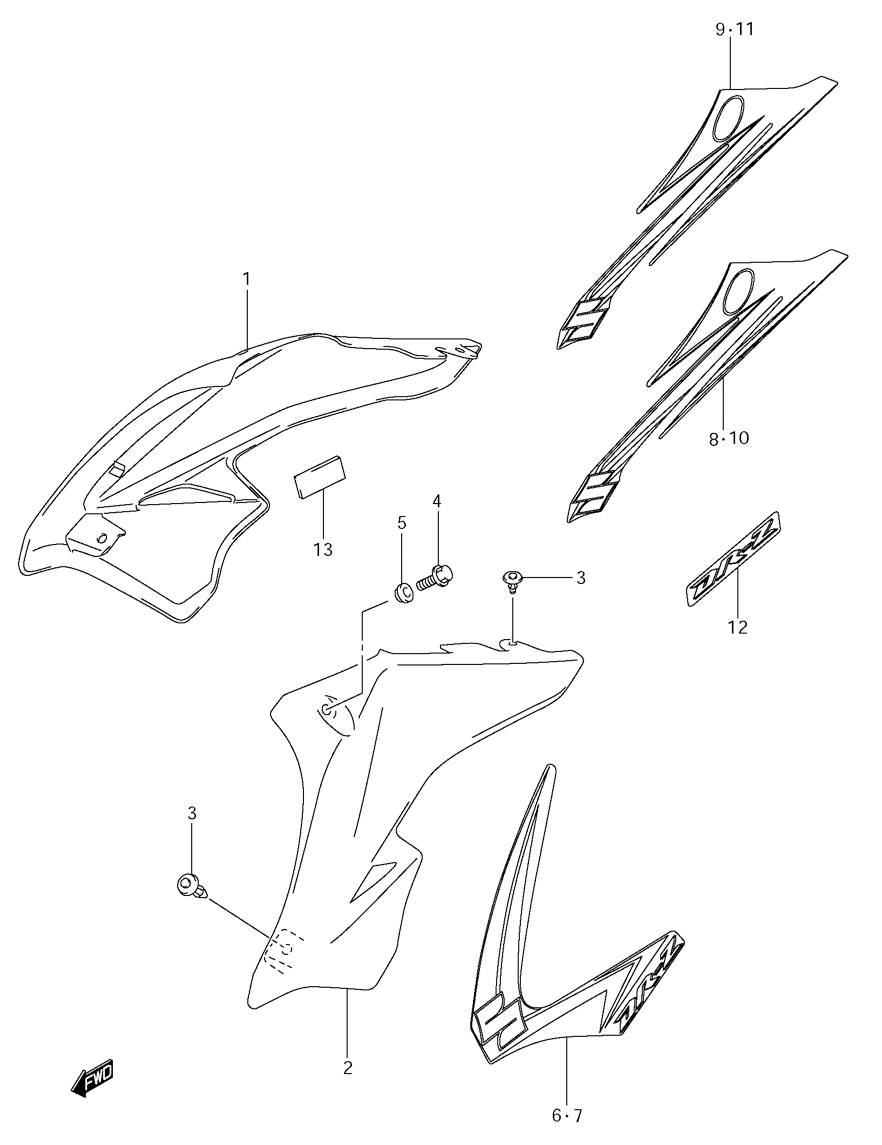

FUEL TANK - COVER для Suzuki DR-Z70K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    44271-14H00-019 COVER, FUEL TANK RIGHT HAND (BLACK) (019)
    COVER, FUEL TANK RIGHT HAND (BLACK) (019)
  • 1
    44271-14H00-YU1 COVER, FUEL TANK RIGHT HAND (YELLOW) (YU1)
    COVER, FUEL TANK RIGHT HAND (YELLOW) (YU1)
  • 2
    44281-14H00-019 COVER, FUEL TANK LEFT HAND (BLACK) (019)
    COVER, FUEL TANK LEFT HAND (BLACK) (019)
  • 2
    44281-14H00-YU1 COVER, FUEL TANK LEFT HAND (YELLOW) (YU1)
    COVER, FUEL TANK LEFT HAND (YELLOW) (YU1)
  • 3
    09409-08308-5ES CLIP (BLACK)
    CLIP (BLACK)
  • 4
    01547-0616A BOLT
    BOLT
  • 5
    09169-06081 WASHER
    WASHER
  • 8
    68115-14H20-GGL TAPE, COVER RIGHT HAND (GGL FOR 019)
    TAPE, COVER RIGHT HAND (GGL FOR 019)
  • 9
    68115-14H10-FYF TAPE, COVER RIGHT HAND (FYF FOR YU1)
    TAPE, COVER RIGHT HAND (FYF FOR YU1)
  • 10
    68116-14H20-GGL TAPE, COVER LEFT HAND (GGL FOR 019)
    TAPE, COVER LEFT HAND (GGL FOR 019)
  • 11
    68116-14H10-FYF TAPE, COVER LEFT HAND (FYF FOR YU1)
    TAPE, COVER LEFT HAND (FYF FOR YU1)
  • 12
    68111-14H00-GGM EMBLEM (GGM FOR 019)
    EMBLEM (GGM FOR 019)
  • 12
    68111-14H00-DCP EMBLEM (DCP FOR YU1)
    EMBLEM (DCP FOR YU1)
  • 13
    44294-14H00 CUSHION, RIGHT HAND
    CUSHION, RIGHT HAND
