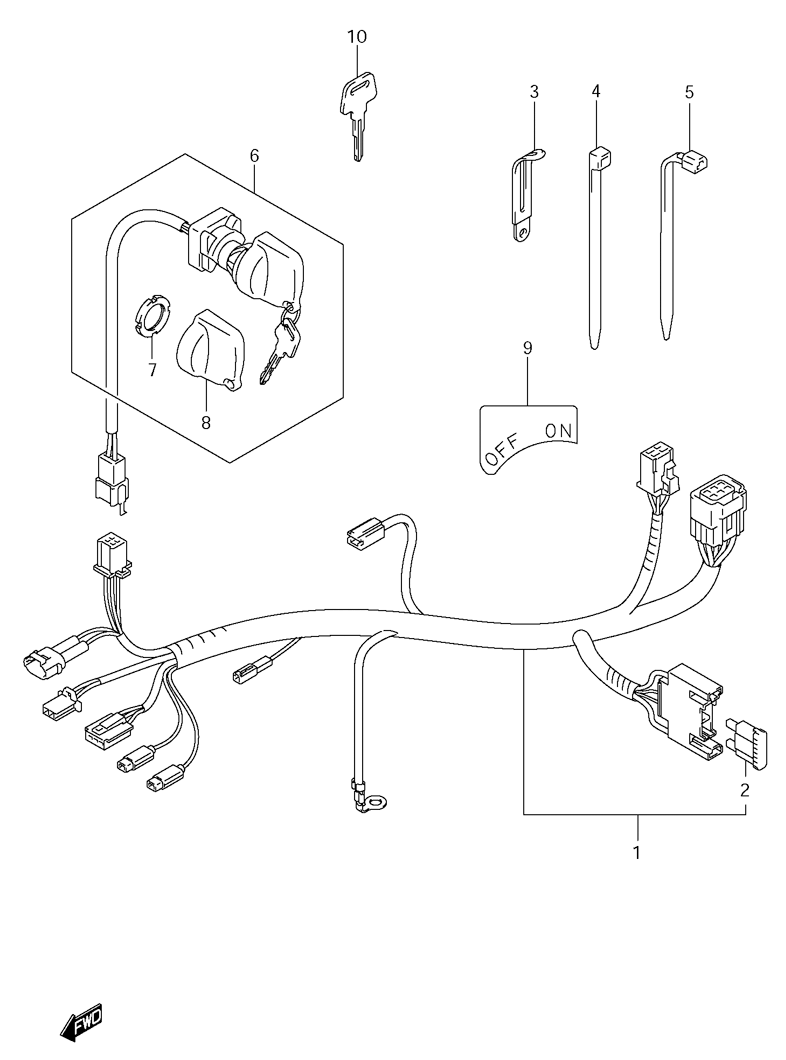

ELECTRICAL - WIRING HARNESS для Suzuki DR-Z70K9 - 2009 года выпуска`
-
№АртикулНазвание
-
136610-14H00 HARNESS, WIRINGHARNESS, WIRING
-
209481-10101 ...FUSE (10A)...FUSE (10A)
-
309404-06429 CLAMP (LENGTH: 45)CLAMP (LENGTH: 45)
-
409407-14407 CLAMP (LENGTH: 45)CLAMP (LENGTH: 45)
-
509407-25401 CLAMP (LENGTH: 235)CLAMP (LENGTH: 235)
-
637110-14H00 SWITCH ASSEMBLY, IGNITIONSWITCH ASSEMBLY, IGNITION
-
737112-24500 ...NUT...NUT
-
837142-19B00 ...MASCOT...MASCOT
-
937139-09D30 PLATE, CONTROL IDENTIFICATIONPLATE, CONTROL IDENTIFICATION
-
1037146-09D00 KEY, BLANK (TYPE:C) (OPTIONAL)KEY, BLANK (TYPE:C) (OPTIONAL)
-
1037146-09D10 KEY, BLANK (TYPE:D) (OPTIONAL)KEY, BLANK (TYPE:D) (OPTIONAL)
-
1037146-09D20 KEY, BLANK (TYPE:E) (OPTIONAL)KEY, BLANK (TYPE:E) (OPTIONAL)
-
1037146-09D30 KEY, BLANK (TYPE:F) (OPTIONAL)KEY, BLANK (TYPE:F) (OPTIONAL)
