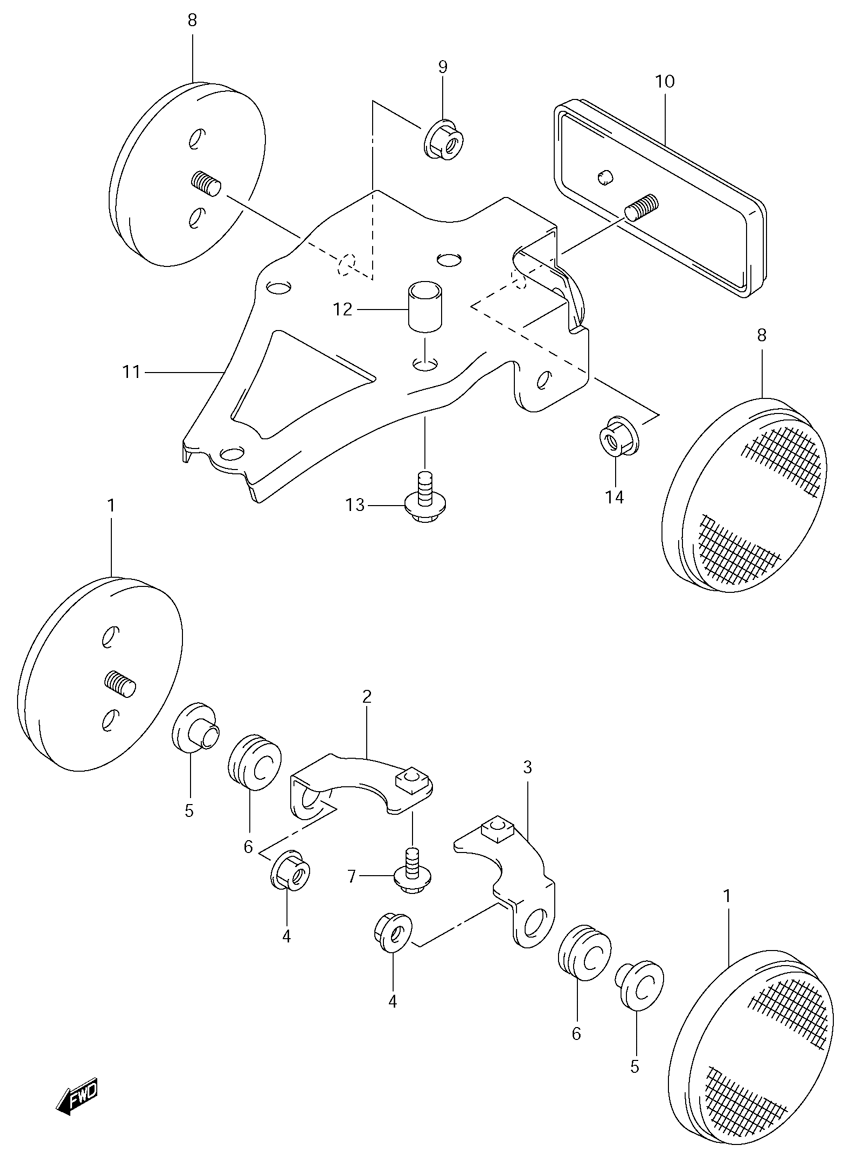

REFLECTOR (EXCEPT CALIF) для Suzuki DR-Z70K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    35950-14A20 REFLEX REFLECTOR ASSEMBLY, FR SIDE
    REFLEX REFLECTOR ASSEMBLY, FR SIDE
  • 2
    35956-14H00 BRACKET, FRONT SIDE RR, RIGHT
    BRACKET, FRONT SIDE RR, RIGHT
  • 3
    35957-14H00 BRACKET, FRONT SIDE RR, LEFT
    BRACKET, FRONT SIDE RR, LEFT
  • 4
    09159-05044 NUT, FRONT SIDE RR
    NUT, FRONT SIDE RR
  • 5
    09169-06063 WASHER, FRONT SIDE RR
    WASHER, FRONT SIDE RR
  • 6
    09320-08066 CUSHION, FRONT SIDE RR
    CUSHION, FRONT SIDE RR
  • 7
    02162-0612A BOLT, FRONT SIDE RR
    BOLT, FRONT SIDE RR
  • 8
    35970-14A20 REFLECTOR ASSEMBLY, REAR SIDE
    REFLECTOR ASSEMBLY, REAR SIDE
  • 9
    08316-1005B NUT, REAR SIDE RR
    NUT, REAR SIDE RR
  • 10
    35970-07F01 REFLECTOR ASSEMBLY, REAR
    REFLECTOR ASSEMBLY, REAR
  • 11
    35974-14H00 BRACKET, SIDE & REAR REFL
    BRACKET, SIDE & REAR REFL
  • 12
    09180-06291 SPACER (6.5X10X13)
    SPACER (6.5X10X13)
  • 13
    02162-0625B BOLT, REAR REFL BRACKET
    BOLT, REAR REFL BRACKET
  • 14
    08316-1005B NUT, REAR REAR
    NUT, REAR REAR
